Engine Controls Schematics

WARNING: This page is about a different variant/trim than selected.

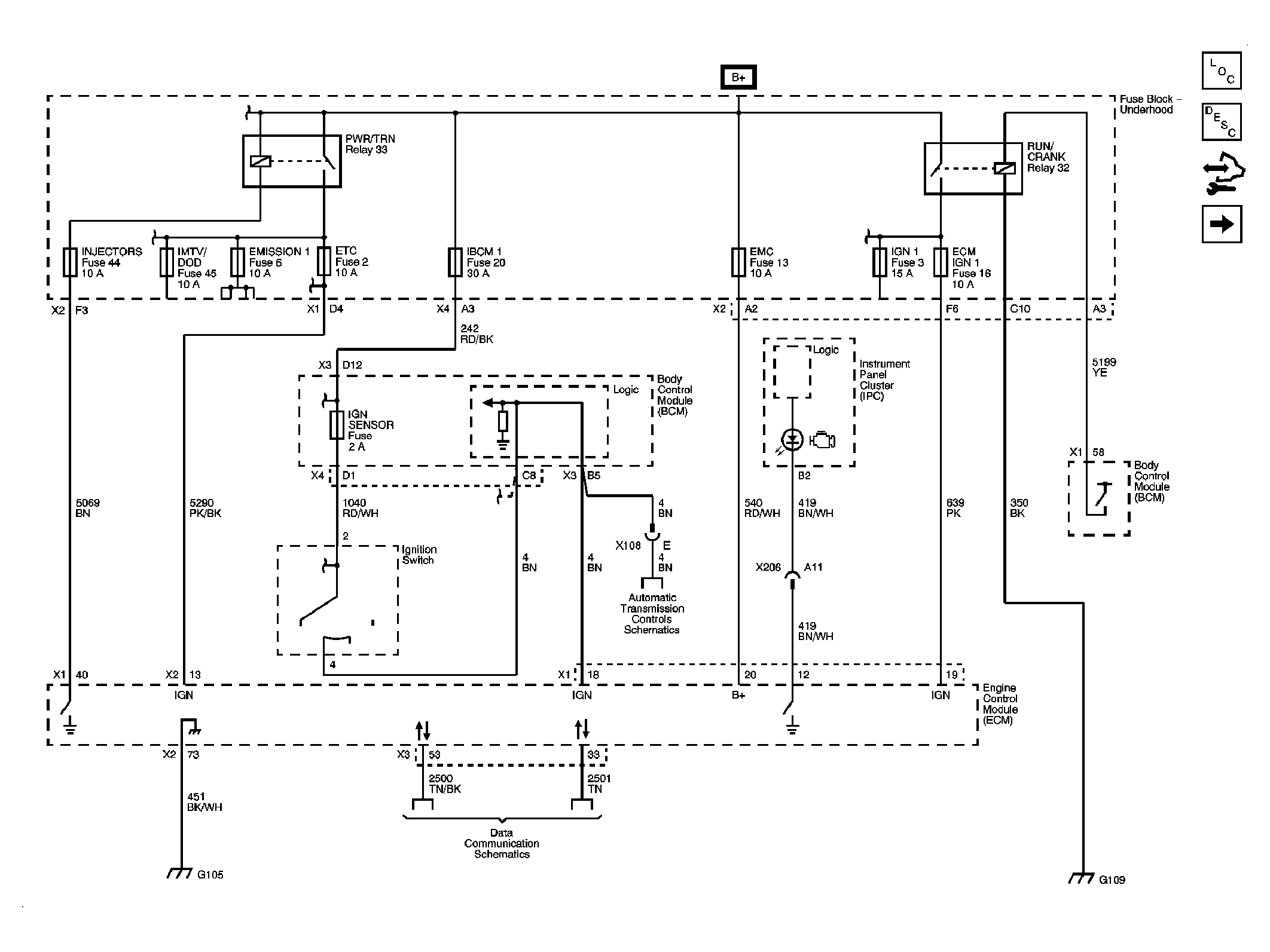

Fig 1: DLC, Ground, MIL and Power Schematic

Courtesy of GENERAL MOTORS CORP.

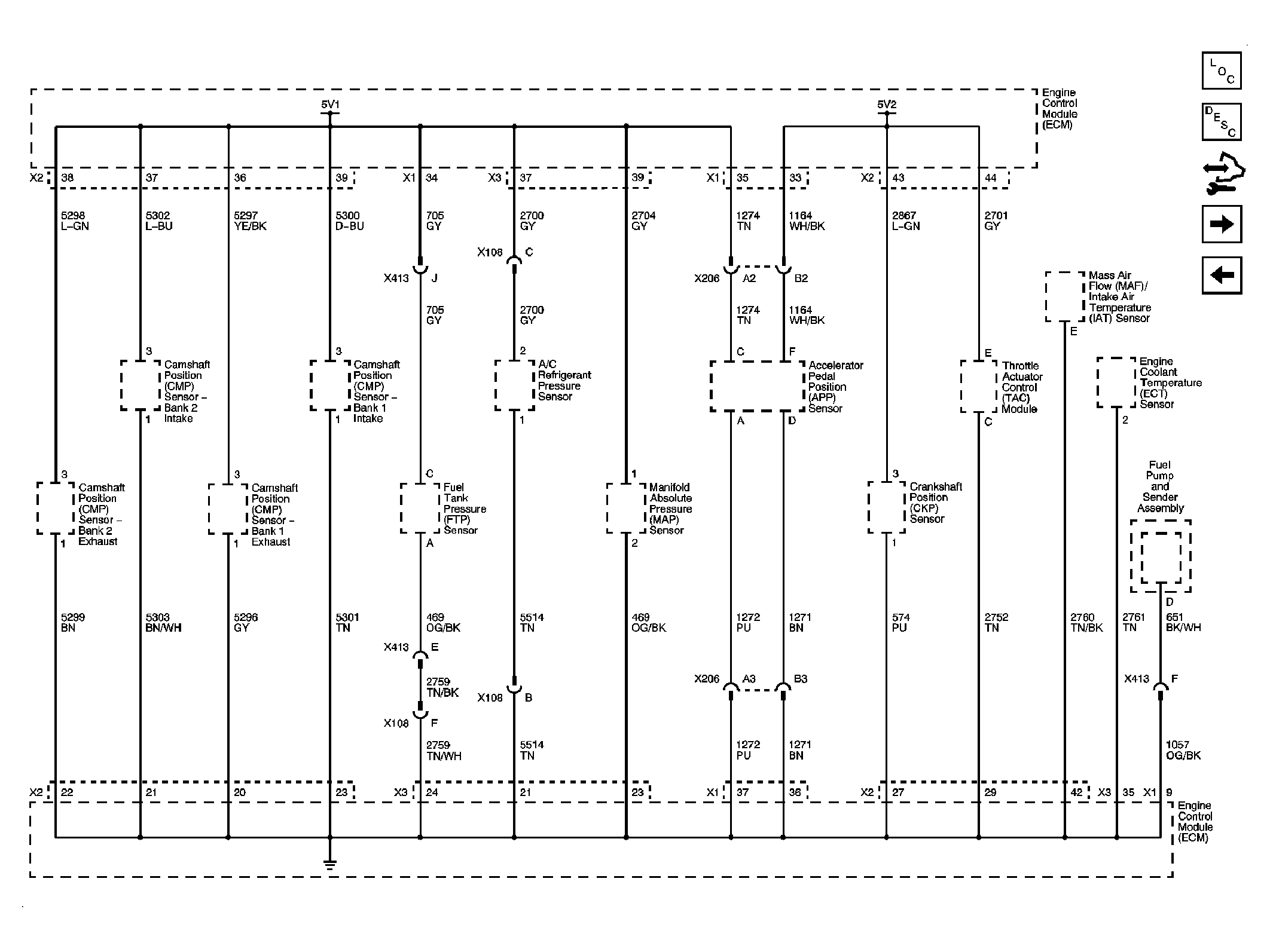

Fig 2: 5-Volt and Low References Schematic

Courtesy of GENERAL MOTORS CORP.

Fig 3: MAF, VSS and Extended Brake Travel Switch Schematic

Courtesy of GENERAL MOTORS CORP.

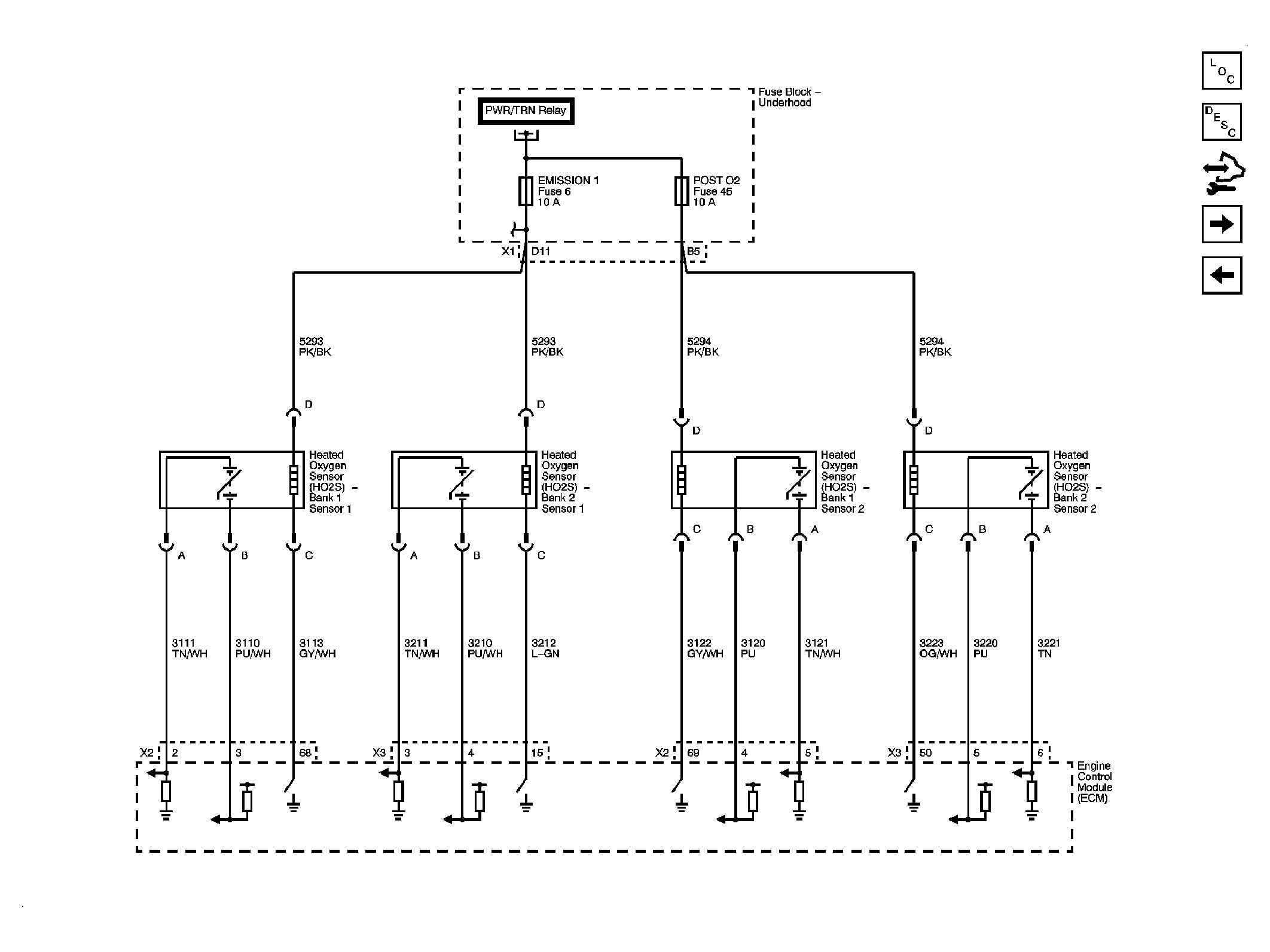

Fig 4: Heated Oxygen Sensors Schematic

Courtesy of GENERAL MOTORS CORP.

Fig 5: Electronic Throttle Controls Schematic

Courtesy of GENERAL MOTORS CORP.

Fig 6: Ignition System Schematic

Courtesy of GENERAL MOTORS CORP.

Fig 7: Bank 1 Ignition Coils Schematic

Courtesy of GENERAL MOTORS CORP.

Fig 8: Bank 2 Ignition Coils Schematic

Courtesy of GENERAL MOTORS CORP.

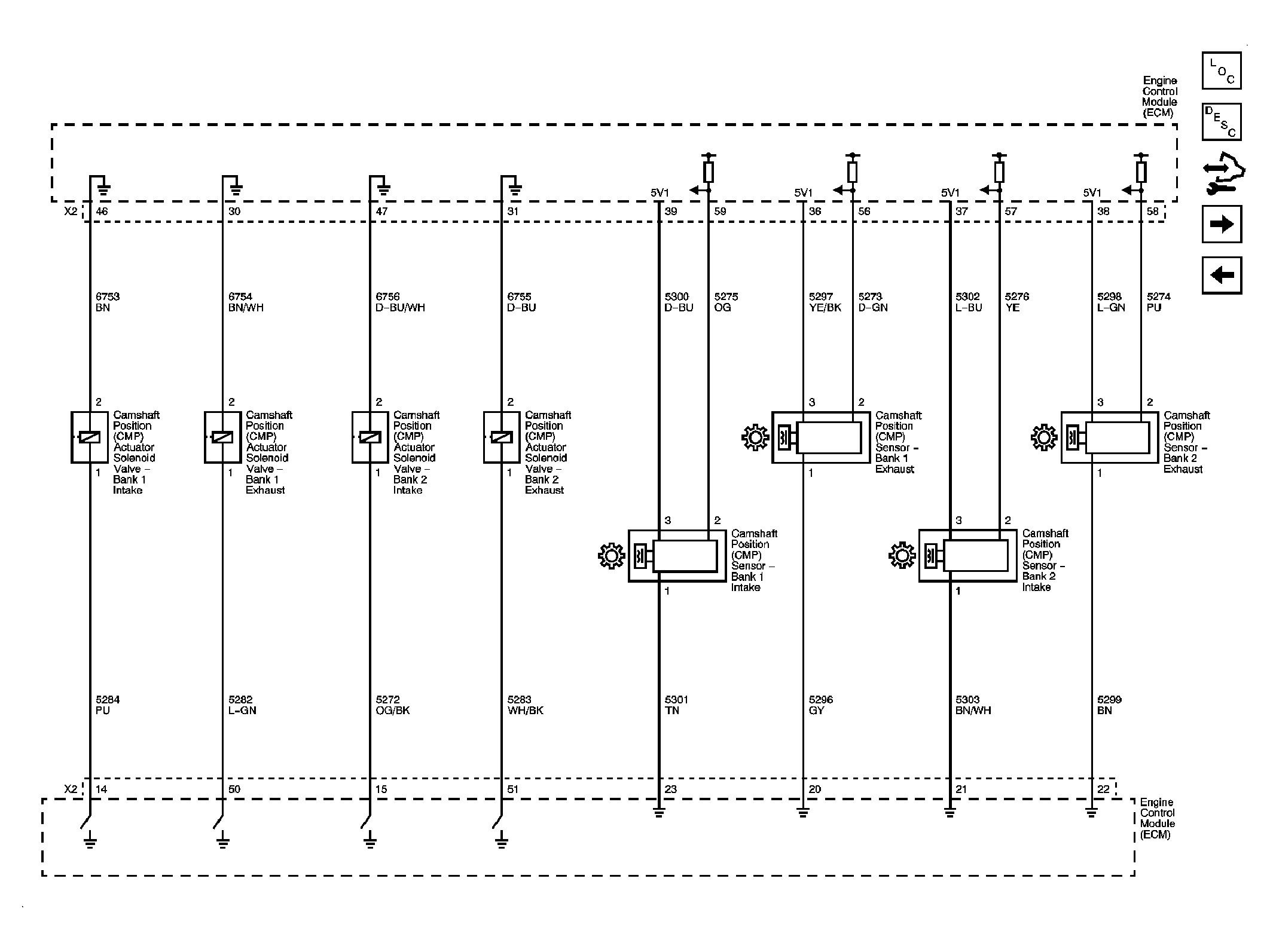

Fig 9: Camshaft Position (CMP) Sensors and Solenoids Schematic

Courtesy of GENERAL MOTORS CORP.

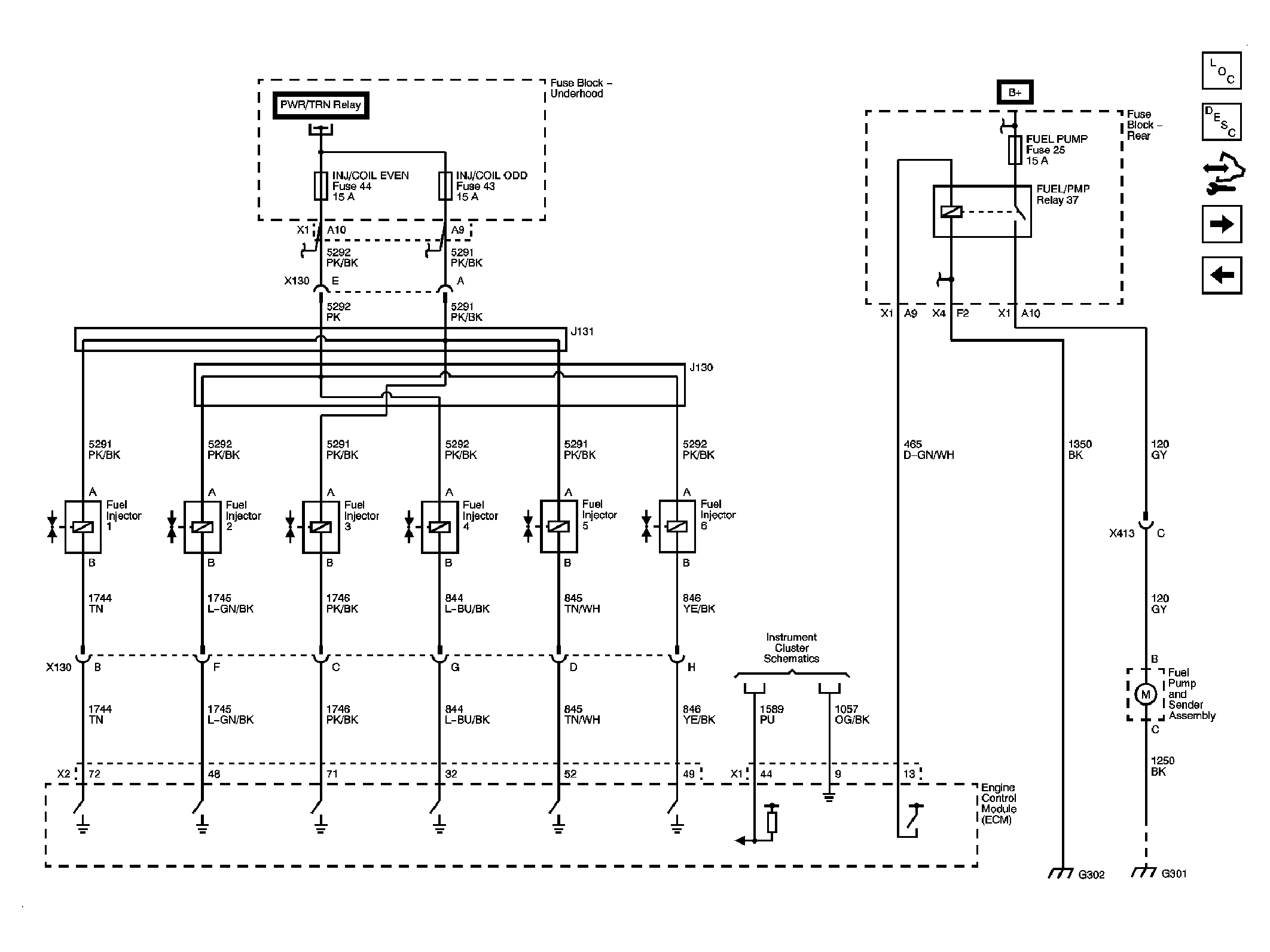

Fig 10: Fuel Injectors and Fuel Pump Schematic

Courtesy of GENERAL MOTORS CORP.

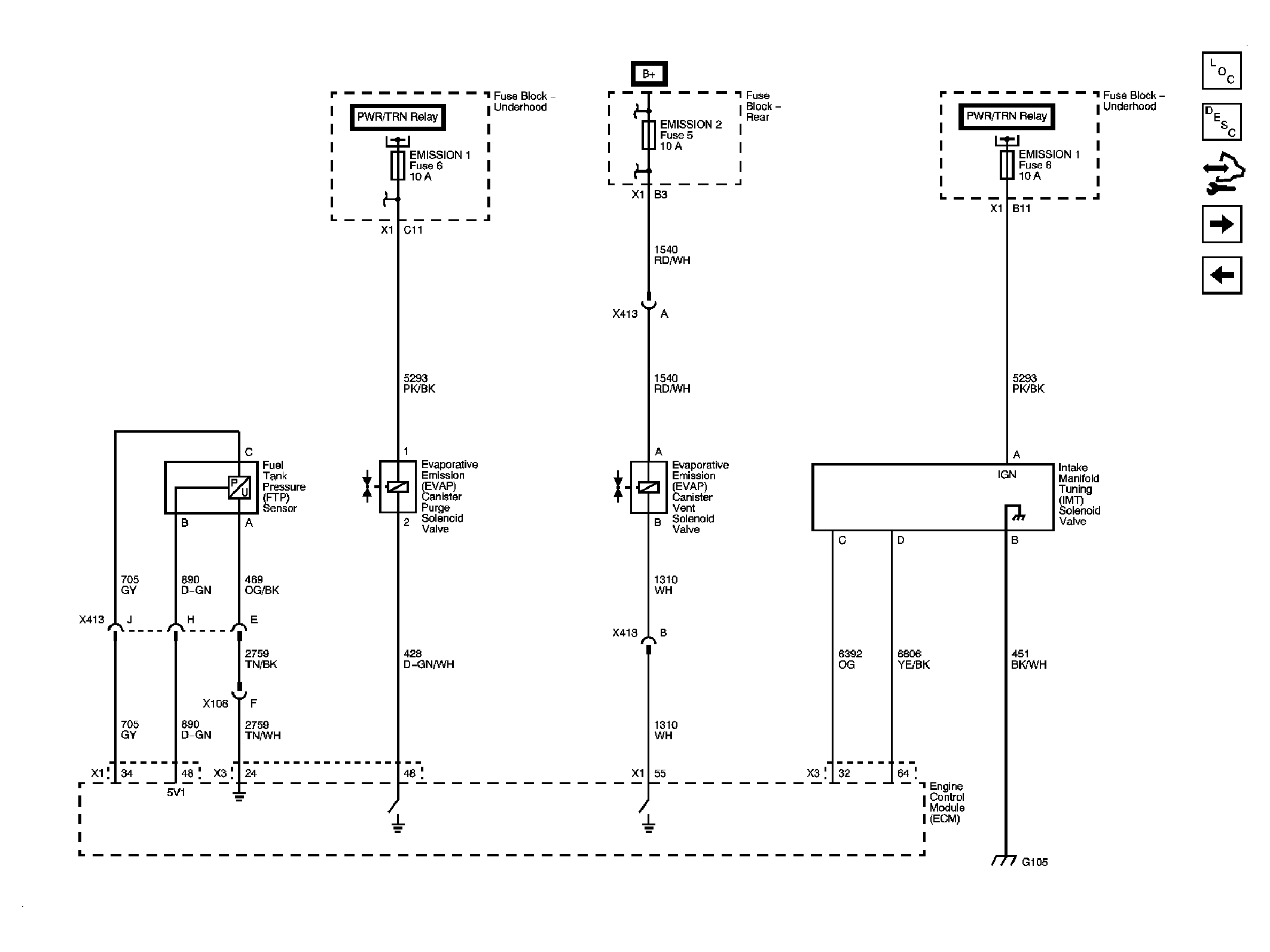

Fig 11: EVAP Controls and FTP Sensor Schematic

Courtesy of GENERAL MOTORS CORP.

Fig 12: Controlled/Monitored Subsystem References Schematic

Courtesy of GENERAL MOTORS CORP.
