Installation Procedure

WARNING: This page is about a different car, the 2010 Pontiac G6. However, it is still accessible from the selected car via links, so may be relevant.

Clean the reservoir with denatured alcohol.
Dry the reservoir with filtered, non-lubricated compressed air.

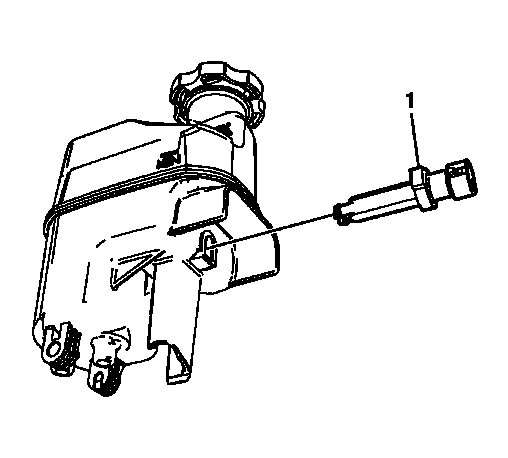

Fig 1: View Of Fluid Level Indicator Switch

Courtesy of GENERAL MOTORS CORP.

Install the fluid level indicator switch (1) to the master cylinder.
Ensure the locking tabs on the switch are fully engaged to the master cylinder reservoir.

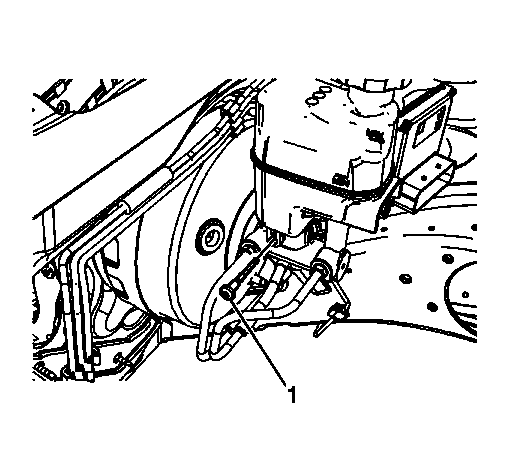

Fig 2: Identifying Reservoir

Courtesy of GENERAL MOTORS CORP.

Install the reservoir (1) to the master cylinder.

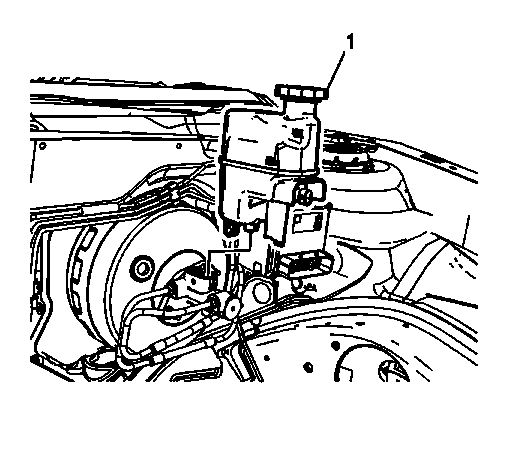

Fig 3: Identifying Master Cylinder Reservoir Bolt

Courtesy of GENERAL MOTORS CORP.

CAUTION: Refer to Fastener Caution .

Install the master cylinder reservoir bolt (1).
Tighten: Tighten the bolt to 8 N.m (71 lb in).
Connect the brake fluid level indicator switch electrical connector.
Fill the master cylinder reservoir. Refer to Master Cylinder Reservoir Filling .
