Installation Procedure

WARNING: This page is about a different car, the 2010 Pontiac G6. However, it is still accessible from the selected car via links, so may be relevant.
  1. Connect the headlamp bulb to the headlamp electrical connector.

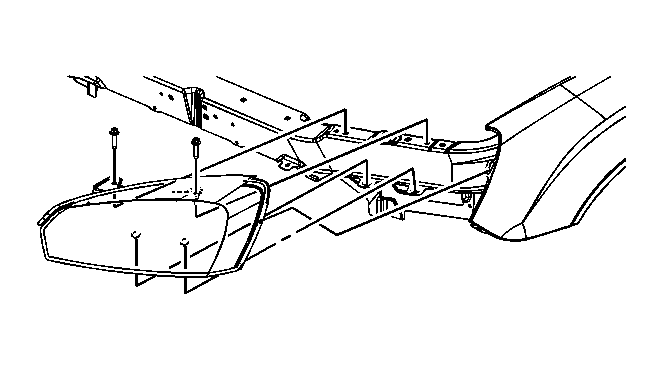

    2. Fig 1: View Of Bolts From Headlamp Assembly
    GM1215815Courtesy of GENERAL MOTORS CORP.
  2. Position the headlamp assembly to the vehicle.

    Press the headlamp downward to engage the locating tabs to the front edge of the fender.

    3. CAUTION: Refer to Fastener Caution .
  3. Install the bolts to the headlamp assembly.

    Tighten:  Tighten the bolts to 2 N.m (18 lb in).

  4. Install the push-in-retainers across the front fascia.
  5. Close the hood.
  6. Inspect the headlamp alignment. Adjust the headlamp alignment, if necessary. Refer to Headlamp Aiming .
