Antilock Brake System Schematics

WARNING: This page is about a different car, the 2010 Pontiac G6. However, it is still accessible from the selected car via links, so may be relevant.

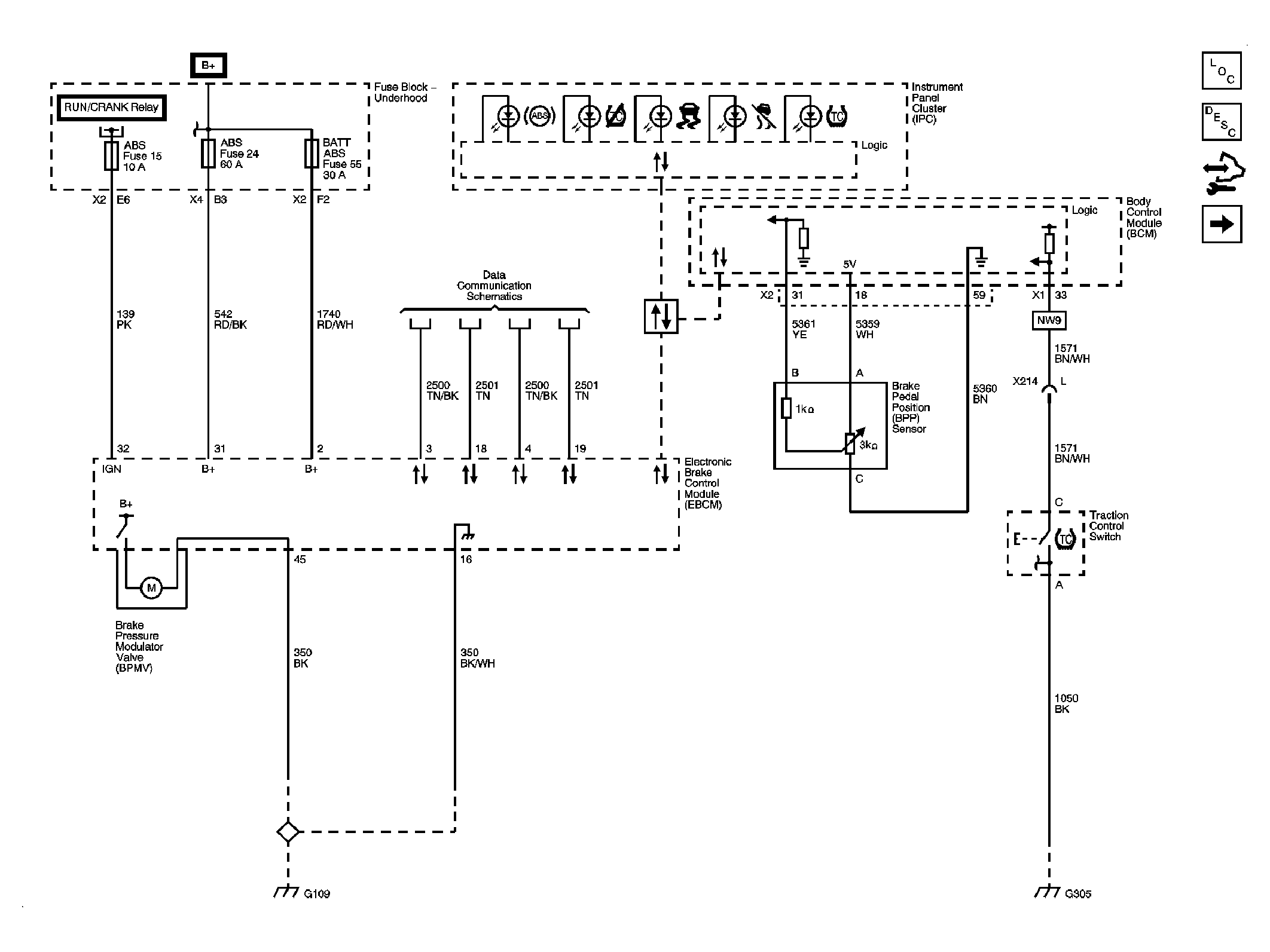

Fig 1: Power, Ground, DLC, Indicators, Traction Control Switch & Brake Pedal Position Sensor Circuit Schematic

Courtesy of GENERAL MOTORS CORP.

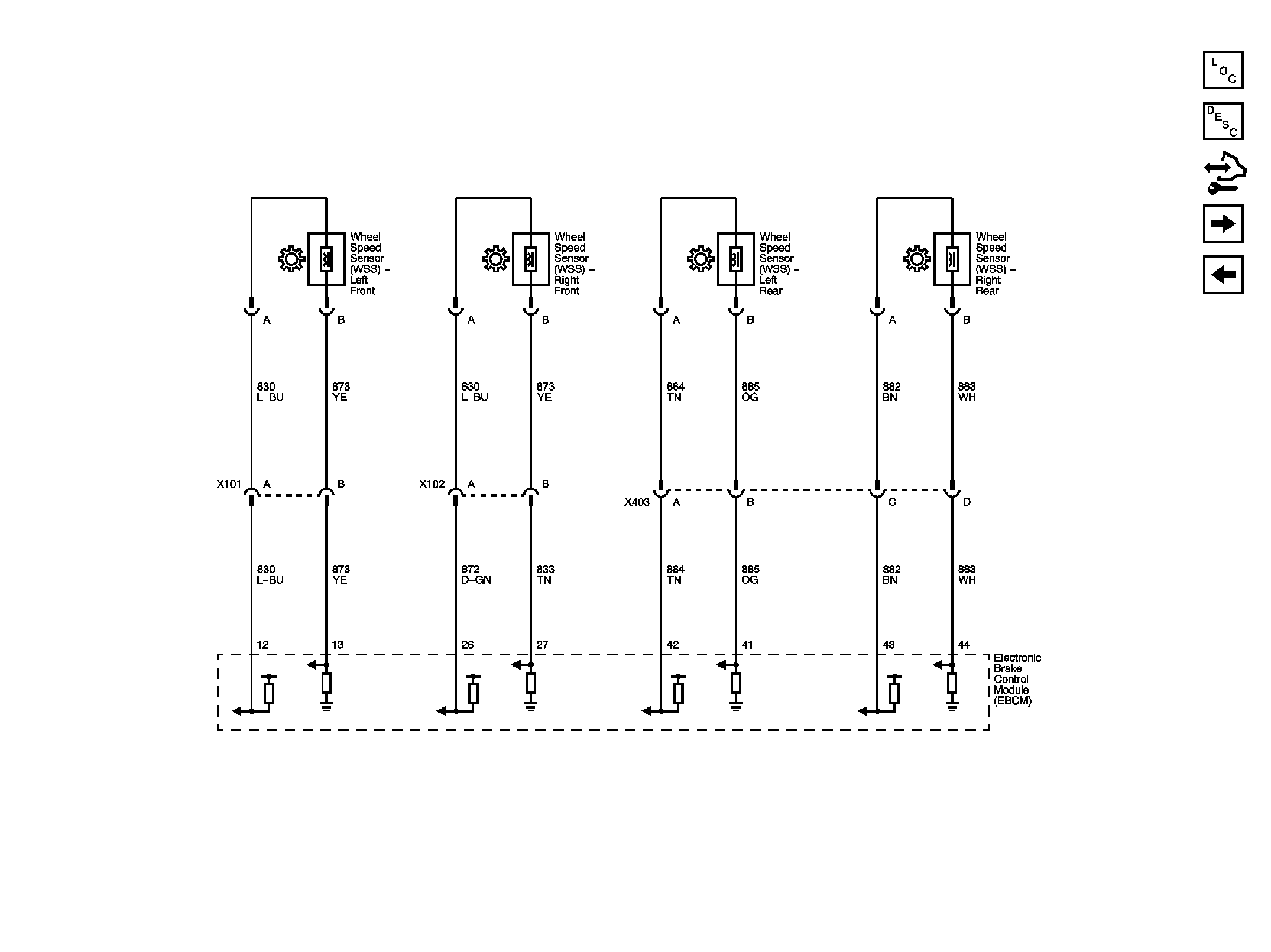

Fig 2: Wheel Speed Sensors Circuit Schematic

Courtesy of GENERAL MOTORS CORP.

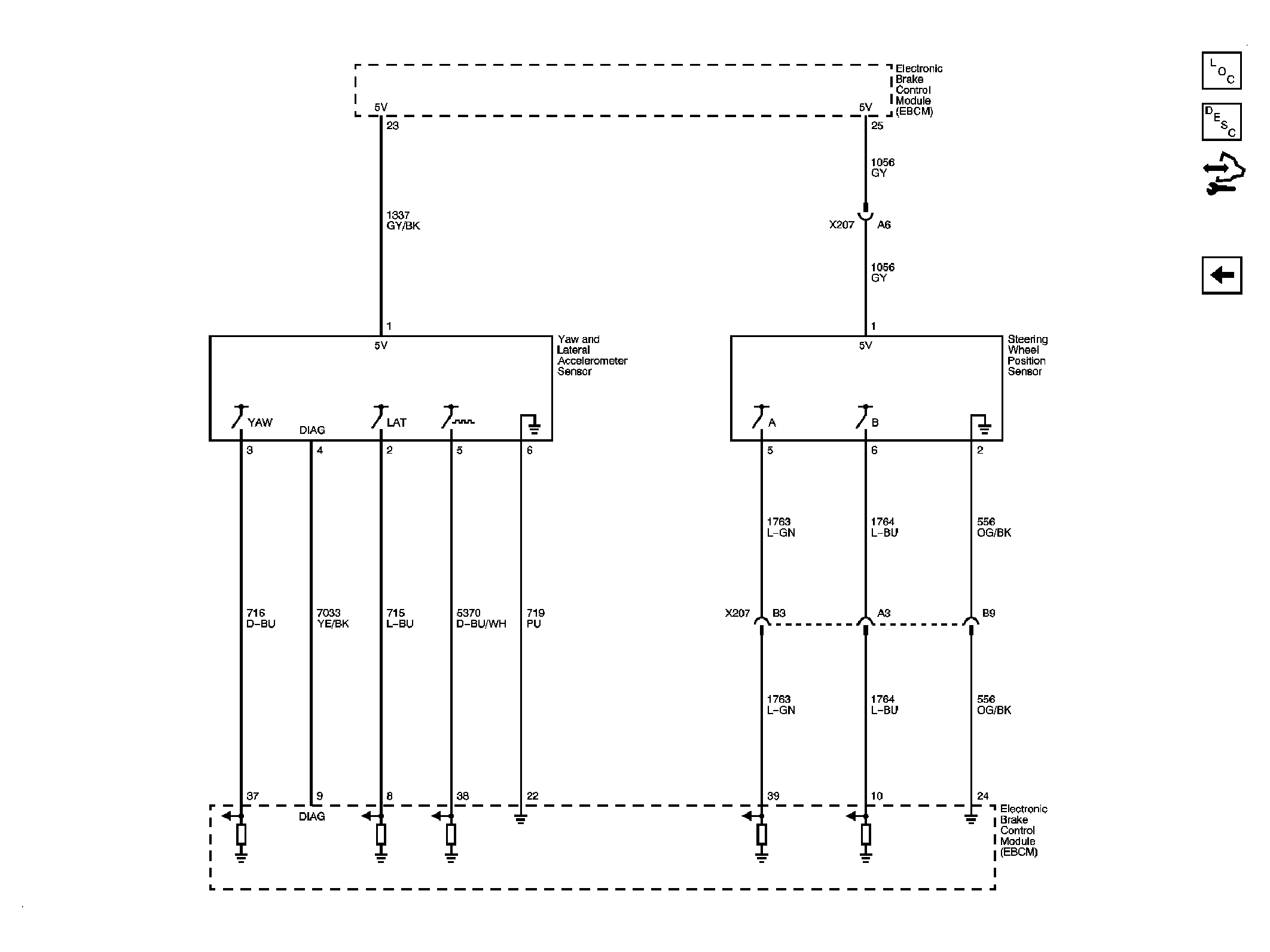

Fig 3: Yaw and Lateral Accelerometer Sensor & Steering Wheel Position Sensor Circuit Schematic

Courtesy of GENERAL MOTORS CORP.
