Body Control Module (BCM) - Cover
WARNING: This page is about a different car, the 2010 Pontiac G6. However, it is still accessible from the selected car via links, so may be relevant.

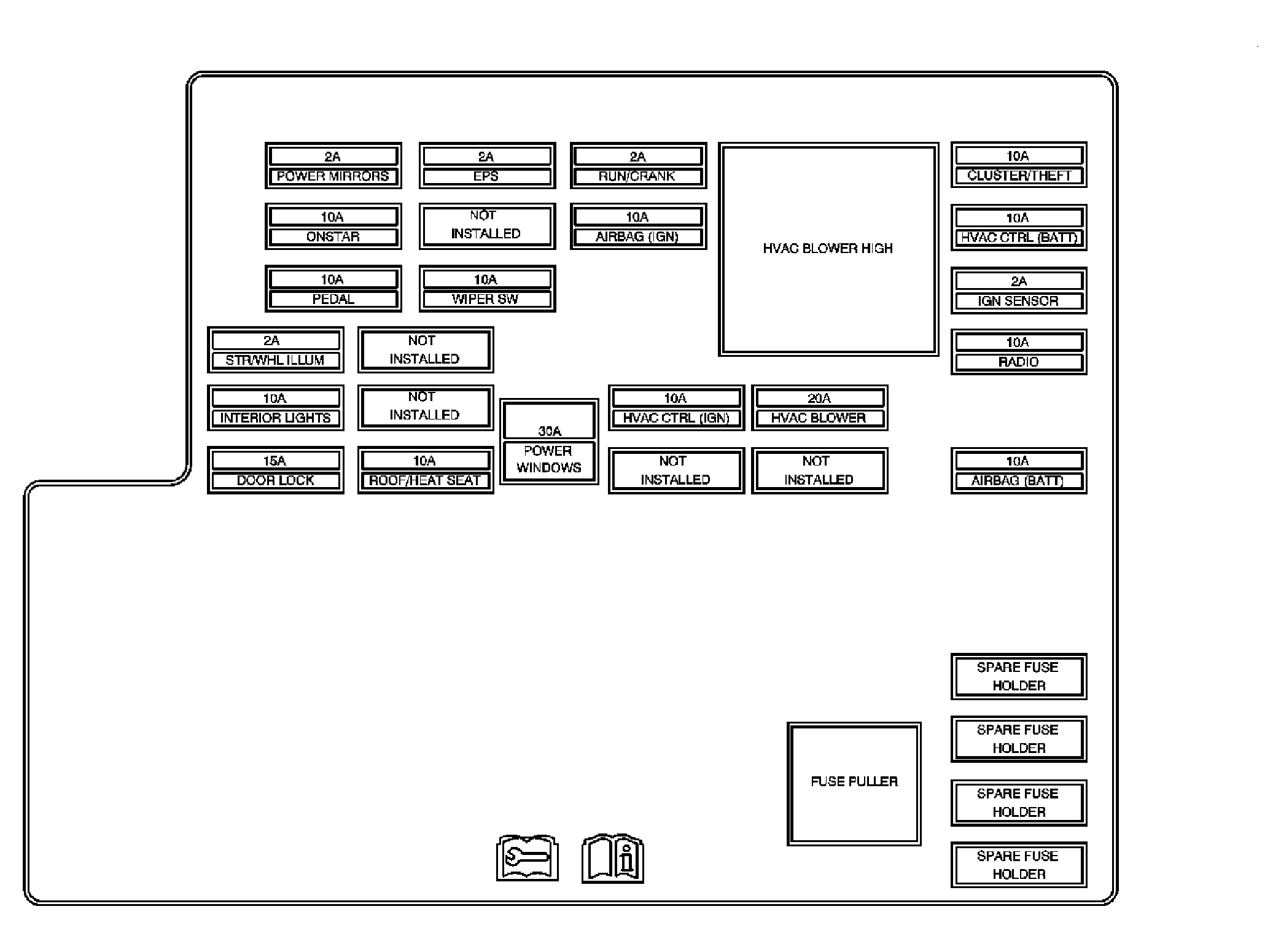

BODY CONTROL MODULE (BCM) FUSE AND RELAY IDENTIFICATION LEGEND
| Fuse And Relay Description | Rating | Circuits |
|---|---|---|
| AIRBAG (BATT) Fuse | 10A | Inflatable Restraint Sensing and Diagnostic Module (SDM) |
| AIRBAG (IGN) Fuse | 10A | Inflatable Restraint Sensing and Diagnostic Module (SDM) |
| CLUSTER/THEFT Fuse | 10A | Instrument Panel Cluster (IPC) and Theft Deterrent Control Module |
| DOOR LOCK Fuse | 15A | DOOR LOCK PCB, DOOR UNLOCK PCB, DR DOOR UNLOCK PCB Relays |
| EPS Fuse | 2A | Power Steering Control Module |
| HVAC BLOWER Fuse | 20A | HVAC Control Module |
| HVAC BLOWER HIGH Relay | - | Blower Motor |
| HVAC CTRL (BATT) Fuse | 10A | Data Link Connector (DLC) and HVAC Control Module |
| HVAC CTRL (IGN) Fuse | 10A | HVAC Control Module |
| IGN SENSOR Fuse | 2A | Ignition Switch |
| INTERIOR LIGHTS Fuse | 10A | Body Control Module (BCM) Logic |
| ONSTAR Fuse | 10A | Vehicle Communication Interface Module (VCIM) (UE1) |
| PEDAL Fuse | 10A | Adjustable Pedals Module (JF4) and Adjustable Pedals Position Switch (JF4) |
| POWER MIRRORS Fuse | 2A | Outside Rearview Mirror Switch |
| POWER WINDOWS Fuse | 30A | Window Switch - Driver and Window Switch - Passenger |
| RADIO Fuse | 10A | Radio |
| ROOF/HEAT SEAT Fuse | 10A | Heated Seat Control Module - Driver (KA1), Heated Seat Control Module - Passenger (KA1), Heated Seat Switch - Driver (KA1), Heated Seat Switch - Passenger (KA1) and Sunroof Control Module (CF5) |
| RUN/CRANK Fuse | 2A | Automatic Transmission Shift Lever, Steering Wheel Control Switch - Left, On/Off Switch |
| STR/WHL ILLUM Fuse | 2A | Steering Wheel Control Switch - Left, Steering Wheel Control Switch - Right |
| WIPER SW Fuse | 10A | Windshield Wiper/Washer Switch |
| Note: Relays listed below are non-serviceable Printed Circuit Board (PCB) relays and are internal to the block. | ||
| DOOR LOCK PCB Relay | - | Door Latch - Driver, Door Latch - Passenger, Door Latch - Left Rear, Door Latch - Right Rear |
| DOOR UNLOCK PCB Relay | - | Door Latch - Driver, Door Latch - Passenger and Door Latch - LR |
| DR DOOR UNLOCK PCB Relay | - | Door Latch - Driver |
| INTERIOR LIGHTS PCB Relay | - | Courtesy Lamp, Dome/Reading Lamp, Rear Compartment Courtesy Lamp, Vanity Mirror Lamp - Left and Vanity Mirror Lamp - Right |
