Front Position Lamp Bulb Replacement

WARNING: This page is about a different car, the 2010 Cadillac CTS. However, it is still accessible from the selected car via links, so may be relevant.

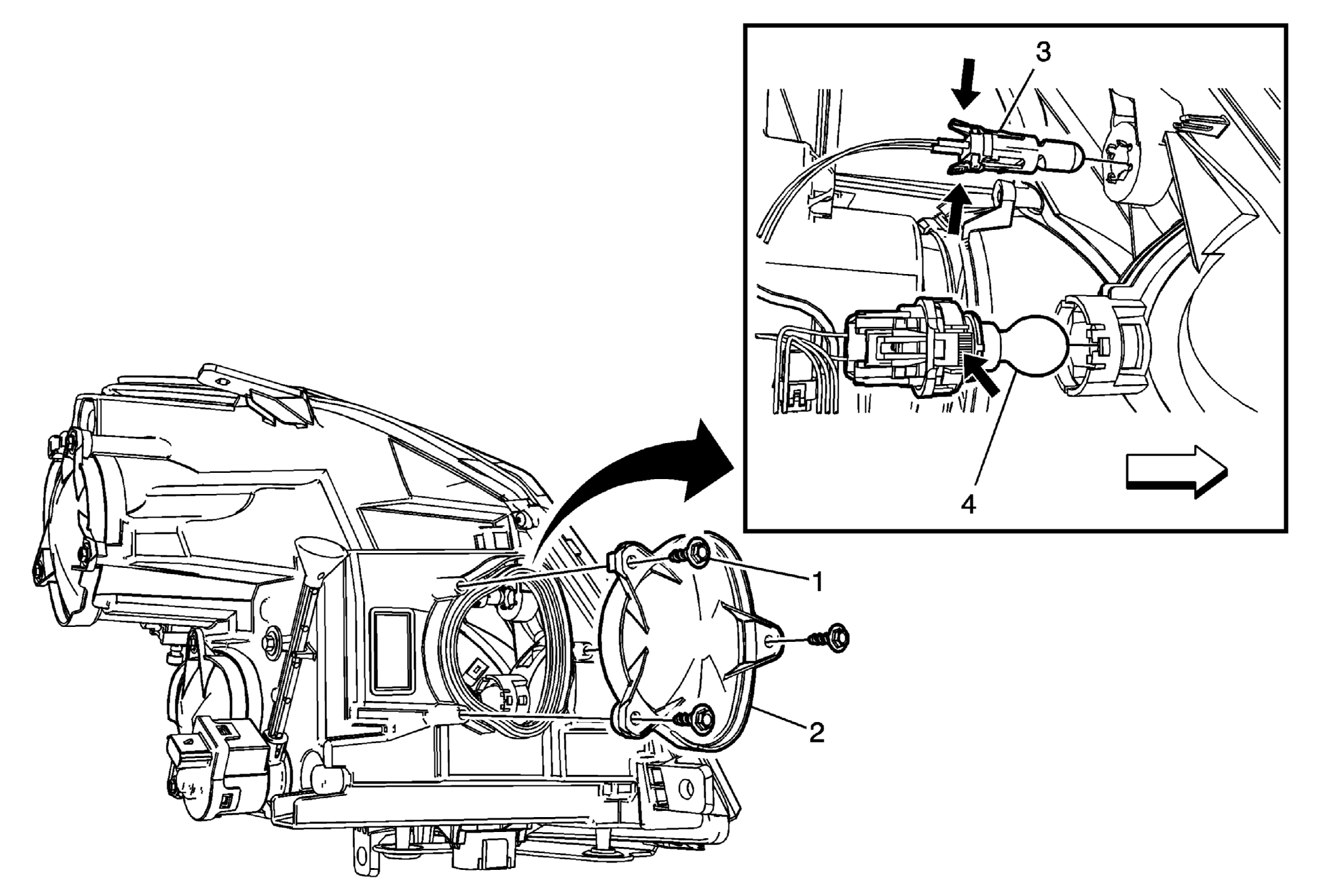

Fig 1: Identifying Position Lamp Bulb

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
Preliminary Procedure: Remove the headlamp capsule. Refer to Headlamp Capsule Replacement .
1	Accessory Cap Screw (Qty: 3) Tip: Hand tighten only, the accessory cap screws.
2	Accessory Cap Tip: Inspect and ensure the accessory cap seal is properly seated prior to installing the accessory cap cover.
3	Position Lamp Bulb Socket WARNING: Refer to Halogen Bulb Warning . Procedure Pinch the tabs on the position lamp bulb socket and pull the bulb socket from the headlamp assembly. Remove and replace the bulb.
4	Park Signal Lamp Bulb Procedure Pinch the tabs on the bulb socket and pull the bulb socket from the headlamp assembly. Disconnect the electrical connector from the bulb socket. Remove and replace the bulb.
