Installation Procedure

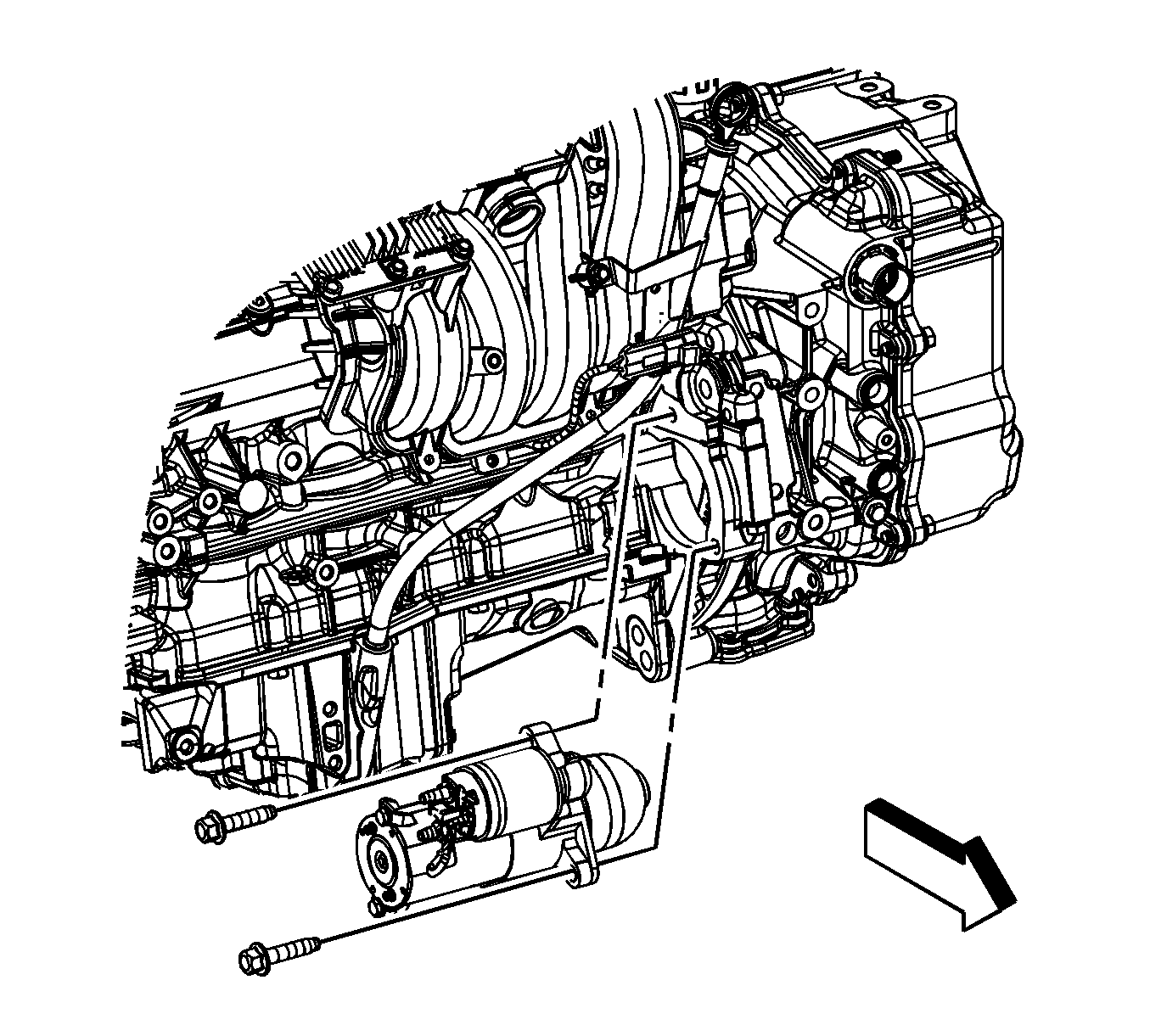

Fig 1: View Of Starter Motor & Bolts

Courtesy of GENERAL MOTORS CORP.

NOTE: Refer to Fastener Notice .

Install the starter motor bolts.
Tighten: Tighten the bolts to 40 N.m (30 lb ft).

Fig 2: View Of Negative Cable Ground Terminal Lead

Courtesy of GENERAL MOTORS CORP.

Install the engine harness terminal (4) and positive battery cable (3) to the starter solenoid.
Install the positive battery cable nut (2) to the starter solenoid.
Tighten: Tighten the nut to 10 N.m (89 lb in).

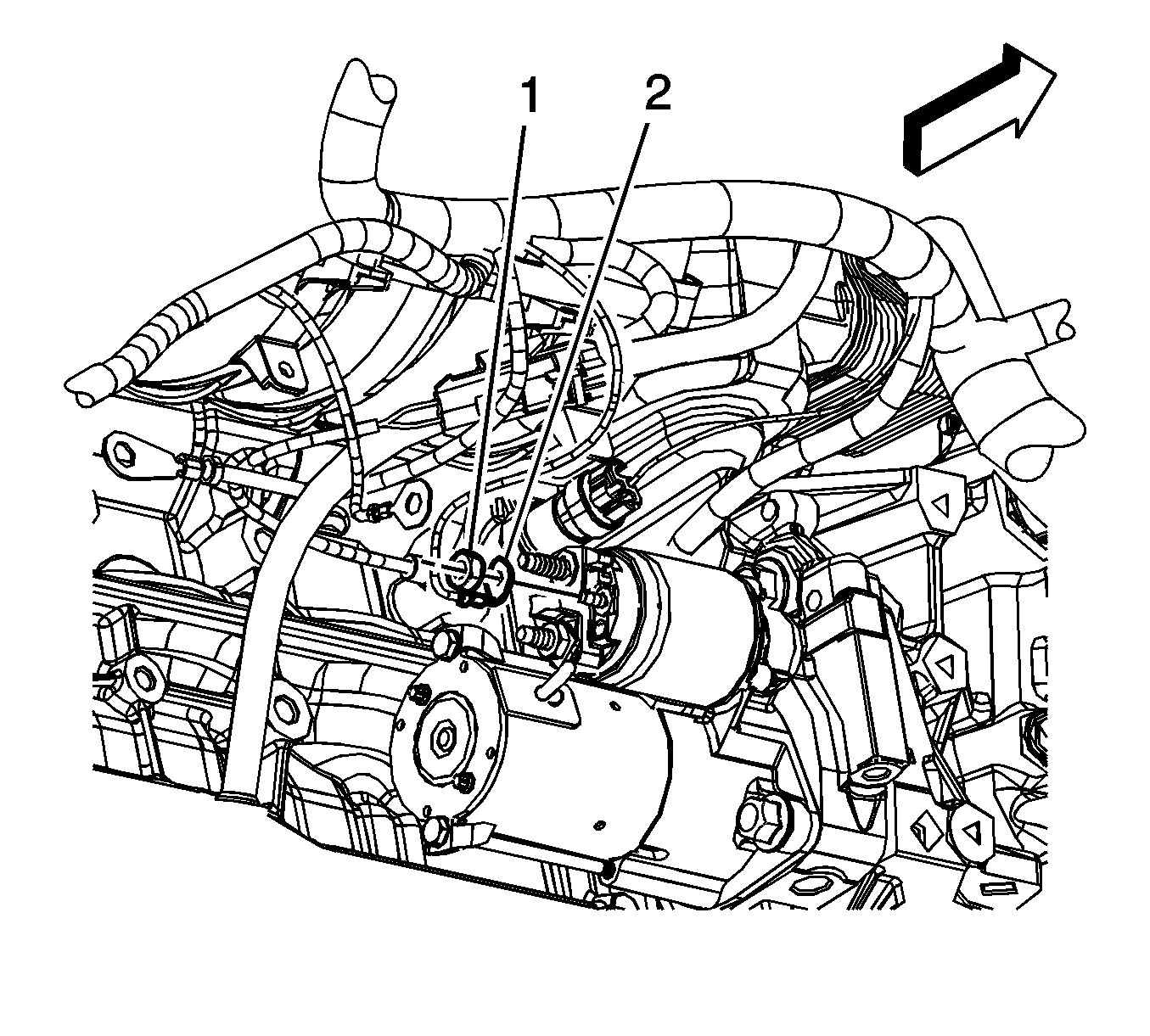

Fig 3: Identifying Starter Solenoid Engine Harness & Nut

Courtesy of GENERAL MOTORS CORP.

Install the engine harness lead (2) to the starter.
Install the "S" terminal nut (1) to the starter solenoid.
Tighten: Tighten the "S" terminal nut to 3 N.m (27 lb in).
Lower the vehicle.
Connect the negative battery cable. Refer to Battery Negative Cable Disconnection and Connection .
