Installation Procedure

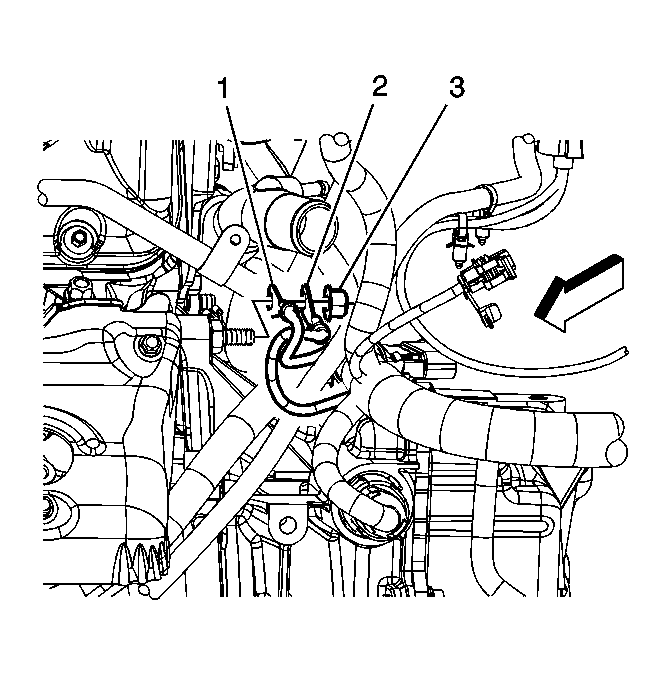

    Fig 1: View Of Engine Harness And Negative Battery Cable Leads
    GM1588426Courtesy of GENERAL MOTORS CORP.
  1. Install the ground cable.
  2. Install the engine harness (2) and negative battery cable (1) leads.
  3. Install the front transmission mount. Refer to Transmission Front Mount Replacement .
    NOTE: Refer to Fastener Notice .
  4. Install the battery cable/ground cable lead nut (3) to the transmission stud.

    Tighten:  Tighten the nut to 25 N.m (18 lb ft).

  5. Install the lower closeout panel. Refer to Radiator Air Side Baffle and Deflector Replacement .
  6. Lower the vehicle.
  7. Install the negative cable to the retainers.
  8. Install the tape holding the positive cable to the negative cable.

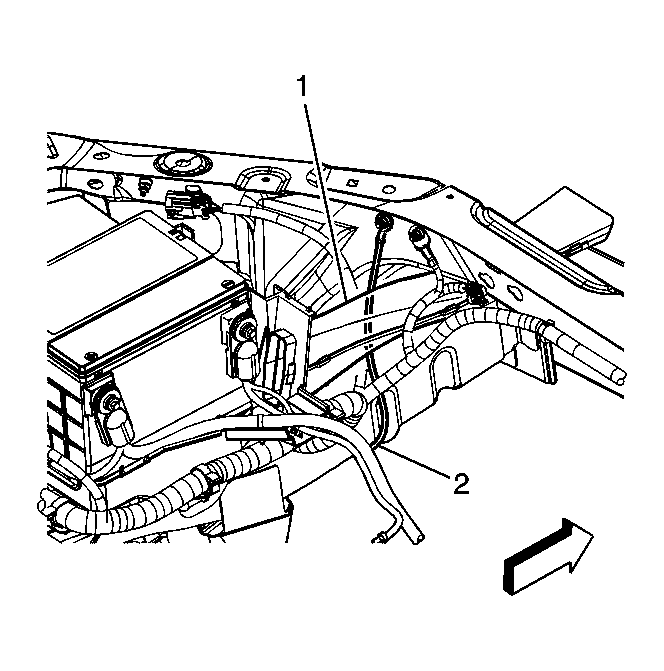

    9. Fig 2: Identifying Negative Cable Ground Terminal Lead
    GM1588421Courtesy of GENERAL MOTORS CORP.
  9. Route the negative cable ground terminal lead (2) under the air duct (1).
    10. Fig 3: View Of Battery Cables
    GM1578419Courtesy of GENERAL MOTORS CORP.
  10. Install the negative battery cable clip (3) to the battery tray.
  11. Install the negative cable ground terminal nut at the tie bar (1).

    Tighten:  Tighten the nut to 10 N.m (89 lb in).

  12. Connect the negative battery cable. Refer to Battery Negative Cable Disconnection and Connection .
