Installation Procedure

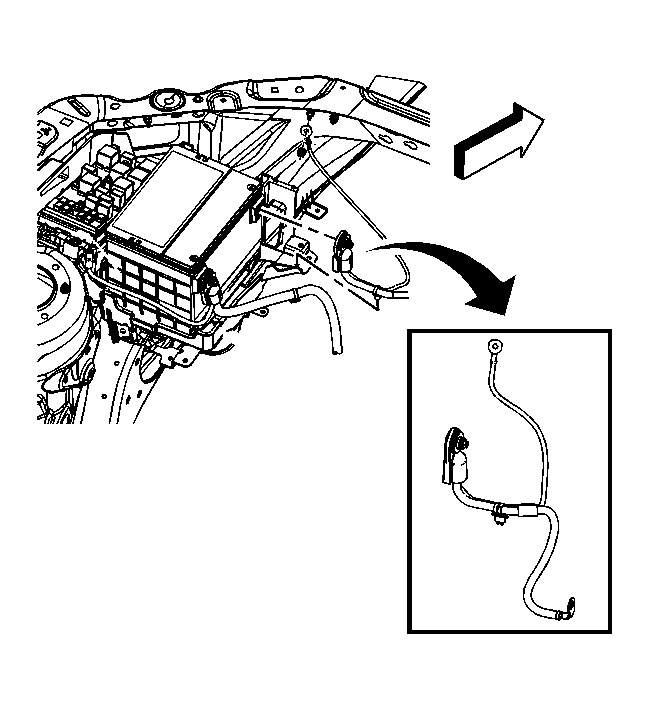

    Fig 1: Locating Negative Battery Cable & Engine Harness
    GM1832077Courtesy of GENERAL MOTORS CORP.
  1. Position the negative battery cable between the battery and the engine block.

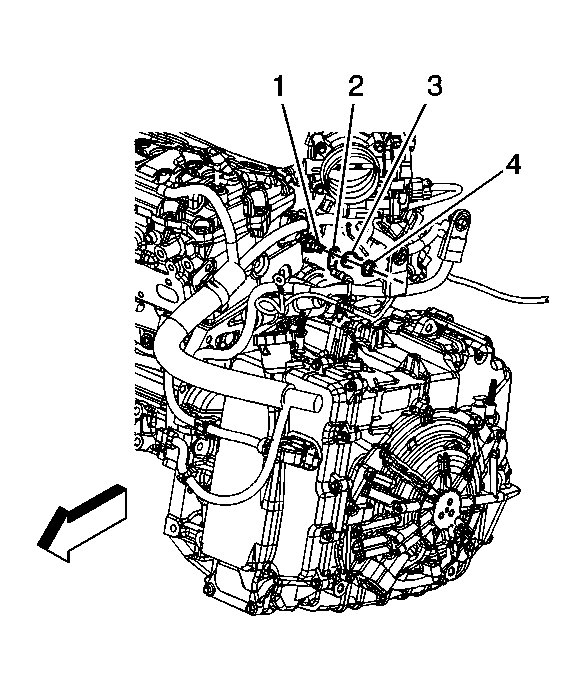

    2. Fig 2: Identifying Engine Harness & Battery Cable Ground Leads
    GM1831712Courtesy of GENERAL MOTORS CORP.
  2. Install the negative battery cable ground (2) stud/nut (1).
  3. Install the engine harness ground lead (3).
    4. NOTE: Refer to Fastener Notice .
  4. Install the retaining nut for the ground wire (4).

    Tighten:  Tighten the nut to 25 N.m (18 lb ft).

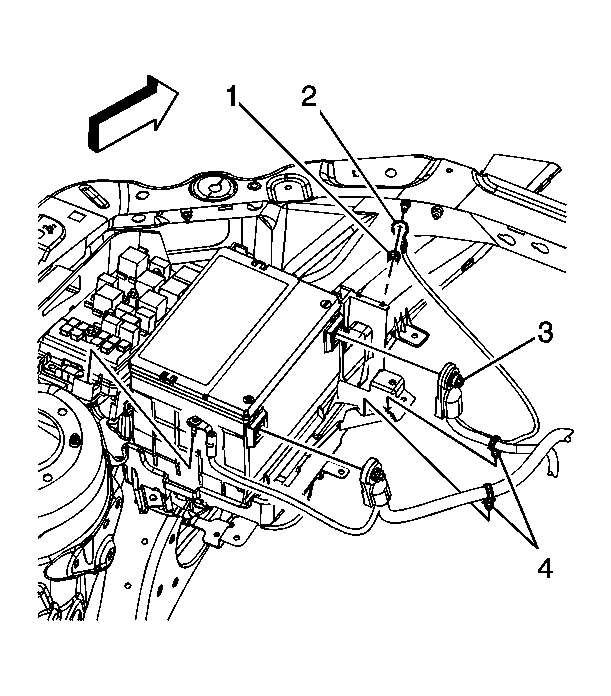

    5. Fig 3: View Of Battery Cables
    GM1831761Courtesy of GENERAL MOTORS CORP.
  5. Install the retaining clips for the battery cables (4).
  6. Install the ground wire (2).
  7. Install the retaining nut (1) for the ground wire (2).
  8. Connect the negative battery (3). Refer to Battery Negative Cable Disconnection and Connection .

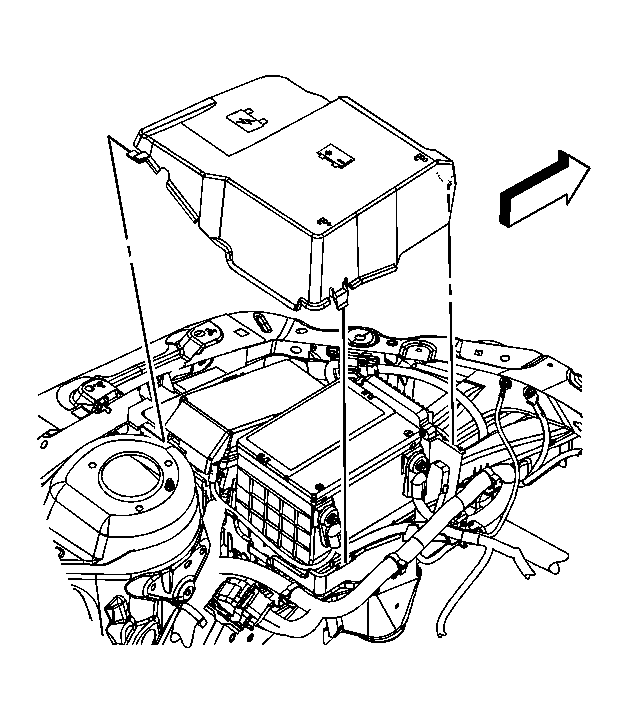

    9. Fig 4: Identifying Battery Cover
    GM1831368Courtesy of GENERAL MOTORS CORP.
  9. Install the battery box cover.

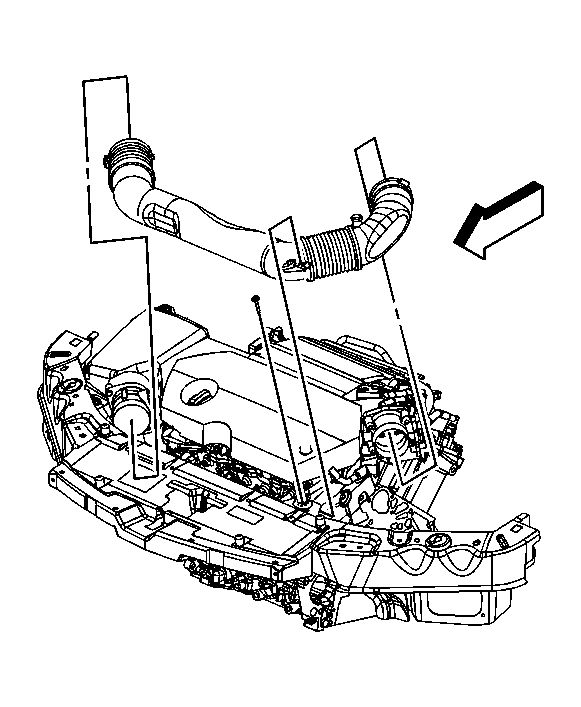

    10. Fig 5: View Of Air Intake Duct
    GM1831704Courtesy of GENERAL MOTORS CORP.
  10. Install the air intake duct.
