Steering Wheel Secondary/Configurable Control Schematics

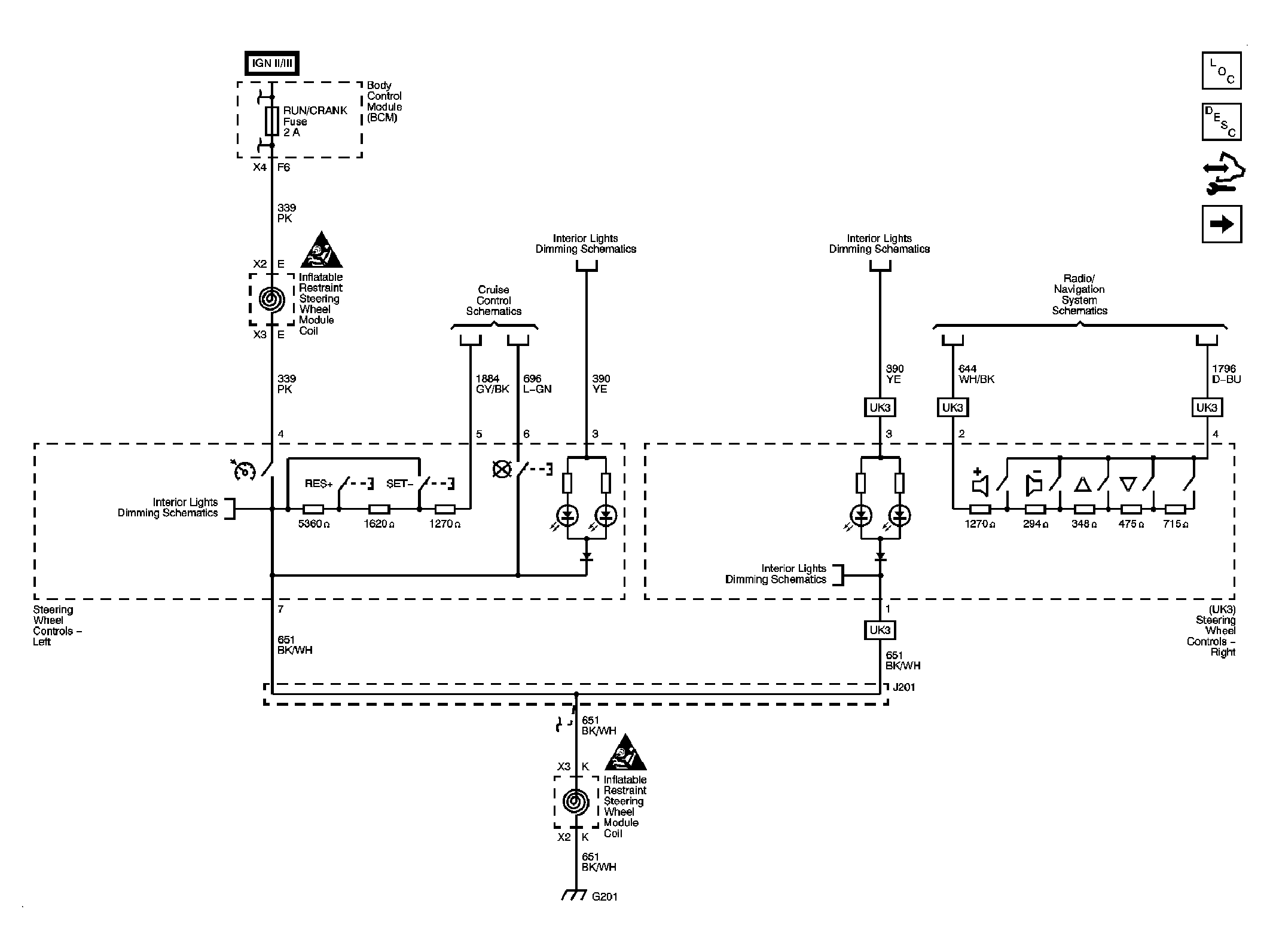

Fig 1: Steering Wheel Secondary/Configurable Control Schematic - 3-Spoke
GM1913296Courtesy of GENERAL MOTORS CORP.

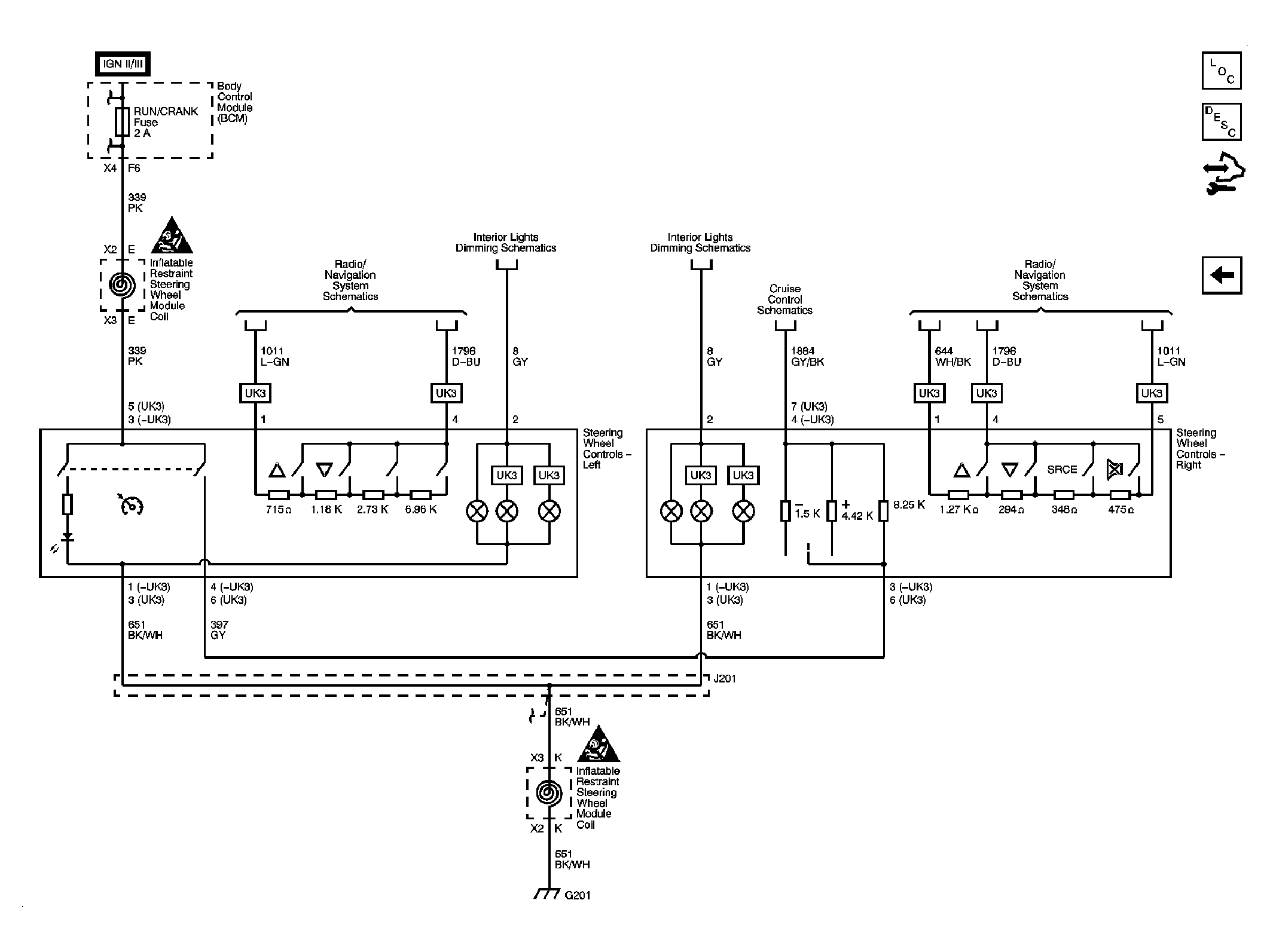

Fig 2: Steering Wheel Secondary/Configurable Control Schematic - 4-Spoke
GM1913299Courtesy of GENERAL MOTORS CORP.
