OnStar Schematics

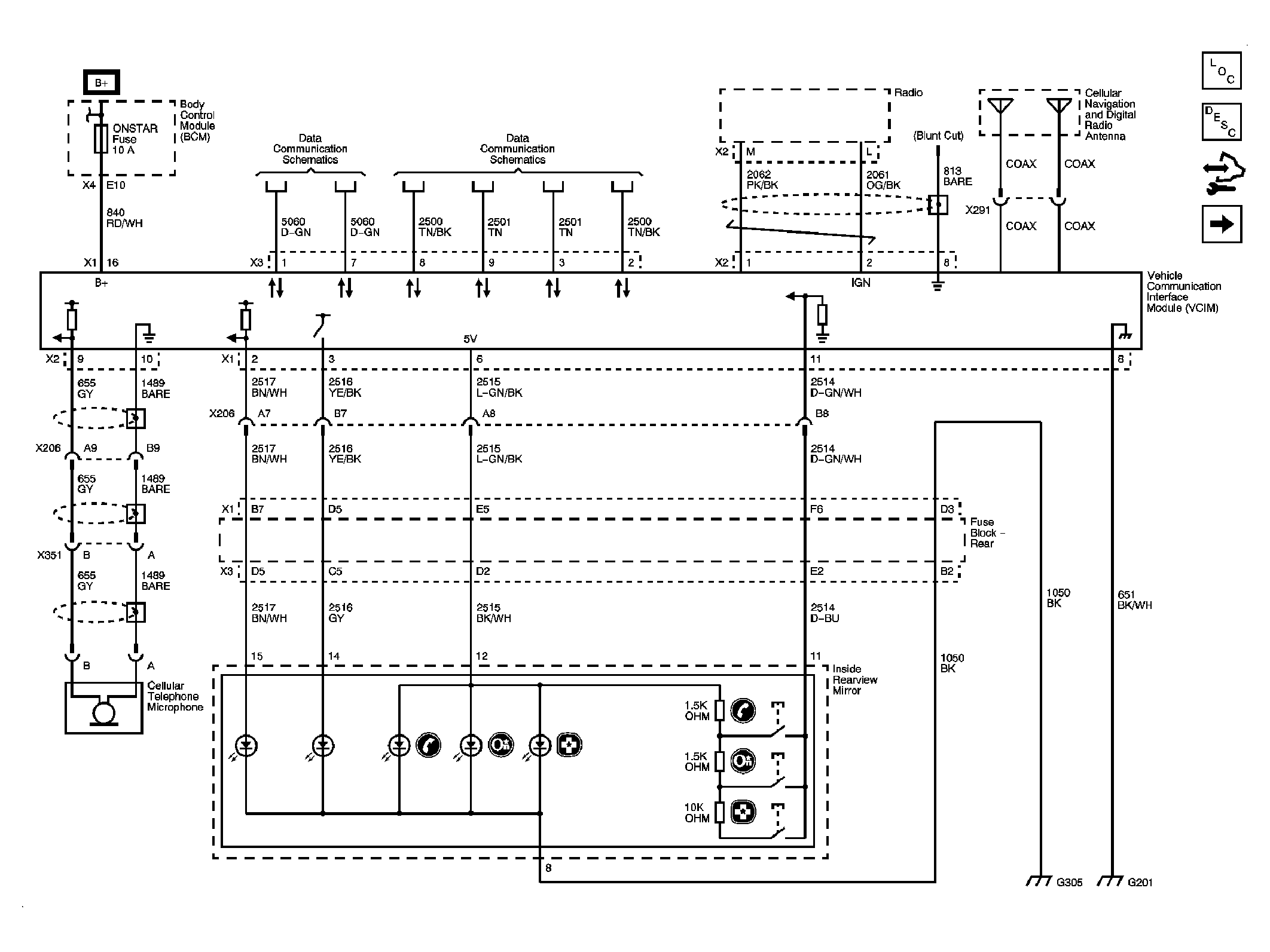

Fig 1: Onstar (Coupe/Sedan) - Schematic
Courtesy of GENERAL MOTORS CORP.

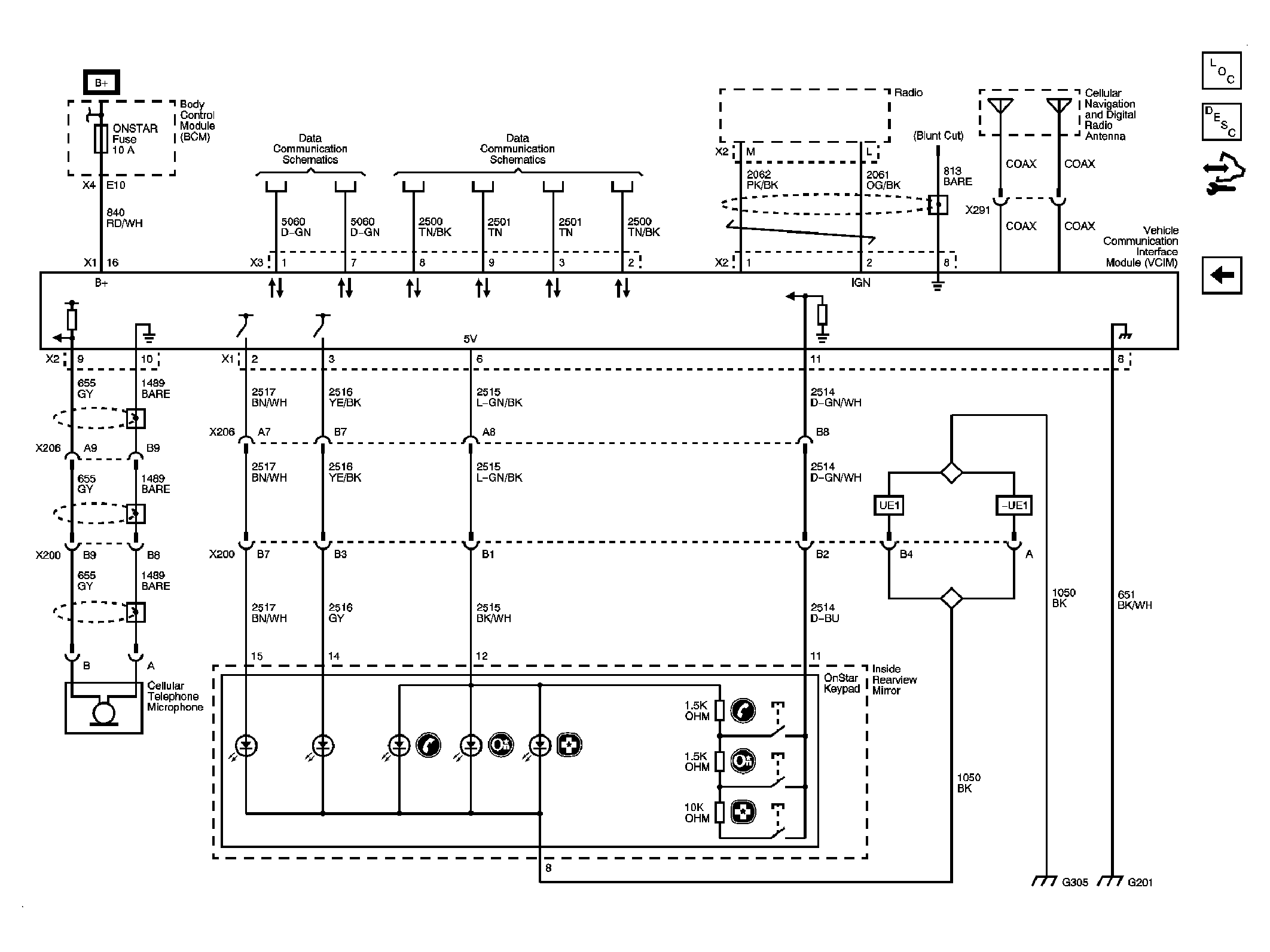

Fig 2: Onstar (Convertible) - Schematic
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
