Moveable Window Schematics

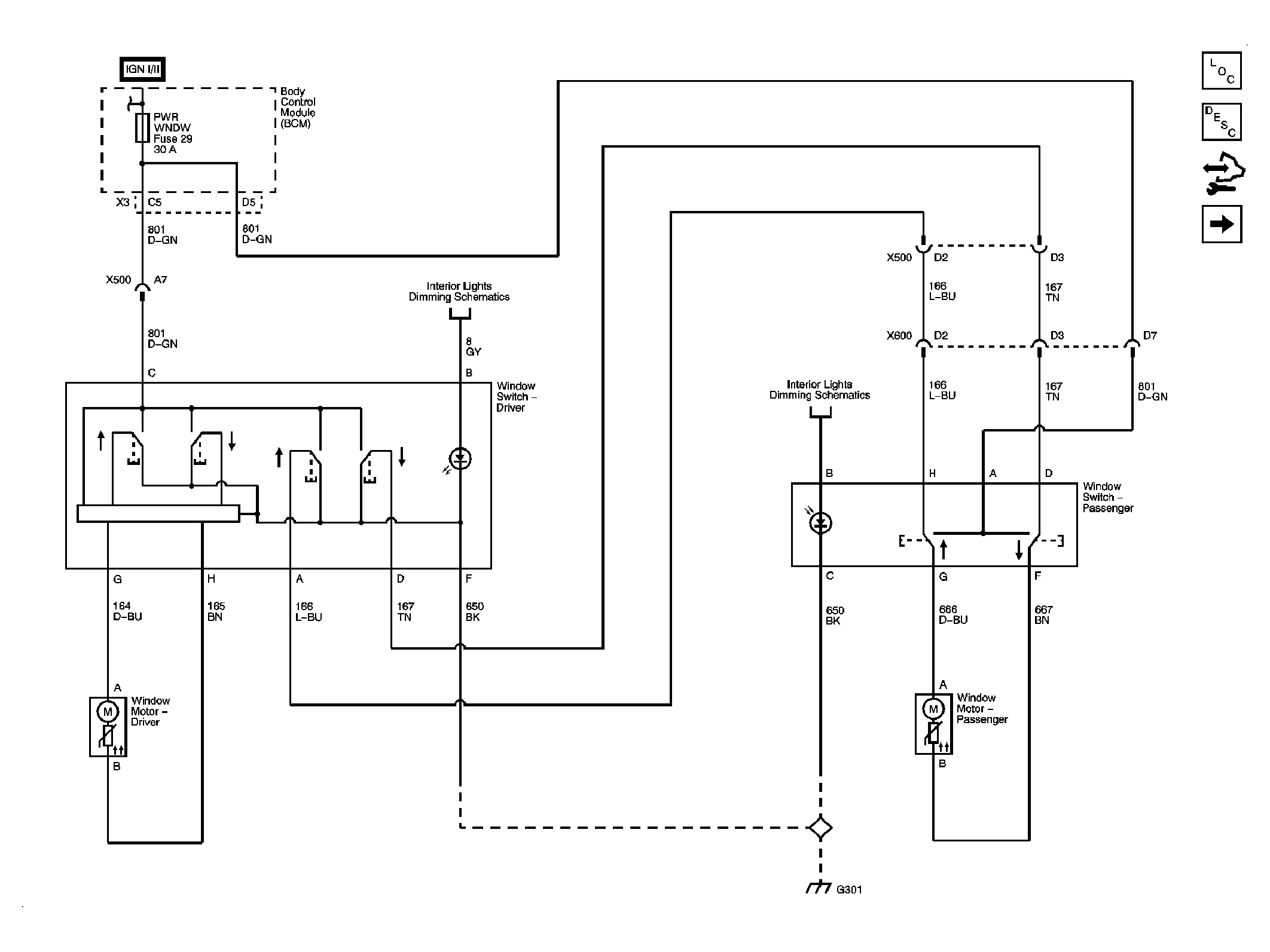

Fig 1: Moveable Window Schematic - Coupe

GM1963408

Courtesy of GENERAL MOTORS CORP.

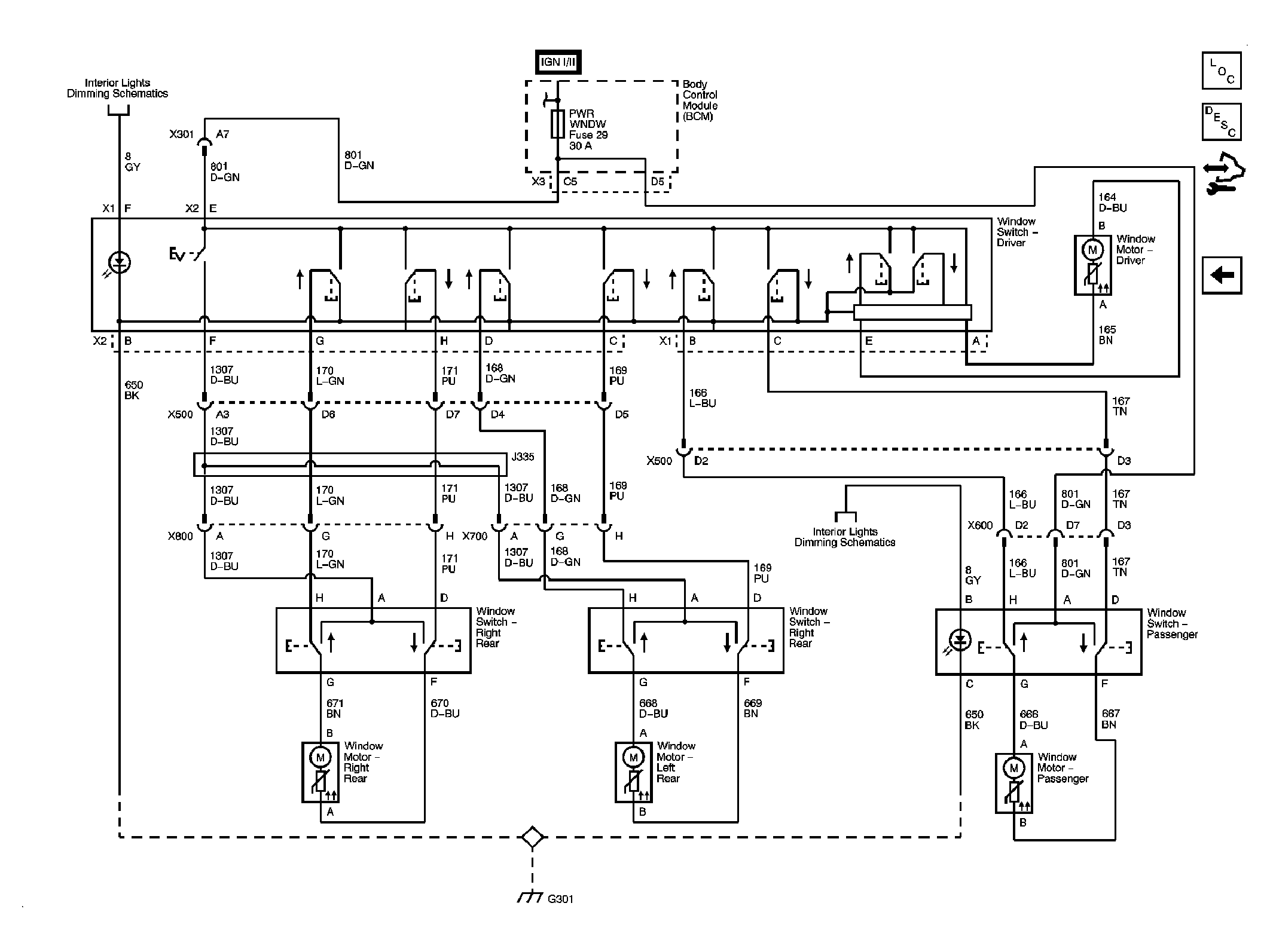

Fig 2: Moveable Window Schematic - Sedan

GM1965298

Courtesy of GENERAL MOTORS CORP.
