Steering Wheel Replacement

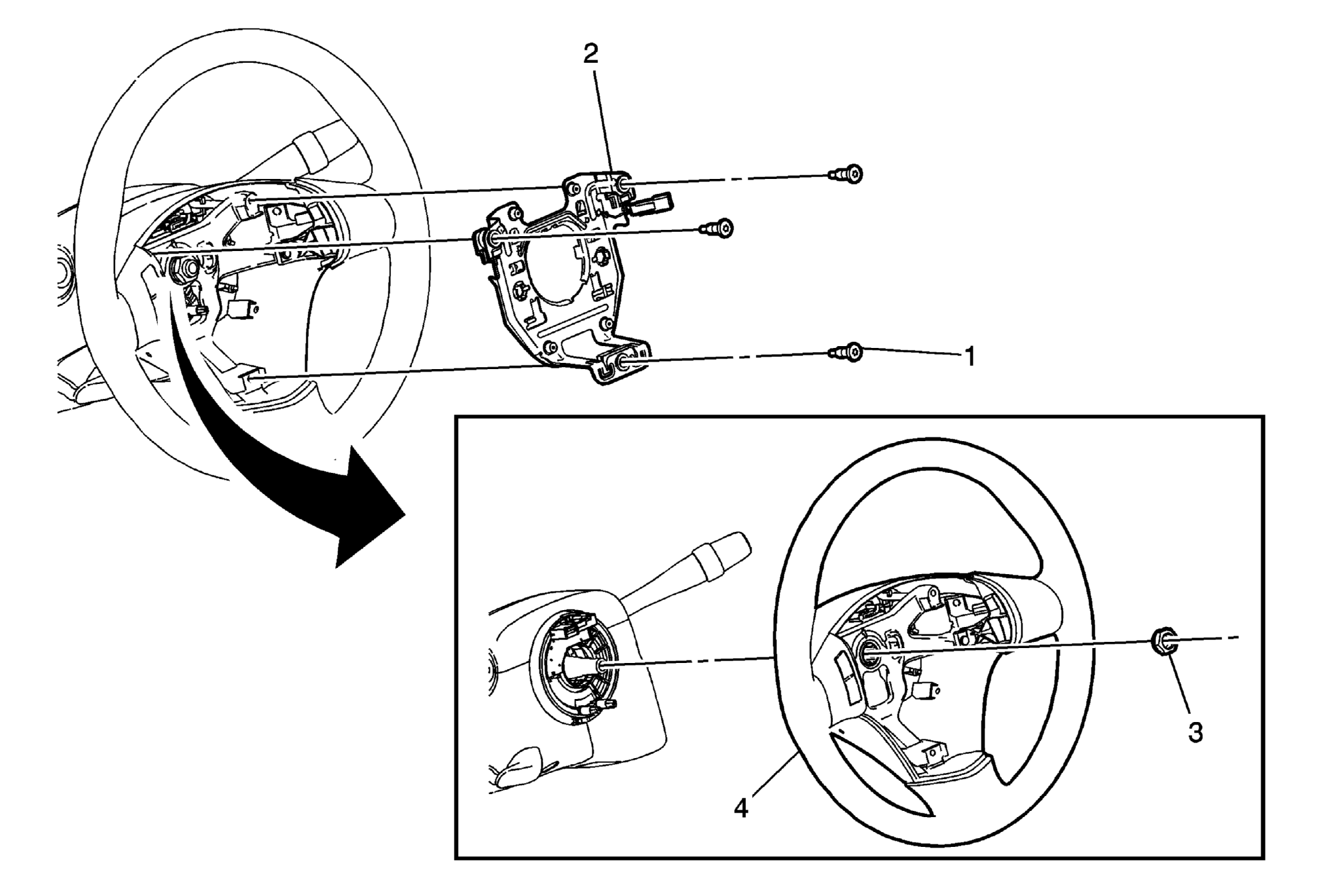

Fig 1: View Of Steering Wheel Components

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
Preliminary Procedure: Remove the inflatable restraint steering wheel module. Refer to Inflatable Restraint Steering Wheel Module Replacement .
1	Steering Wheel Horn Contact Bolt (Qty: 3) NOTE: Refer to Fastener Notice . Tighten: 8 N.m (71 lb in)
2	Steering Wheel Horn Contact Procedure: Disconnect any electrical connectors as needed.
3	Steering Wheel Nut Tighten: 40 N.m (30 lb ft)
4	Steering Wheel Procedure: Use puller J 1859-A and puller legs J 42578 to remove the steering wheel. See Special Tools . Special Tools J 1859-A Steering Wheel Puller J 42578 Steering Wheel Puller Legs
