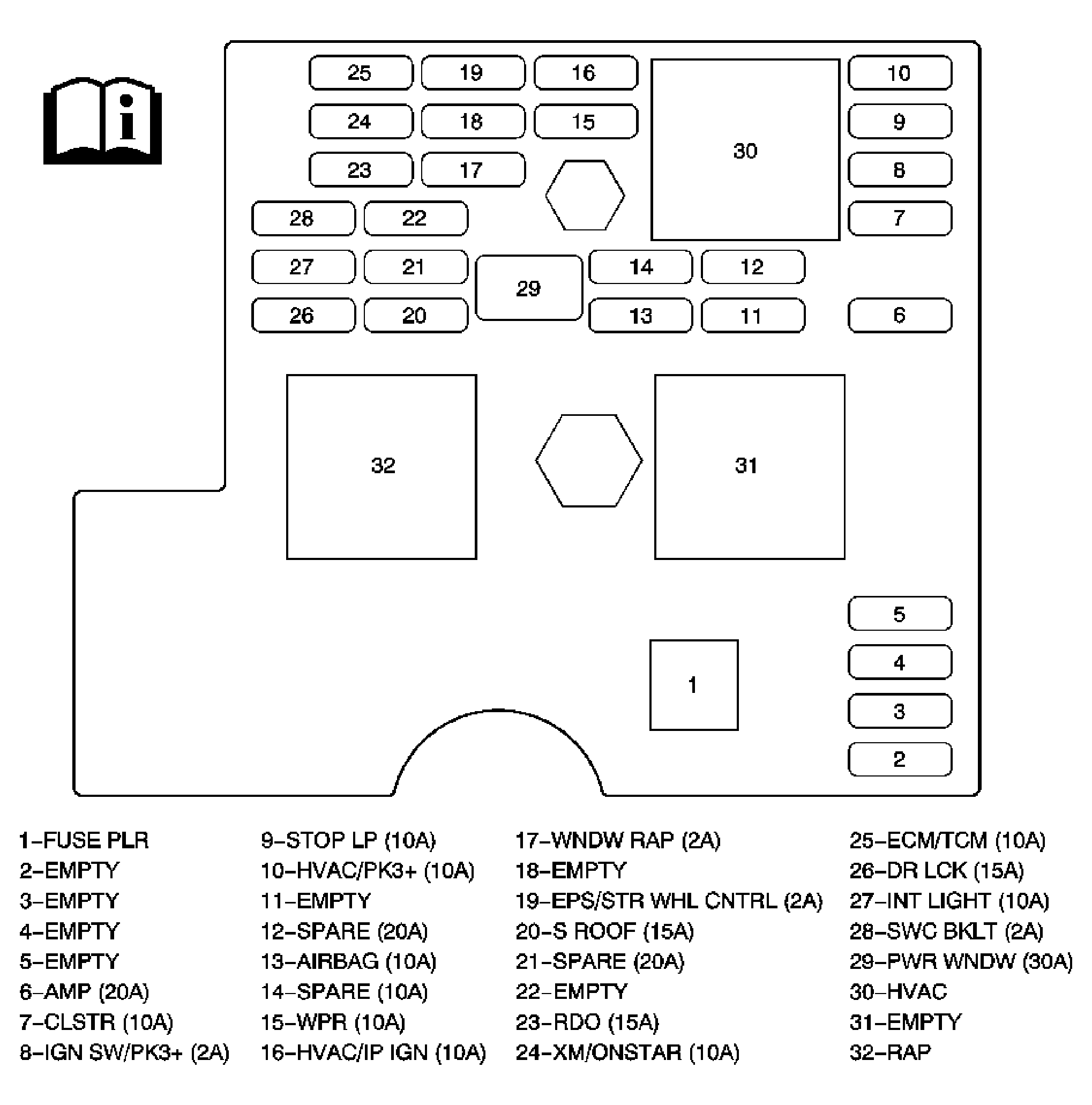

Body Control Module (BCM) Label
Body Control Module (BCM) Label Usage
| No. | Device | Rating | Description |
|---|---|---|---|
| 1 | FUSE PULLER | - | - |
| 2 | EMPTY | - | Not Used |
| 3 | EMPTY | - | Not Used |
| 4 | EMPTY | - | Not Used |
| 5 | EMPTY | - | Not Used |
| 6 | AMP Fuse | 20A | Audio Amplifier (UQ3) |
| 7 | CLSTR Fuse | 10A | Instrument Panel Cluster (IPC) |
| 8 | IGN SW/PK3+ Fuse | 2A | Ignition Switch |
| 9 | STOP LP Fuse | 10A | Not Used |
| 10 | HVAC/PK3+ Fuse | 10A | HVAC Control Module, Theft Deterrent Control Module |
| 11 | EMPTY | - | - |
| 12 | SPARE | 20A | Not Used |
| 13 | AIRBAG Fuse | 10A | Inflatable Restraint Front Passenger Presence System (PPS) Module, Inflatable Restraint Sensing and Diagnostic Module (SDM) |
| 14 | SPARE | 10A | Not Used |
| 15 | WPR Fuse | 10A | Windshield Wiper/Washer Switch, Turbocharger Boost Gage (LNF) |
| 16 | HVAC/IP IGN Fuse | 10A | Clutch Pedal Start Switch (M/T), Instrument Panel Cluster (IPC), Heated Seat Switches (KA1), HVAC Control Module, Inflatable Restraint Passenger Air Bag On/Off Indicator |
| 17 | WNDW RAP Fuse | 2A | Not Used |
| 18 | EMPTY | - | - |
| 19 | EPS/STR WHL CNTRL Fuse | 2A | Electronic Power Steering Control Module (PSCM), Steering Wheel Controls - Left (K34, UK3) |
| 20 | S ROOF Fuse | 15A | Sunroof Switch |
| 21 | SPARE | 20A | Not Used |
| 22 | EMPTY | - | - |
| 23 | RDO Fuse | 15A | Radio, Remote Control Door Lock Receiver (RCDLR) (AU0) |
| 24 | XM/ONSTAR Fuse | 10A | Vehicle Communication Interface Module (VCIM) (UE1), Digital Radio Receiver (DRR) |
| 25 | ECM/TCM Fuse | 10A | Engine Control Module (ECM), Transmission Control Module (TCM) |
| 26 | DR LCK Fuse | 15A | DOOR LOCK PCB Relay, DOOR UNLOCK PCB Relay, DR DOOR UNLOCK PCB Relay, INT LIGHT PCB Relay |
| 27 | INT LIGHT Fuse | 10A | INT LIGHT PCB Relay |
| 28 | SWC BKLT Fuse | 2A | Steering Wheel Controls |
| 29 | PWR WNDW Fuse | 30A | Driver Window Switch, Front Passenger Window Switch |
| 30 | HVAC Relay | - | Blower Motor |
| 31 | EMPTY | - | - |
| 32 | RAP Relay | - | PWR WNDW Fuse 29, S ROOF Fuse 20 |
| Printed Circuit Board (PCB) Relays - Not Serviceable | |||
| - | INT LIGHT PCB Relay | - | Dome Lamp, Inside Rearview Mirror |
| - | DOOR LOCK PCB Relay | - | BCM Logic, Door Latches |
| - | DOOR UNLOCK PCB Relay | - | BCM Logic, Door Latches |
| - | DR DOOR UNLOCK PCB Relay | - | BCM Logic, Driver Door Latch |
| - | IGN 3 PCB Relay | - | Blower Motor |
