Door Component Views

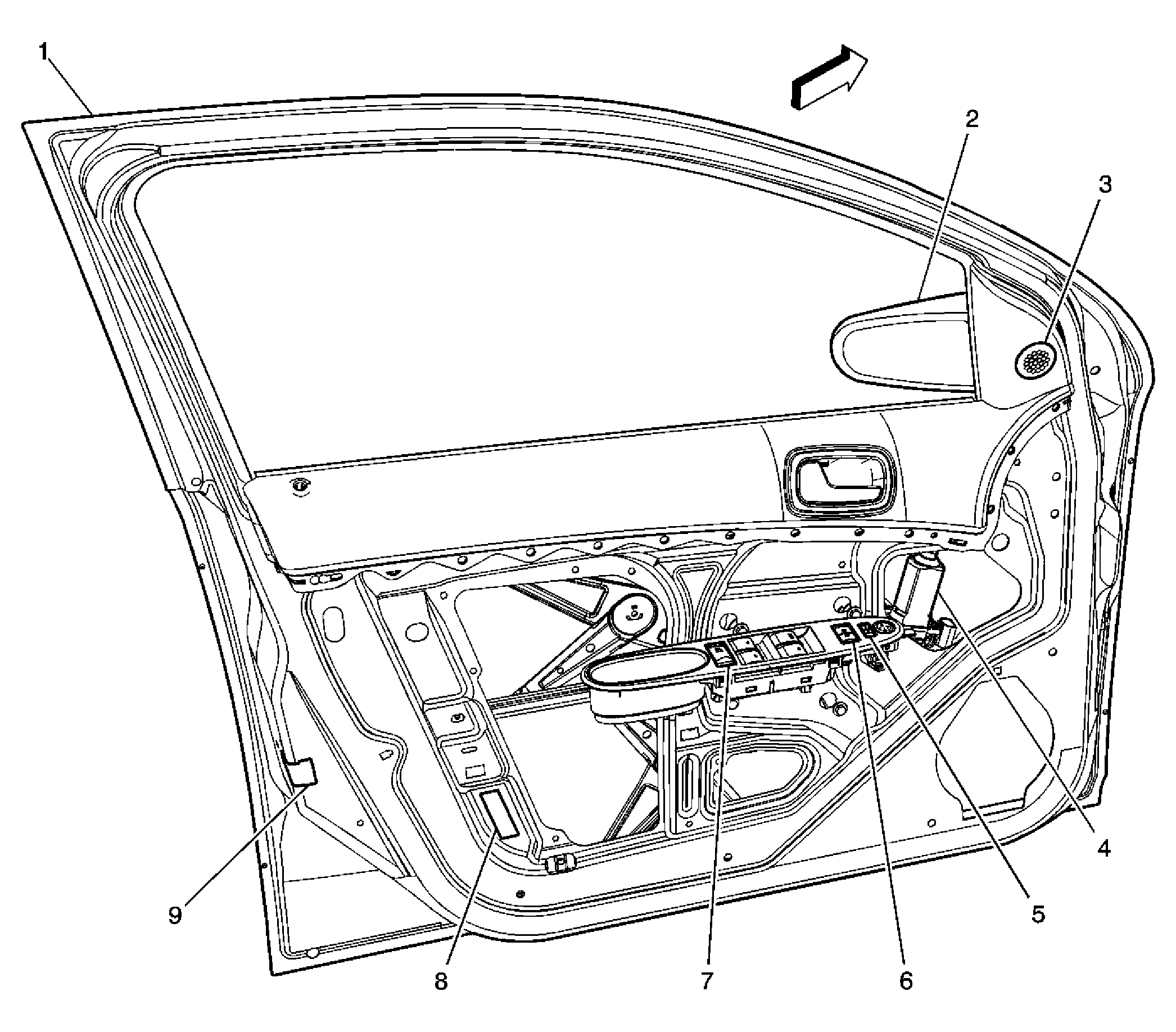

Fig 1: Driver Door Components

GM1549156

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Door Frame
2	Outside Rearview Mirror - Driver (DG7)
3	Speaker - Left Front Door Tweeter (UQ3)
4	Window Motor (A31) - Driver
5	Outside Rearview Mirror Switch (DG7)
6	Door Lock Switch (AU3) - Driver
7	Window Switch (A31) - Driver
8	Inflatable Restraint Side Impact Module (SIS) - Left (ASF)
9	Door Latch (AU3) - Driver

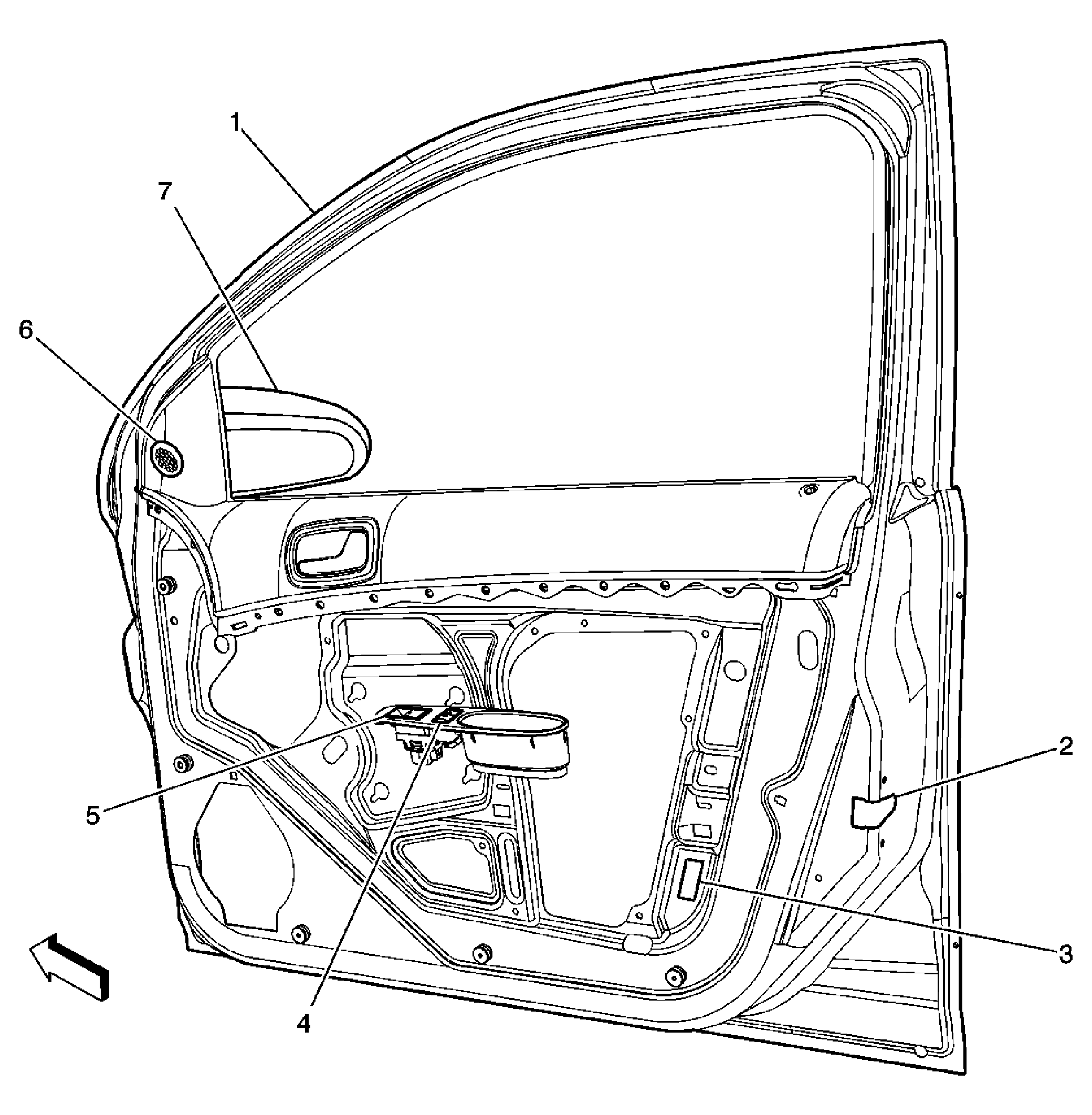

Fig 2: Passenger Door Components

GM1549158

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Door Frame
2	Door Latch (AU3) - Passenger
3	Inflatable Restraint Side Impact Module (SIS) - Right (ASF)
4	Door Lock Switch (AU3) - Passenger
5	Window Switch (A31) - Passenger
6	Speaker - Right Front Door Tweeter (UQ3)
7	Outside Rearview Mirror - Passenger (DG7)

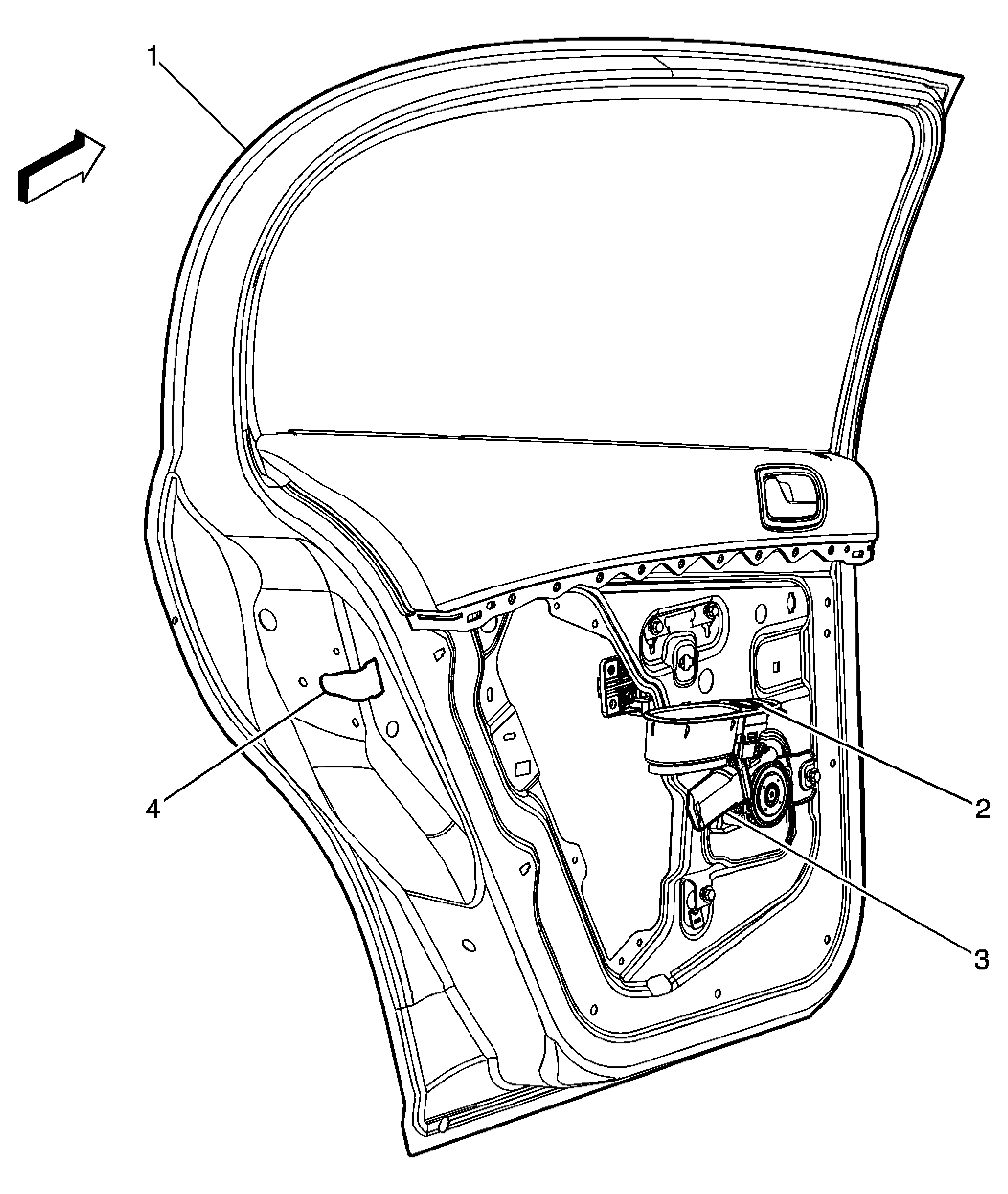

Fig 3: Left Rear Door Components (Sedan)

GM1549159

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Door Frame
2	Window Switch (A31) - Left Rear
3	Window Motor (A31) - Left Rear
4	Door Latch (AU3) - Left Rear

Fig 4: Right Rear Door Components (Sedan)

GM1549160

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Door Frame
2	Door Latch (A31) - Right Rear
3	Window Motor (A31) - Right Rear
4	Window Switch (A31) - Right Rear
