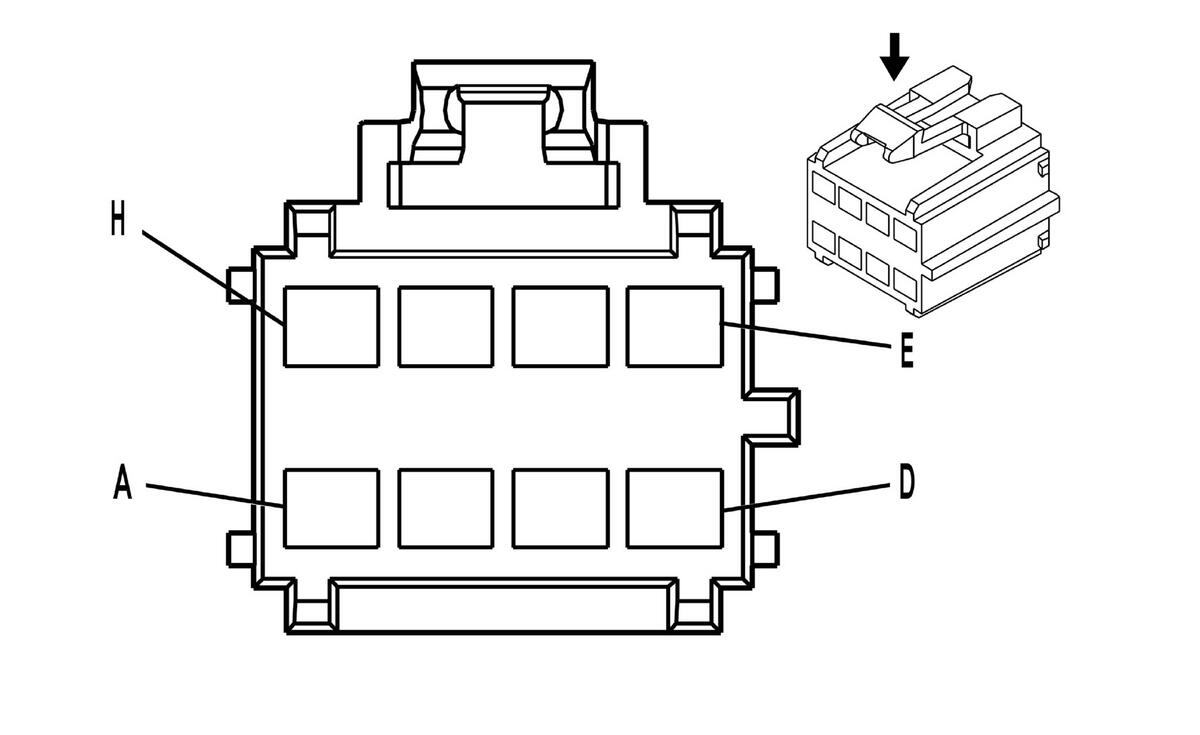

Window Switch - Front Passenger (AU3/DG7)
Courtesy of GENERAL MOTORS CORP. Window Switch - Front Passenger (AU3/DG7)
| Pin |
Wire |
Circuit |
Function |
| A |
3 D-GN |
801 |
Retained Accessory Power Fuse Supply Voltage |
| B |
0.35 GY |
8 |
Instrument Panel Lamp Supply Voltage |
| C |
0.5 BK |
650 |
Ground |
| D |
3 TN |
167 |
Power Window Master Switch Right Front Down Signal |
| E |
- |
- |
Not Used |
| F |
3 BN |
667 |
Power Window Motor Right Front Down Control |
| G |
3 D-BU |
666 |
Power Window Motor Right Front Up Control |
| H |
3 L-BU |
166 |
Power Window Master Switch Right Front Up Signal |
Connector Part Information
- OEM: 12191825
- Service: See Catalog
- Description: 8-Way F GT 280 Series Sealed (BN)
|
Terminal Part Information
- Terminal/Tray: 15304712/2
- Core/Insulation Crimp: C
- Release Tool/Test Probe: 12094430/J-35616-42 (RD)
|
