Torque Converter Clutch Pulse Width Modulation (TCC PWM) Solenoid Valve (MN5/MXO)

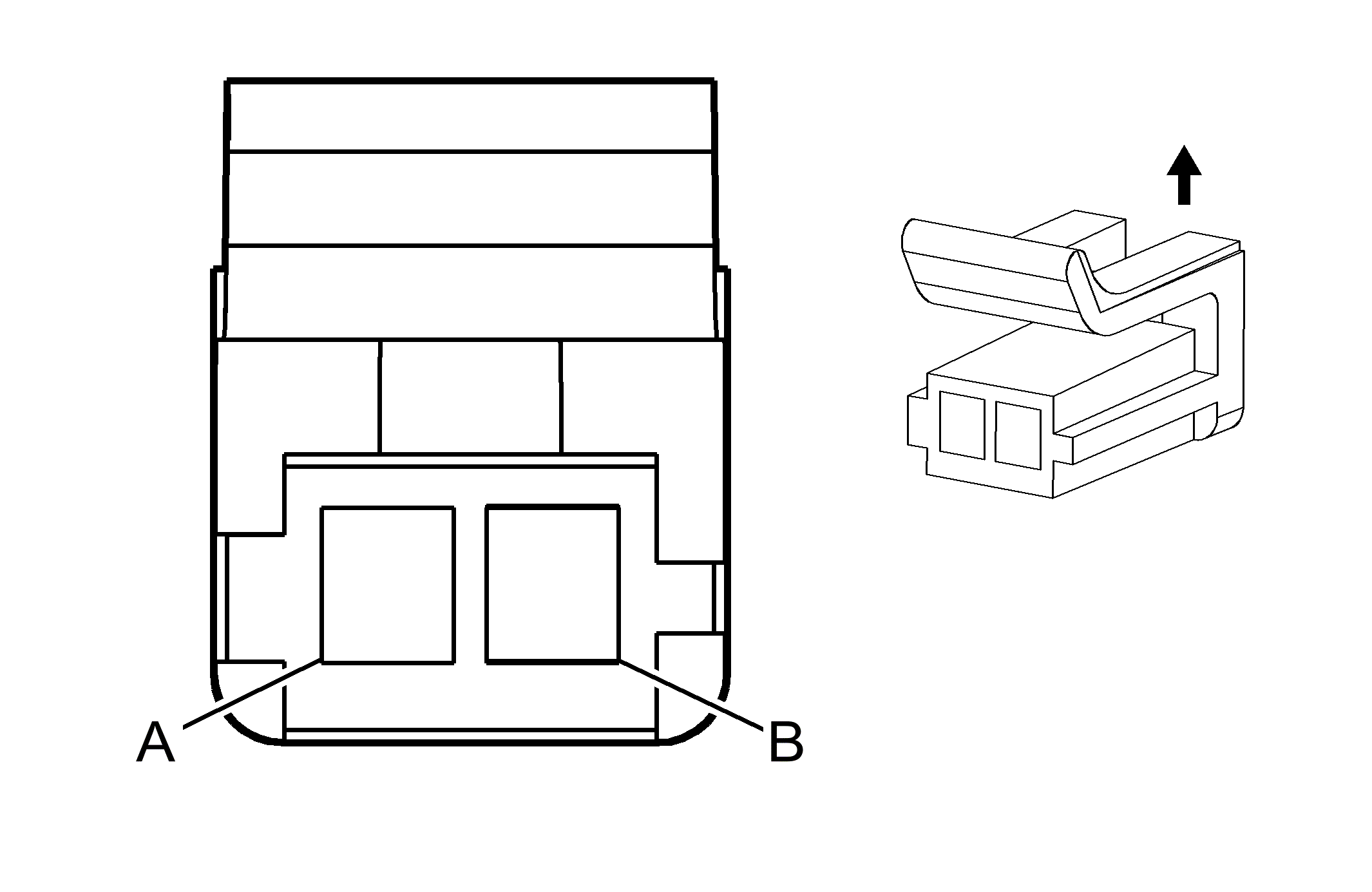

Fig 1: Torque Converter Clutch Pulse Width Modulation (TCC PWM) Solenoid Valve (MN5/MXO) Connector End View

Courtesy of GENERAL MOTORS CORP.

Torque Converter Clutch Pulse Width Modulated (TCC PWM) Solenoid Valve (MN5/MXO)

Pin	Wire	Circuit	Function
A	0.35 RD	839	Ignition 1 Voltage
B	0.35 TN	418	TCC PWM Solenoid Valve Control

Connector Part Information  OEM: 15473845 Service: Non-Serviceable Description: 2-Way F Metri-Pack 150.2 Series P2S (BU)

Terminal Part Information  Terminal: Non-Serviceable Core/Insulation Crimp: Non-Serviceable Release Tool/Test Probe: Non-Serviceable
