Sunroof Motor (CF5)

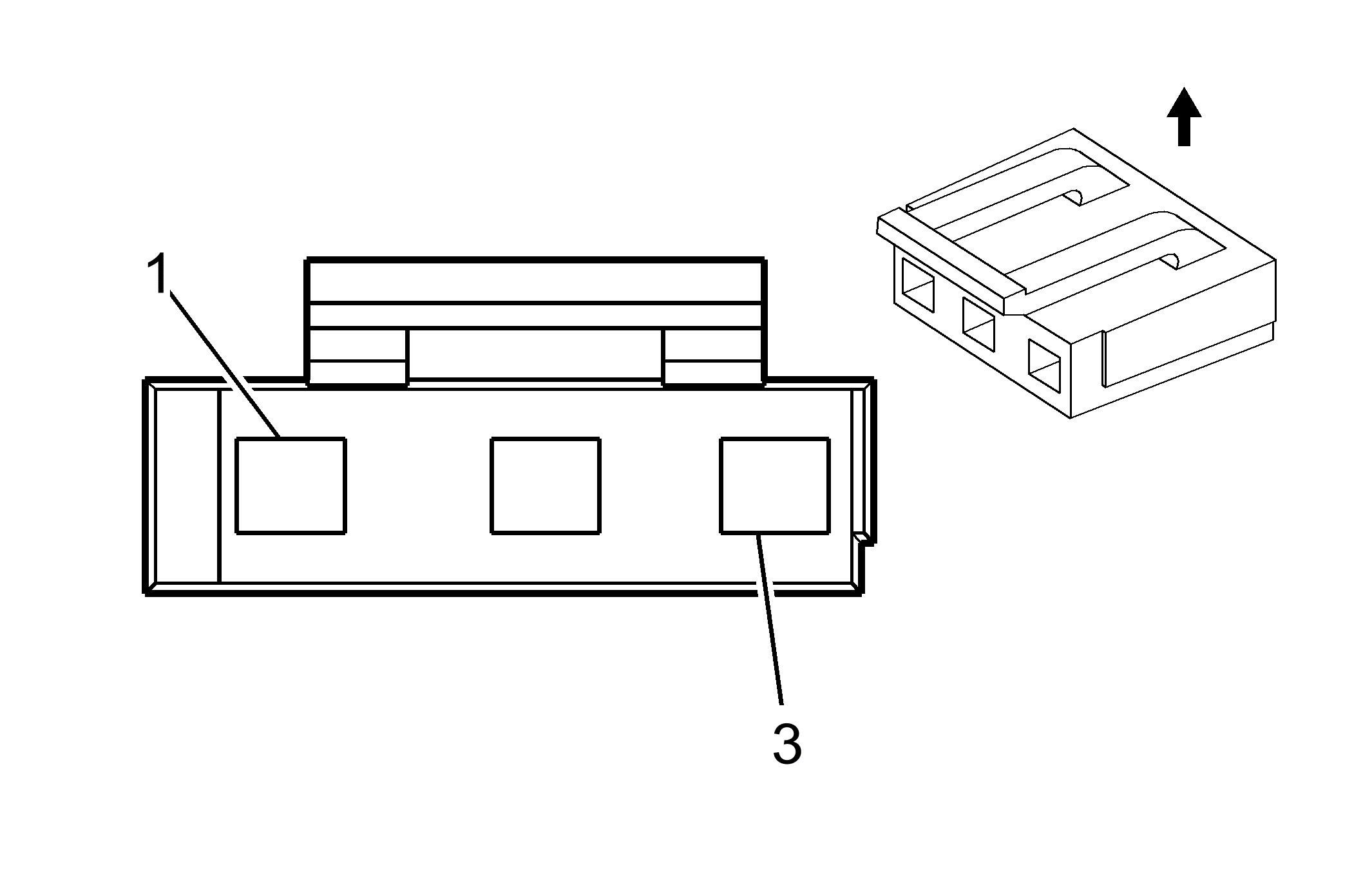

Fig 1: Sunroof Motor (CF5) Connector End View
GM258688Courtesy of GENERAL MOTORS CORP.
Sunroof Motor (CF5)

Pin Wire Circuit Function
1 0.5 YE 131 Sunroof Limit Switch Low Reference
2 0.5 WH 750 Ground
3 0.5 D-GN 127 Sunroof Motor Open Control
Connector Part Information
  • OEM: 12186775
  • Service: 15306098
  • Description: 3-Way F (BK)
Terminal Part Information
  • Terminal/Tray: See Terminal Repair Kit
  • Core/Insulation Crimp: See Terminal Repair Kit
  • Release Tool/Test Probe: See Terminal Repair Kit
