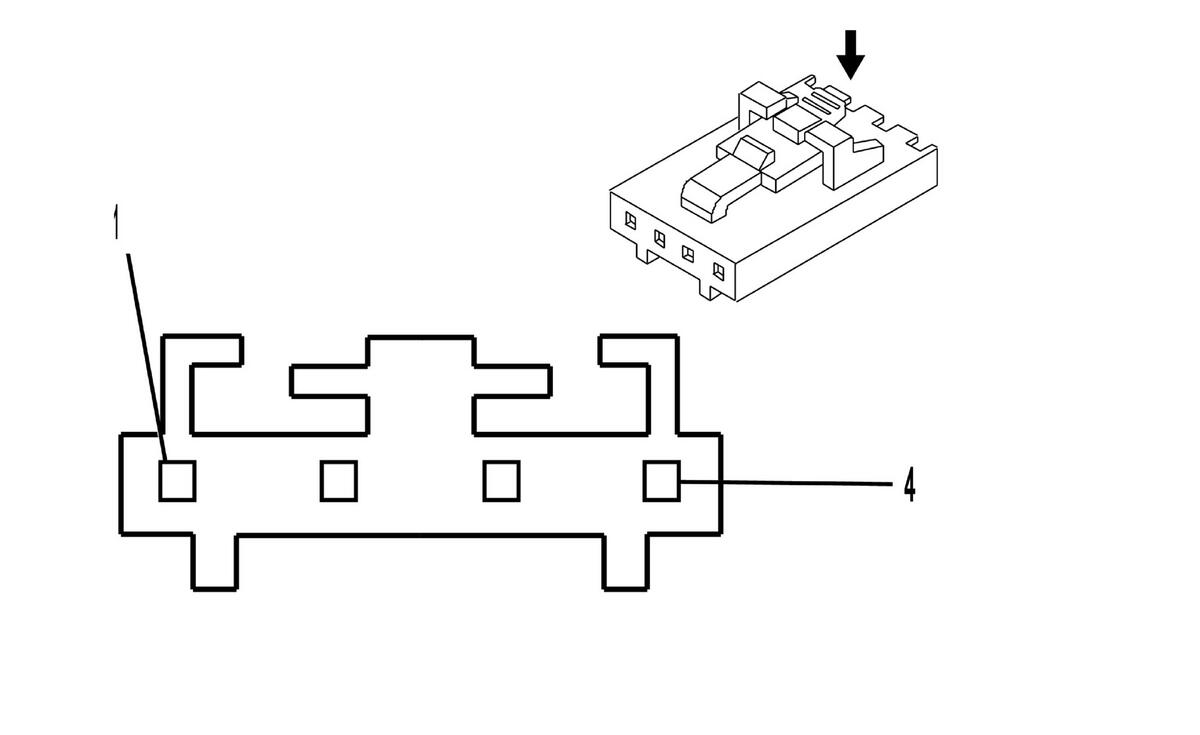

Steering Wheel Controls Right (K34 with UK3)
Courtesy of GENERAL MOTORS CORP. Steering Wheel Controls Right (K34 with UK3)
| Pin |
Wire |
Circuit |
Function |
| 1 |
0.35 BK/WH |
151 |
Ground |
| 2 |
0.35 WH/BK |
644 |
12-Volt Reference |
| 3 |
0.35 GY |
8 |
Instrument Panel Lamps Supply Voltage |
| 4 |
0.35 D-BU |
1796 |
Steering Wheel Controls Signal |
Connector Part Information
- OEM: 12103499
- Service: 88987918
- Description: 4-Way F (BK)
|
Terminal Part Information
- Terminal/Tray: See Terminal Repair Kit
- Core/Insulation Crimp: See Terminal Repair Kit
- Release Tool/Test Probe: See Terminal Repair Kit
|
