Secondary Air Injection (AIR) Solenoid (NU6)

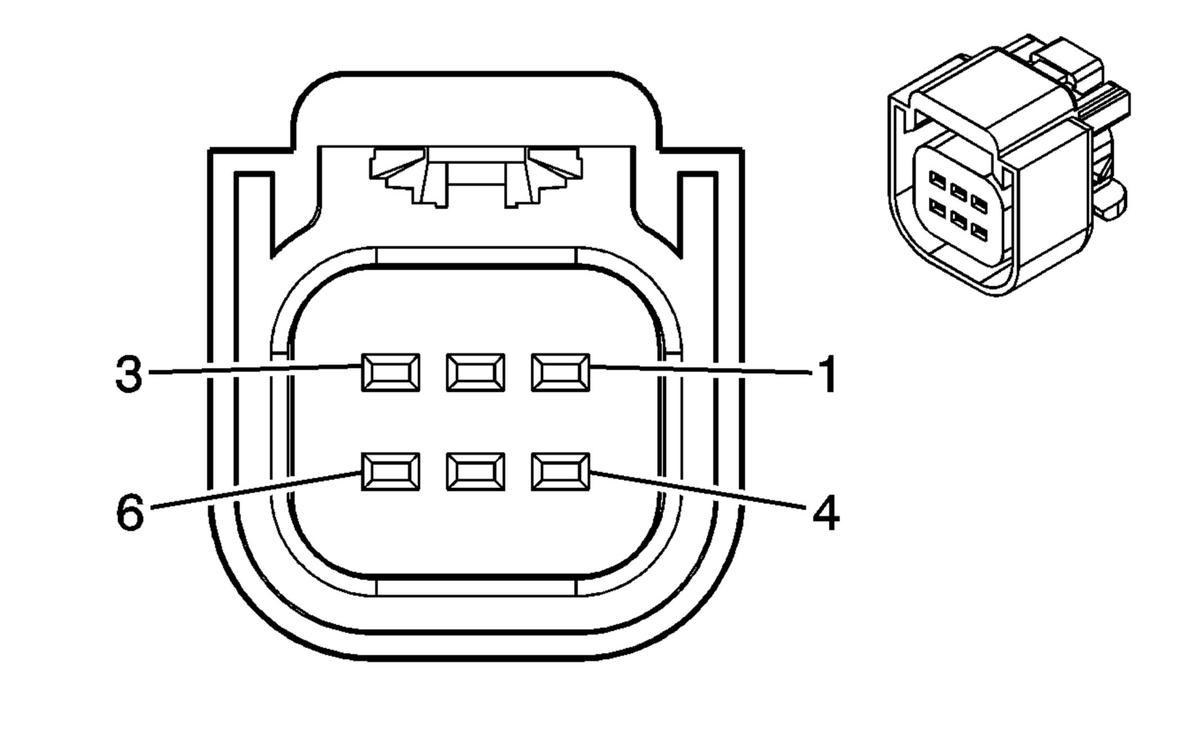

Courtesy of GENERAL MOTORS CORP. Secondary Air Injection (AIR) Solenoid (NU6)
| Pin |
Wire |
Circuit |
Function |
| 1 |
0.35 TN |
407 |
Low Reference |
| 2 |
0.35 BN/WH |
6331 |
AIR Solenoid Position Sensor |
| 3 |
0.35 WH |
6452 |
5-Volt Reference |
| 4 |
0.5 BK/WH |
451 |
Ground |
| 5 |
- |
- |
Not Used |
| 6 |
0.5 PK/BK |
415 |
AIR Solenoid Supply Voltage |
Connector Part Information
- OEM: 13539171
- Service: 88988601
- Description: 6-Way F Metri-Pack 150 Sealed Series (BK)
|
Terminal Part Information
- Terminal/Tray: 12191819/8
- Core/Insulation Crimp: E/A
- Release Tool/Test Probe: 15315247/J-35616-2A (GY)
|
