Seat Belt Switch - Passenger

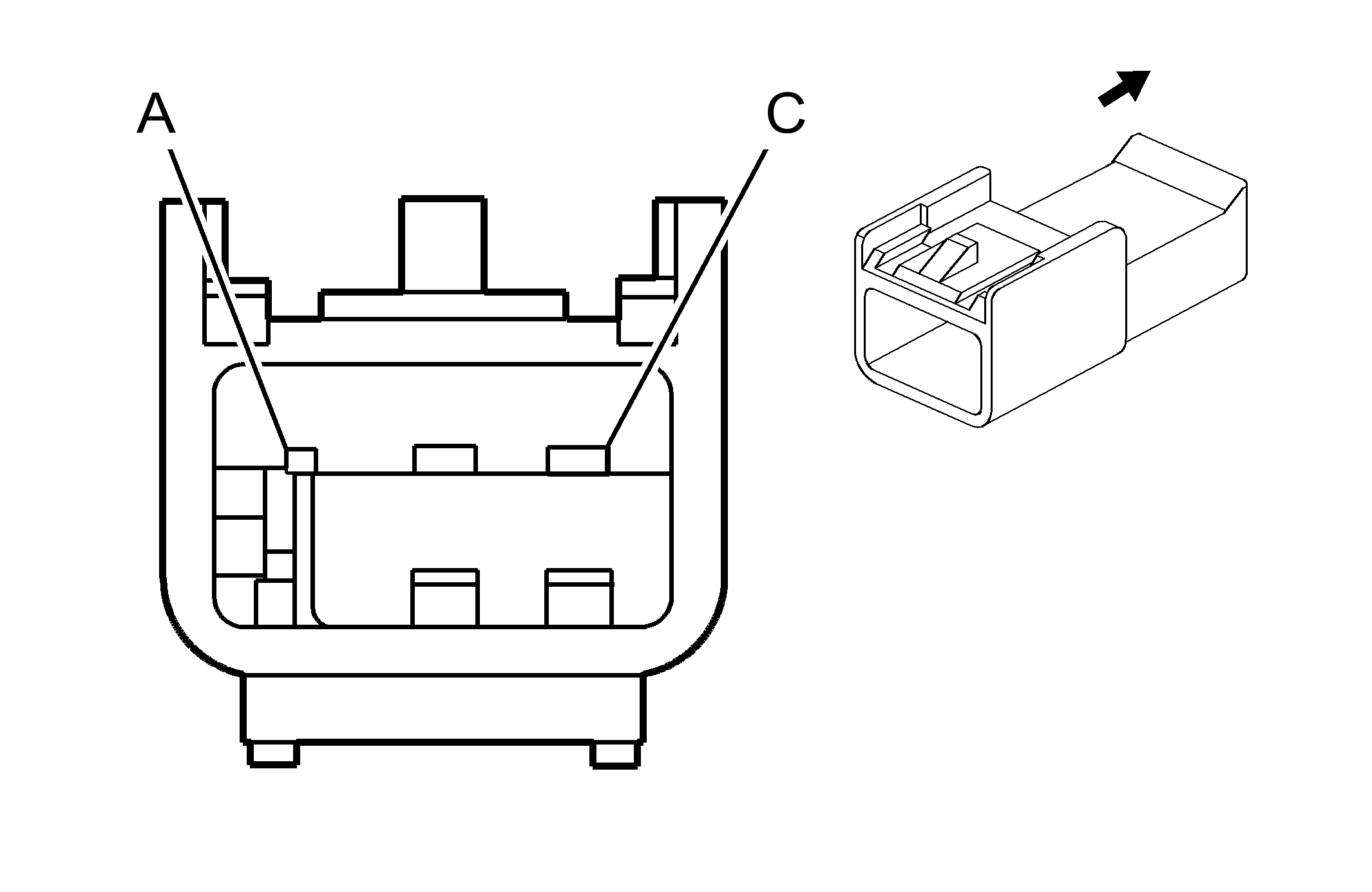

Fig 1: Seat Belt Switch - Passenger Connector End View
GM1391783Courtesy of GENERAL MOTORS CORP.
Seat Belt Switch - Passenger

Pin Wire Circuit Function
A 0.35 OG 1362 Seat Belt Switch - Right
B - - Not Used
C 0.35 BN 5057 Low Reference
Connector Part Information
  • OEM: 15332133
  • Service: 88986266
  • Description: 3-Way M GT150 (BK)
Terminal Part Information
  • Terminal/Tray: See Terminal Repair Kit
  • Core/Insulation Crimp: See Terminal Repair Kit
  • Release Tool/Test Probe: See Terminal Repair Kit
