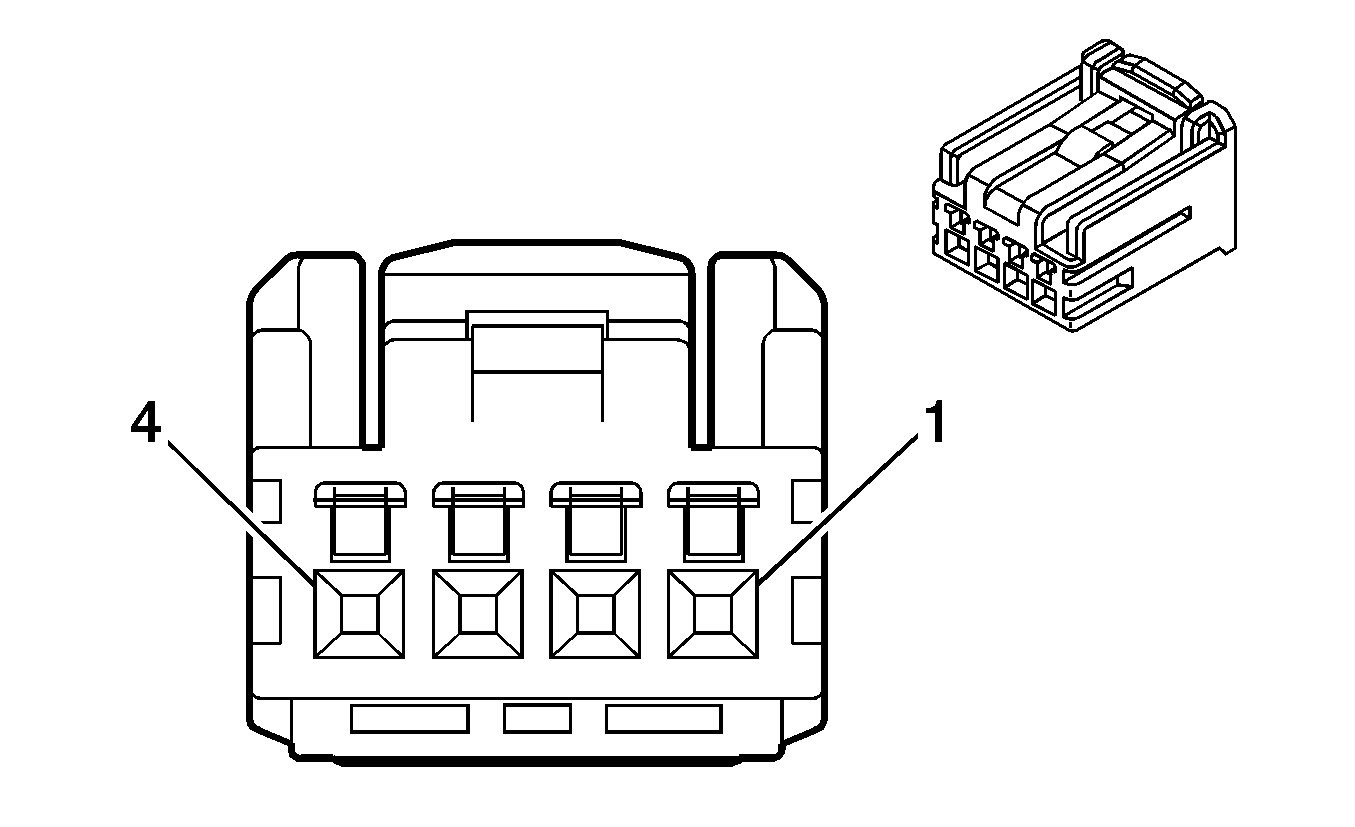

Remote Control Door Lock Receiver (RCDLR) (AU0)
Courtesy of GENERAL MOTORS CORP. Remote Control Door Lock Receiver (RCDLR) (AU0)
| Pin |
Wire |
Circuit |
Function |
| 1 |
0.5 BK/WH |
1051 |
Ground |
| 2 |
0.35 D-GN |
5060 |
Keyless Entry Program Enable Signal |
| 3 |
- |
- |
Not Used |
| 4 |
0.5 RD/WH |
1140 |
Battery Positive Voltage |
Connector Part Information
- OEM: 13514032
- Service: 12102635
- Description: 4-Way F Micro-Pack 100 Series (BU)
|
Terminal Part Information
- Terminal/Tray: 12146447/3
- Core/Insulation Crimp: E/C
- Release Tool/Test Probe: 12031876-1/J-35616-6 (BN)
|
