PRNDL Lamp

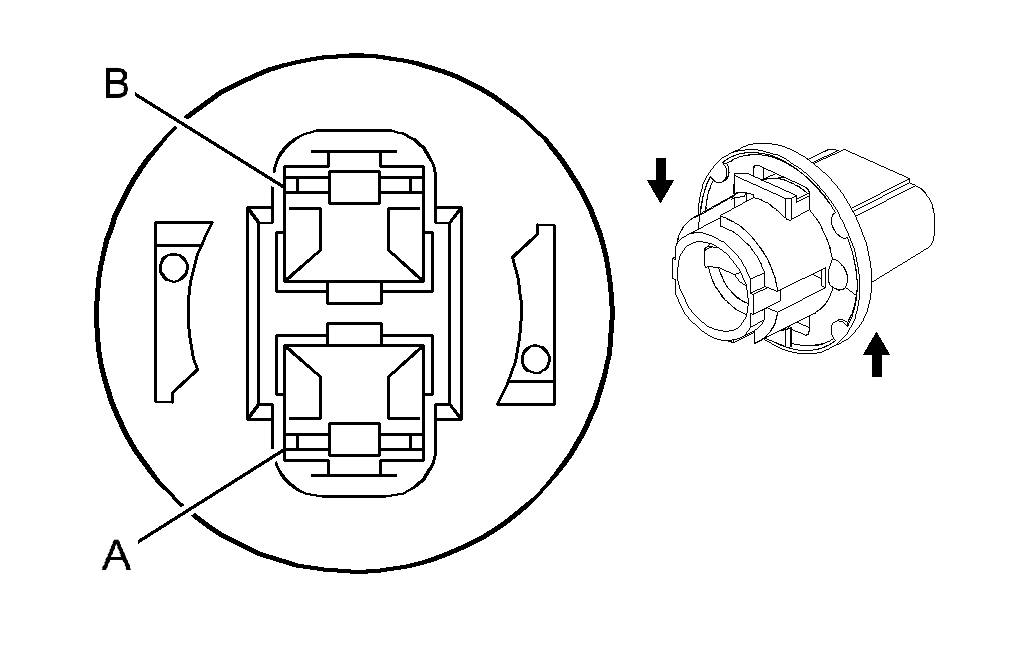

Fig 1: PRNDL Lamp Connector End View
GM810080Courtesy of GENERAL MOTORS CORP.
PRNDL Lamp

Pin Wire Circuit Function
A 0.35 BK 1250 Ground
B 0.35 WH 8 Instrument Panel Lamp Supply Voltage
Connector Part Information
  • OEM: 12162083
  • Service: See Catalog
  • Description: 2-Way F Lamp Socket Bulb Base Type W-2 Axial (BK)
Terminal Part Information
  • Terminal/Tray: See Terminal Repair Kit
  • Core/Insulation Crimp: See Terminal Repair Kit
  • Release Tool/Test Probe: See Terminal Repair Kit
