Marker Lamp - Left Front

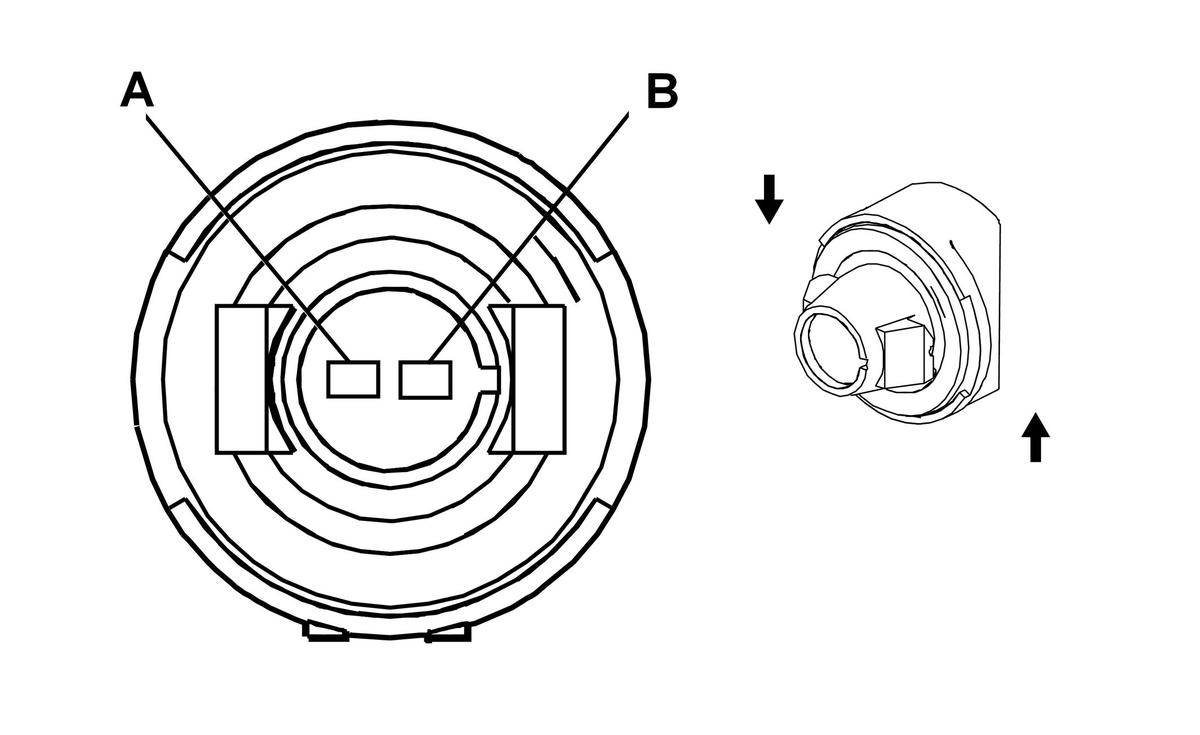

Fig 1: Marker Lamp - Left Front Connector End View
GM877923Courtesy of GENERAL MOTORS CORP.
Marker Lamp - Left Front

Pin Wire Circuit Function
A 0.5 BN 9 Park Lamp Supply Voltage
B 0.5 BK 150 Ground
0.5 BK 150 Ground
Connector Part Information
  • OEM: 16530675
  • Service: See Catalog
  • Description: 2-Way F Sealed (BK)
Terminal Part Information
  • Terminal/Tray: See Terminal Repair Kit
  • Core/Insulation Crimp: See Terminal Repair Kit
  • Release Tool/Test Probe: See Terminal Repair Kit
