Intake Air Pressure and Temperature Sensor (LNF)

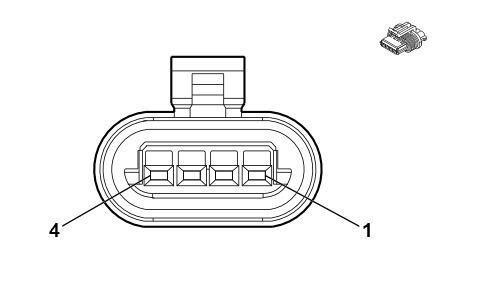

Courtesy of GENERAL MOTORS CORP. Intake Air Pressure and Temperature Sensor (LNF)
| Pin |
Wire |
Circuit |
Function |
| 1 |
0.35 GY |
597 |
5-Volt Reference |
| 2 |
0.35 L-BU |
7329 |
Pre-Throttle Air Temp and Press (TMAP) Temperature Signal |
| 3 |
0.35 TN |
407 |
Low Reference |
| 4 |
0.35 PU |
7330 |
Pre-Throttle Air Temp and Press (TMAP) Air Pressure Signal |
Connector Part Information
- OEM: 15336035
- Service: See Catalog
- Description: 4-Way F Metri-Pack 150 Series Sealed (BK)
|
Terminal Part Information
- Terminal/Tray: See Terminal Repair Kit
- Core/Insulation Crimp: See Terminal Repair Kit
- Release Tool/Test Probe: See Terminal Repair Kit
|
