Inside Rearview Mirror (without UE1)

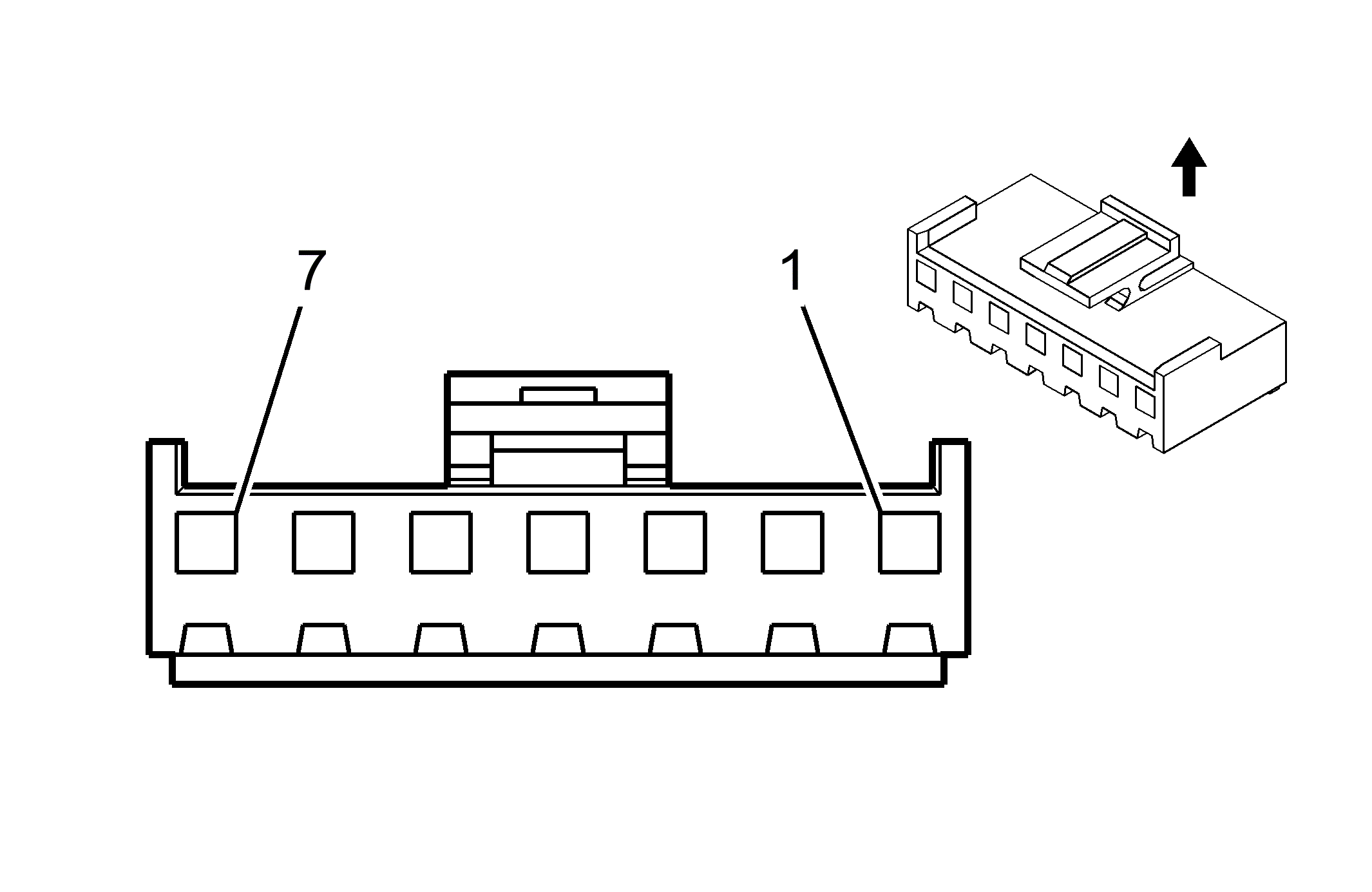

Fig 1: Inside Rearview Mirror (without UE1) Connector End View
GM153632Courtesy of GENERAL MOTORS CORP.
Inside Rearview Mirror (without UE1)

Pin Wire Circuit Function
1 - - Not Used
2 0.5 BK 750 Ground
3-5 - - Not Used
6 0.5 GY 157 Courtesy Lamp Control
7 0.5 D-BU/WH 149 Courtesy Lamp Supply Voltage
Connector Part Information
  • OEM: 12124782
  • Service: 15306078
  • Description: 7-Way F Misc (BK)
Terminal Part Information
  • Terminal/Tray: SVH-21T-P1.1/20
  • Core/Insulation Crimp: E/2
  • Release Tool/Test Probe: 12094429/J-35616-18 (BK)
