Ignition Switch

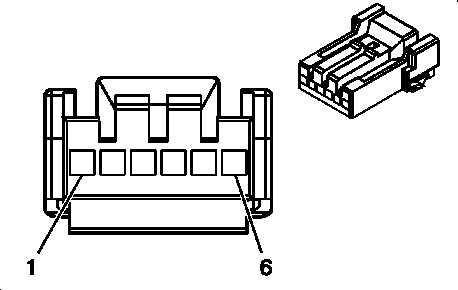

Fig 1: Ignition Switch Connector End View
GM1376229Courtesy of GENERAL MOTORS CORP.
Ignition Switch

Pin Wire Circuit Function
1 - - Not Used
2 0.35 RD/WH 1040 Battery Positive Voltage
3 0.35 YE 5199 Run/Crank Voltage
4 0.35 BN 4 Accessory Voltage
5 0.35 WH 1390 Off/Run/Crank Voltage
6 0.35 WH/BK 1073 Key-In Ignition Switch
Connector Part Information
  • OEM: 15324806
  • Service: 88987854
  • Description: 6-Way F 035 Series ILAG5 (GN)
Terminal Part Information
  • Terminal/Tray: IL-AG5-C1-5000/20
  • Core/Insulation Crimp: K/K
  • Release Tool/Test Probe: J-38125-211/J-35616-64B (L-BU)
