Ignition Coil/Module 4

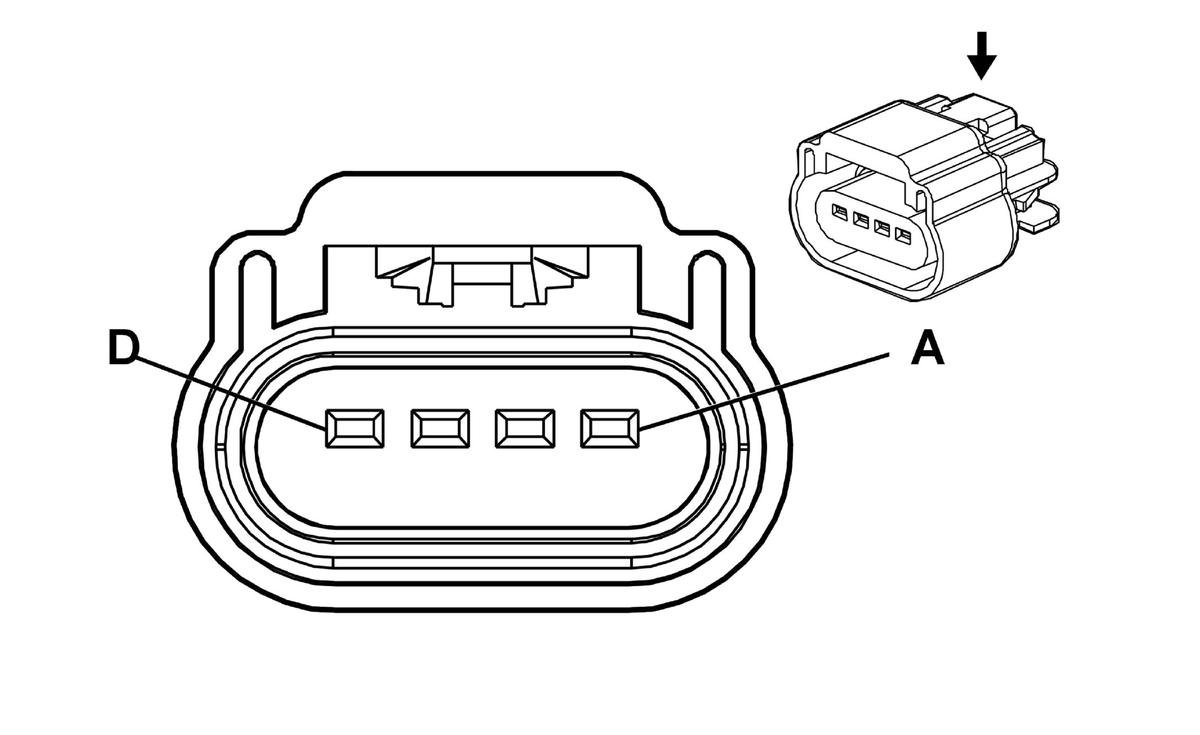

Fig 1: Ignition Coil/Module 4 Connector End View
GM1653384Courtesy of GENERAL MOTORS CORP.
Ignition Coil/Module 4

Pin Wire Circuit Function
A 0.8 BK 1350 Ground
B 0.35 BN 2129 Low Reference (LE5/L61)
0.35 BN/WH 2130 Low Reference (LNF)
C 0.35 D-GN/WH 2124 Ignition Control (4)
D 0.5 PK/BK 5292 Ignition 1 Voltage
Connector Part Information
  • OEM: 15466325
  • Service: 88988338
  • Description: 4-Way F GT 150 Series Sealed (BK)
Terminal Part Information
  • Terminal/Tray: 7116-4102-08/9
  • Core/Insulation Crimp: E/1
  • Release Tool/Test Probe: 12094430/J-35616-2A (GY)
