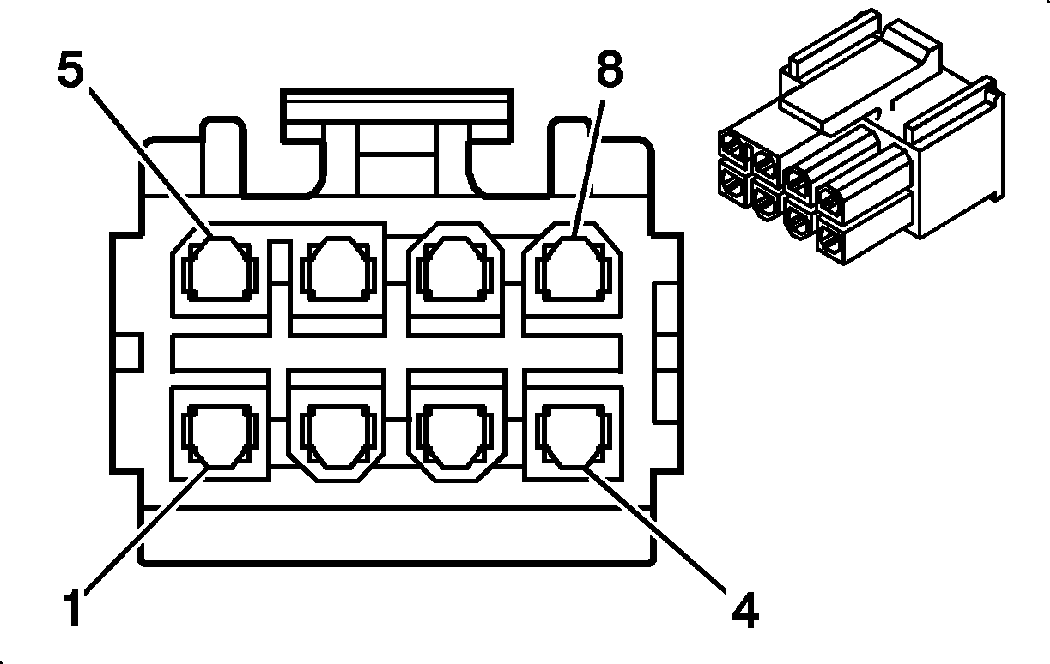

Heated Seat Module - Driver (KA1)
Courtesy of GENERAL MOTORS CORP. Heated Seat Module - Driver (KA1)
| Pin |
Wire |
Circuit |
Function |
| 1-2 |
- |
- |
Not Used |
| 3 |
0.5 PK |
1501 |
Driver Heated Seat High/Low Signal |
| 4 |
1 BK |
1250 |
Ground |
| 5 |
1 RD/WH |
340 |
Battery Positive Voltage |
| 6 |
0.8 GY |
2080 |
Driver Heated Seat Cushion Temperature Sensor Low Reference |
| 7 |
0.8 OG |
2077 |
Heated Seat Cushion Element Supply Voltage |
| 8 |
0.5 L-BU |
1462 |
Heated Seat Switch Signal |
Connector Part Information
- OEM: 15-97-5081
- Service: 89046731
- Description: 8-Way M (BK)
|
Terminal Part Information
- Terminal/Tray: See Terminal Repair Kit
- Core/Insulation Crimp: See Terminal Repair Kit
- Release Tool/Test Probe: See Terminal Repair Kit
|
