HVAC Control Module X2

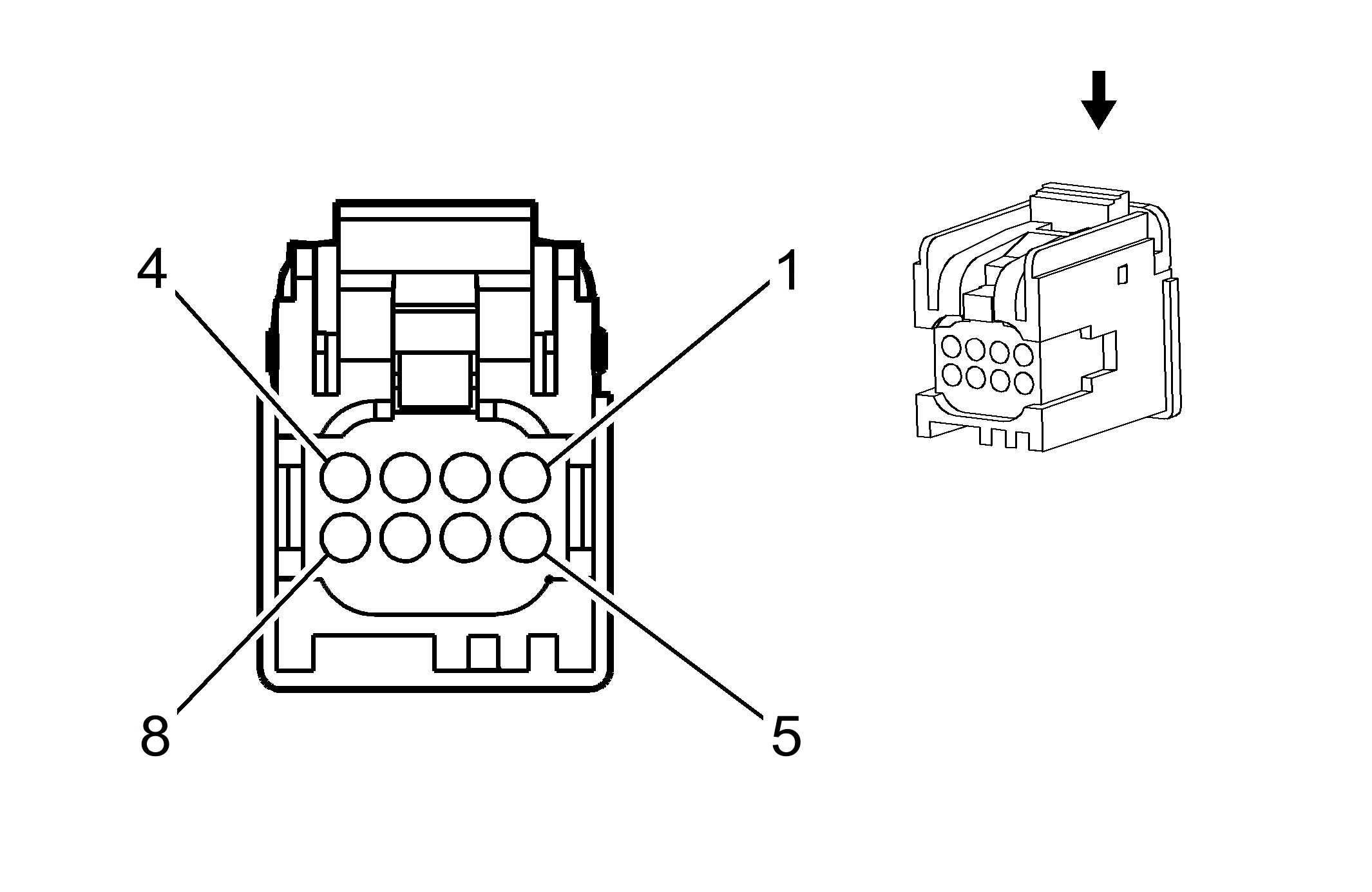

Fig 1: HVAC Control Module X2 Connector End View
GM1644506Courtesy of GENERAL MOTORS CORP.
HVAC Control Module X2

Pin Wire Circuit Function
A1 0.35 PK 339 Ignition 1 Voltage
A2 0.35 GY 8 Instrument Panel Lamp Supply Voltage
A3 - - Not Used
A4 0.35 RD/WH 1540 Battery Positive Voltage
A5 0.8 BK 550 Ground
A6 0.35 L-GN 66 A/C Request Signal (C67)
A7 0.35 WH 193 Rear Defog Relay Control
A8 0.35 L-BU 292 Rear Defog Switch Signal
Connector Part Information
  • OEM: 15480081
  • Service: 88988315
  • Description: 8-Way F Micro-Pack 64 (BK)
Terminal Part Information
  • Terminal/Tray: 15359541/4
  • Core/Insulation Crimp: M/M
  • Release Tool/Test Probe: 15381651-2/J-35616-64B (L-BU)
