Generator X1 (LNF)

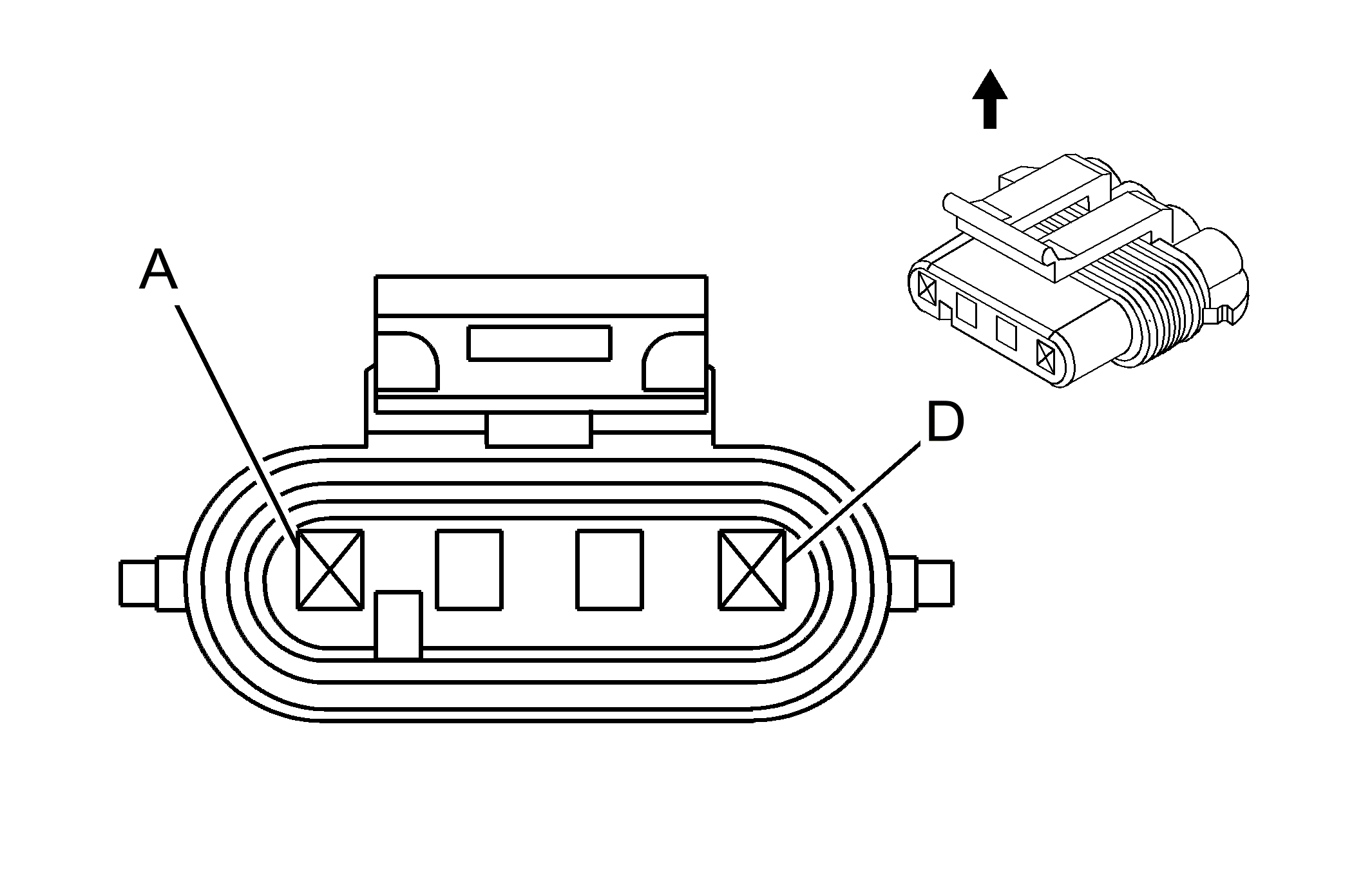

Fig 1: Generator X1 (LNF) Connector End View
GM647991Courtesy of GENERAL MOTORS CORP.
Generator X1 (LNF)

Pin Wire Circuit Function
A - - Not Available
B 0.35 OG 225 Generator Turn On Signal
C 0.35 GY 23 Generator Field Duty Cycle Signal
D - - Not Available
Connector Part Information
  • OEM: 15355066
  • Service: 15306329
  • Description: 4-Way, 2 Usable, F Metri-Pack 150 Series Sealed (BG)
Terminal Part Information
  • Terminal/Tray: 12048074/2
  • Core/Insulation Crimp: E/1
  • Release Tool/Test Probe: 12094429/J-35616-2A (GY)
