Fuel Injector 3 (L61/LE5)

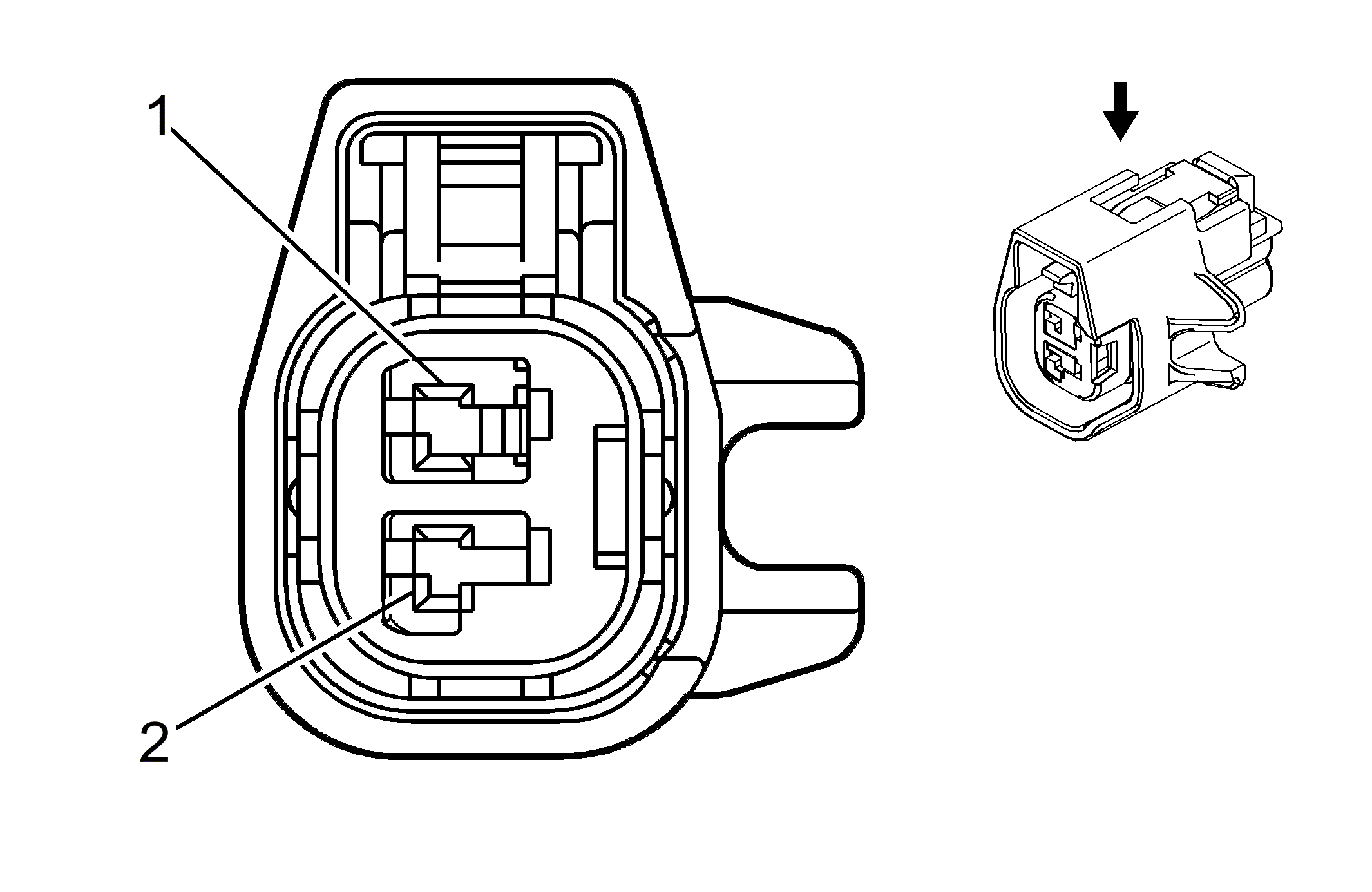

Fig 1: Fuel Injector 3 (L61/LE5) Connector End View
GM1721512Courtesy of GENERAL MOTORS CORP.
Fuel Injector 3 (L61/LE5)

Pin Wire Circuit Function
1 0.5 PK 139 Ignition 1 Voltage
2 0.5 PK/BK 1746 Fuel Injector (3) Control
Connector Part Information
  • OEM: 12610756
  • Service: See Catalog
  • Description: 2-Way F Sealed (BK)
Terminal Part Information
  • Terminal/Tray: See Terminal Repair Kit
  • Core/Insulation Crimp: See Terminal Repair Kit
  • Release Tool/Test Probe: See Terminal Repair Kit
