Fog Lamp Switch (T37)

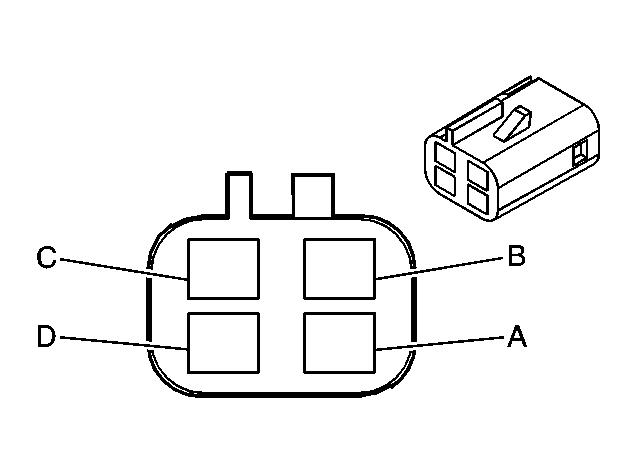

Fig 1: Fog Lamp Switch (T37) Connector End View
GM1283883Courtesy of GENERAL MOTORS CORP.
Fog Lamp Switch (T37)

Pin Wire Circuit Function
A 0.5 BK/WH 1051 Ground
B - - Not Used
C 0.35 OG 192 Front Fog Lamp Switch Signal
D 0.35 GY 8 Instrument Panel Lamp Supply Voltage
Connector Part Information
  • OEM: 15419483
  • Service: 89046742
  • Description: 4-Way F Metri-Pack 150 Series (BK)
Terminal Part Information
  • Terminal/Tray: 12064971/5
  • Core/Insulation Crimp: E/C
  • Release Tool/Test Probe: 12094429/J-35616-2A (GY)
