Engine Oil Pressure (EOP) Switch

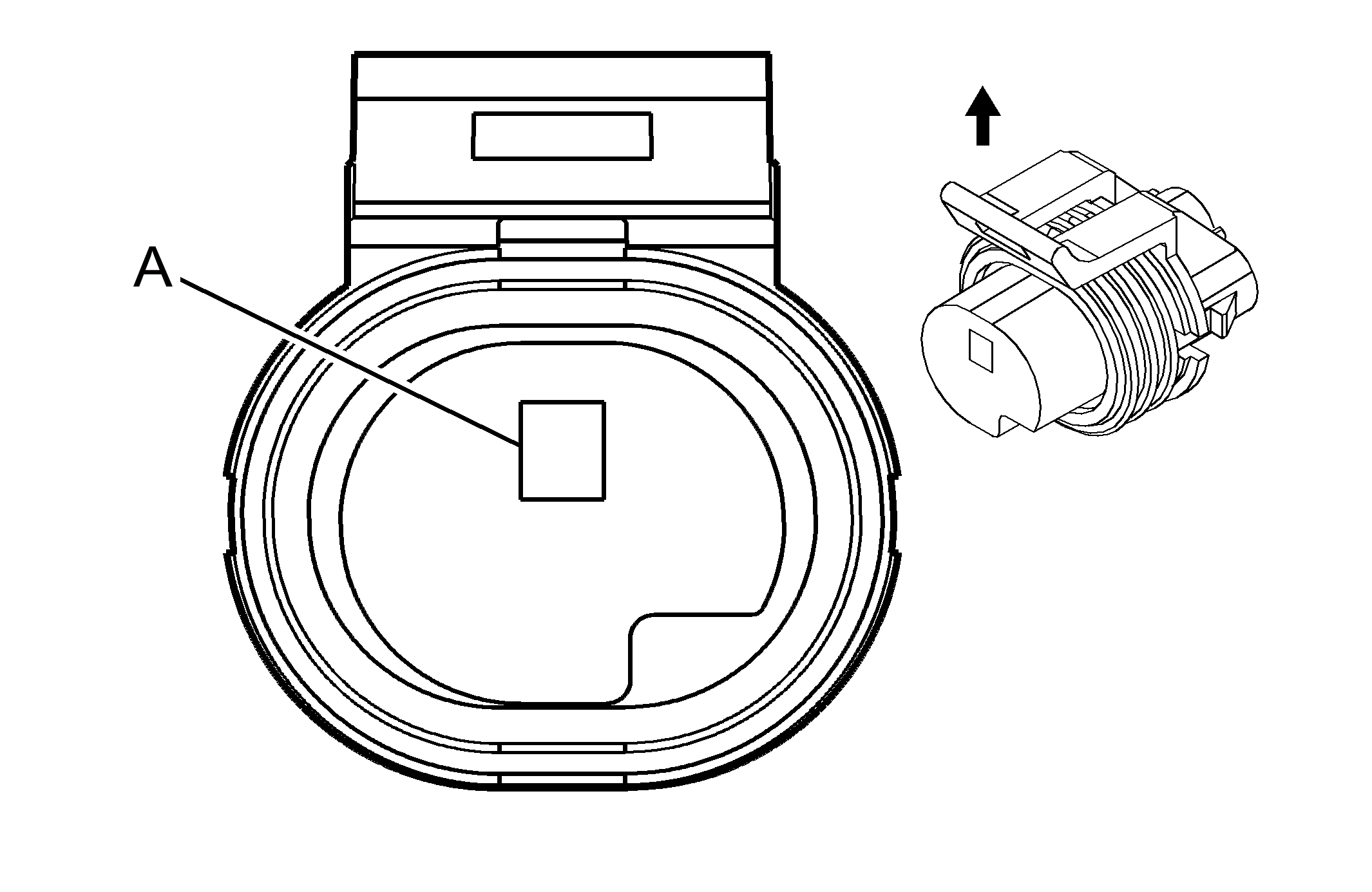

Fig 1: Engine Oil Pressure (EOP) Switch Connector End View
GM516595Courtesy of GENERAL MOTORS CORP.
Engine Oil Pressure (EOP) Switch

Pin Wire Circuit Function
A 0.35 TN/BK 231 Oil Pressure Switch Signal
Connector Part Information
  • OEM: 12065299
  • Service: 12085500
  • Description: 1-Way F Metri-Pack 150 Series Sealed (L-GY)
Terminal Part Information
  • Terminal/Tray: 12048074/2
  • Core/Insulation Crimp: E/1
  • Release Tool/Test Probe: 12094429/J-35616-2A (GY)
