Electronic Power Steering (EPS) Control Module X3

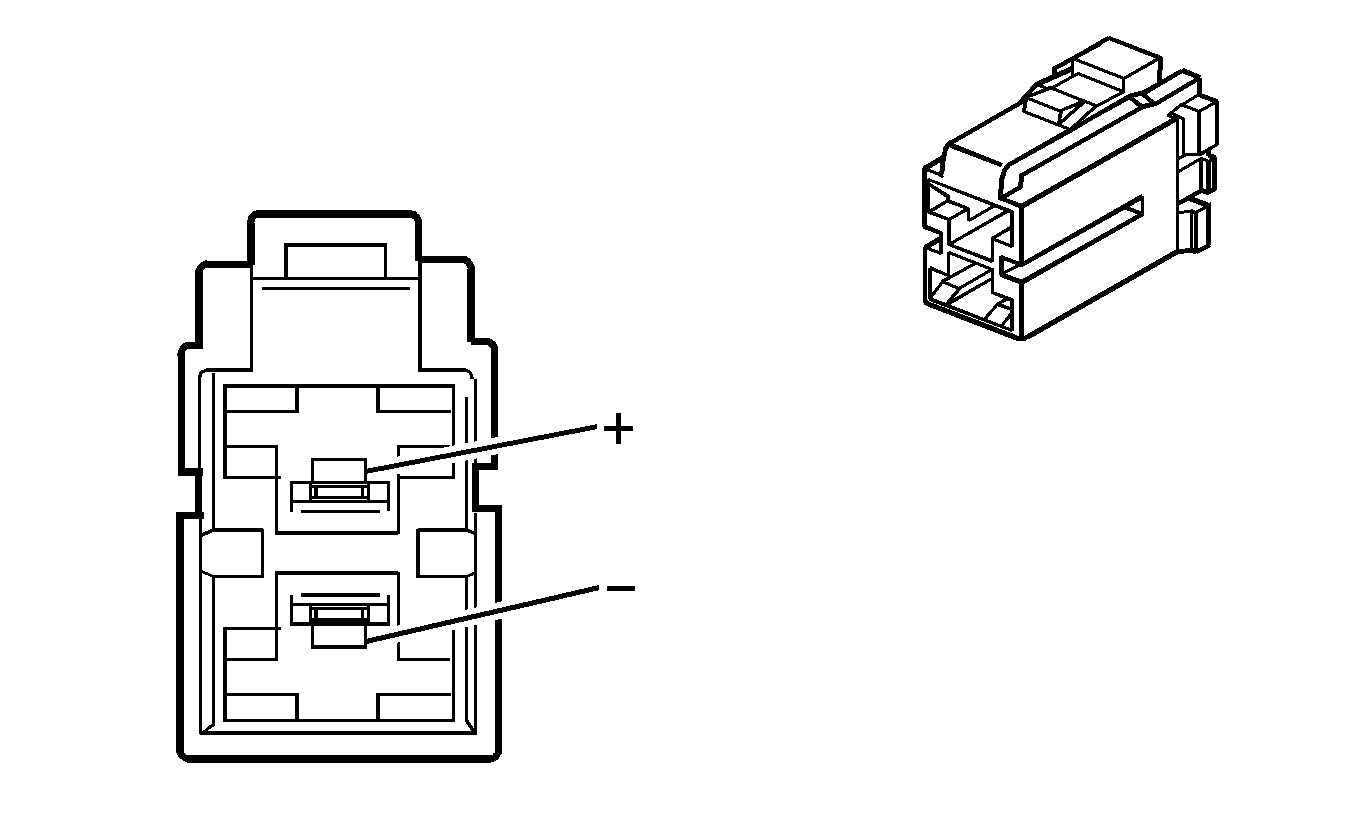

Fig 1: Electronic Power Steering (EPS) Control Module X3 Connector End View

Courtesy of GENERAL MOTORS CORP.

Electronic Power Steering (EPS) Control Module X3

Pin	Wire	Circuit	Function
+	0.35 RD	5	Motor Control
-	0.35 BK	5	Motor Control

Connector Part Information  OEM: 7123-4123-30 Service: 88952816 Description: 2-Way F (BU)

Terminal Part Information  Terminal/Tray: See Terminal Repair Kit Core/Insulation Crimp: See Terminal Repair Kit Release Tool/Test Probe: See Terminal Repair Kit
