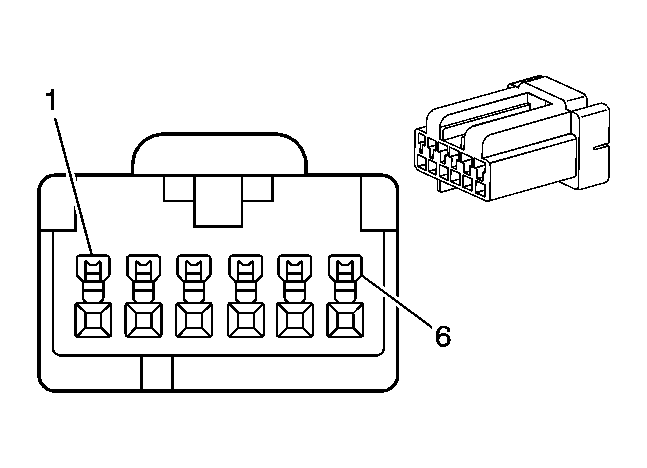

Electronic Power Steering (EPS) Control Module X2
Courtesy of GENERAL MOTORS CORP. Electronic Power Steering (EPS) Control Module X2
| Pin |
Wire |
Circuit |
Function |
| 1 |
0.5 TN/BK |
2500 |
High Speed GMLAN Serial Data Bus (+) |
| 2 |
0.5 TN |
2501 |
High Speed GMLAN Serial Data Bus (-) |
| 3 |
- |
- |
Not Used |
| 4 |
0.5 BN/WH |
2500 |
High Speed GMLAN Serial Data Bus (+) |
| 5 |
0.5 BN |
2501 |
High Speed GMLAN Serial Data Bus (-) |
| 6 |
0.5 PK |
1539 |
Ignition 1 Voltage |
Connector Part Information
- OEM: 15438391
- Service: 88988409
- Description: 6-Way F 040 (GY)
|
Terminal Part Information
- Terminal/Tray: 173681-2/17
- Core/Insulation Crimp: E/4
- Release Tool/Test Probe: 15315247/J-35616-16 (L-GN)
|
