Electronic Power Steering (EPS) Control Module X1

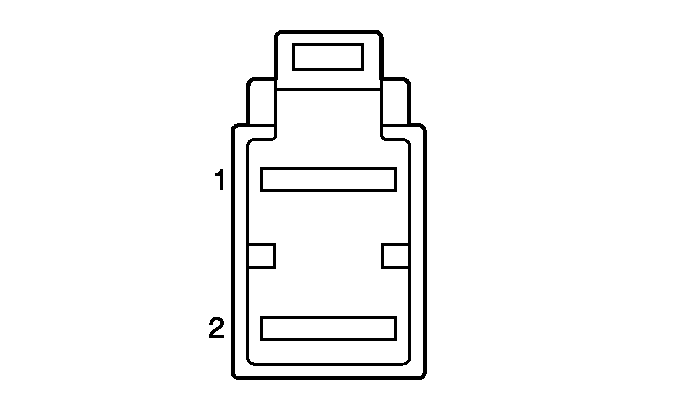

Fig 1: Electronic Power Steering (EPS) Control Module X1 Connector End View
GM823283Courtesy of GENERAL MOTORS CORP.
Electronic Power Steering (EPS) Control Module X1

Pin Wire Circuit Function
1 5 RD/BK 642 Battery Positive Voltage
2 5 BK 1150 Ground
Connector Part Information
  • OEM: 10721337
  • Service: 88952816
  • Description: 2-Way F 375 58 (BK)
Terminal Part Information
  • Terminal/Tray: 7116-3251/10
  • Core/Insulation Crimp: See Terminal Repair Kit
  • Release Tool/Test Probe: 12094430/J-35616-22 (RD)
