Crankshaft Position (CKP) Sensor

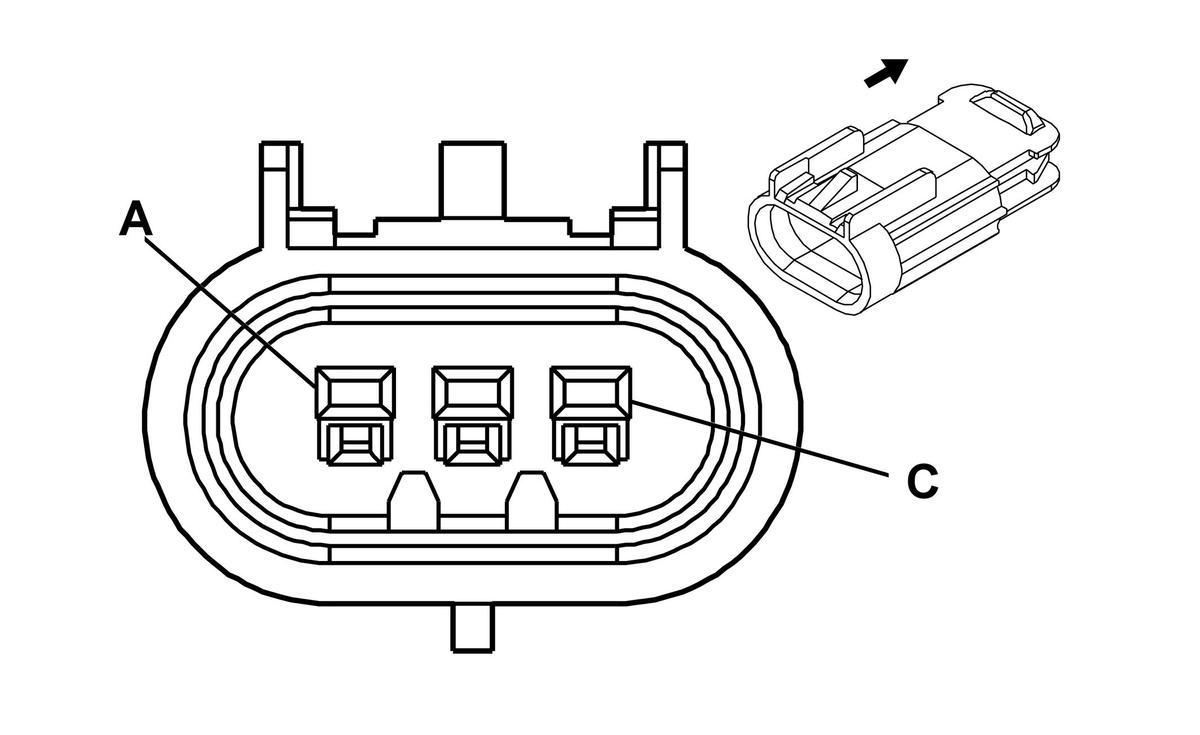

Fig 1: Crankshaft Position (CKP) Sensor Connector End View
GM632353Courtesy of GENERAL MOTORS CORP.
Crankshaft Position (CKP) Sensor

Pin Wire Circuit Function
1 0.5 L-GN 2867 5-Volt Reference
2 0.5 PU 574 Low Reference
3 0.5 YE 573 Crankshaft Position Sensor Signal
Connector Part Information
  • OEM: 15325738
  • Service: 88987978
  • Description: 3-Way F GT 150 Series Sealed (BK)
Terminal Part Information
  • Terminal/Tray: See Terminal Repair Kit
  • Core/Insulation Crimp: See Terminal Repair Kit
  • Release Tool/Test Probe: See Terminal Repair Kit
