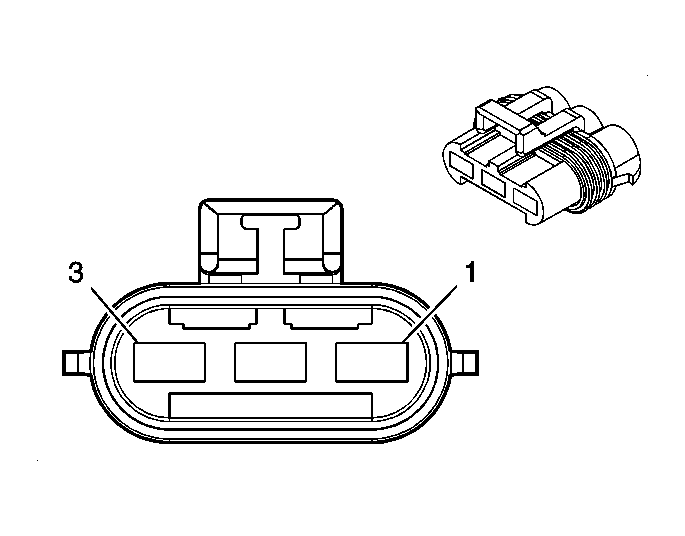

Cooling Fan Motor (L61/LE5)
Courtesy of GENERAL MOTORS CORP. Cooling Fan Motor (L61/LE5)
| Pin |
Wire |
Circuit |
Function |
| 1 |
3 L-BU |
409 |
Cooling Fan Motor Supply Voltage (L61) |
| 3 YE |
5358 |
Auxiliary Cooling Fan Motor Supply Voltage (LE5) |
| 2 |
3 GY |
532 |
Cooling Fan Motor Supply Voltage |
| 3 |
3 BK |
1050 |
Ground |
Connector Part Information
- OEM: 15451371
- Service: 88988310
- Description: 3-Way F Metri-Pack 480 Series Sealed (BK)
|
Terminal Part Information
- Terminal/Tray: 12191448/3
- Core/Insulation Crimp: F/3
- Release Tool/Test Probe: 15315247/J-35616-40 (BU)
|
