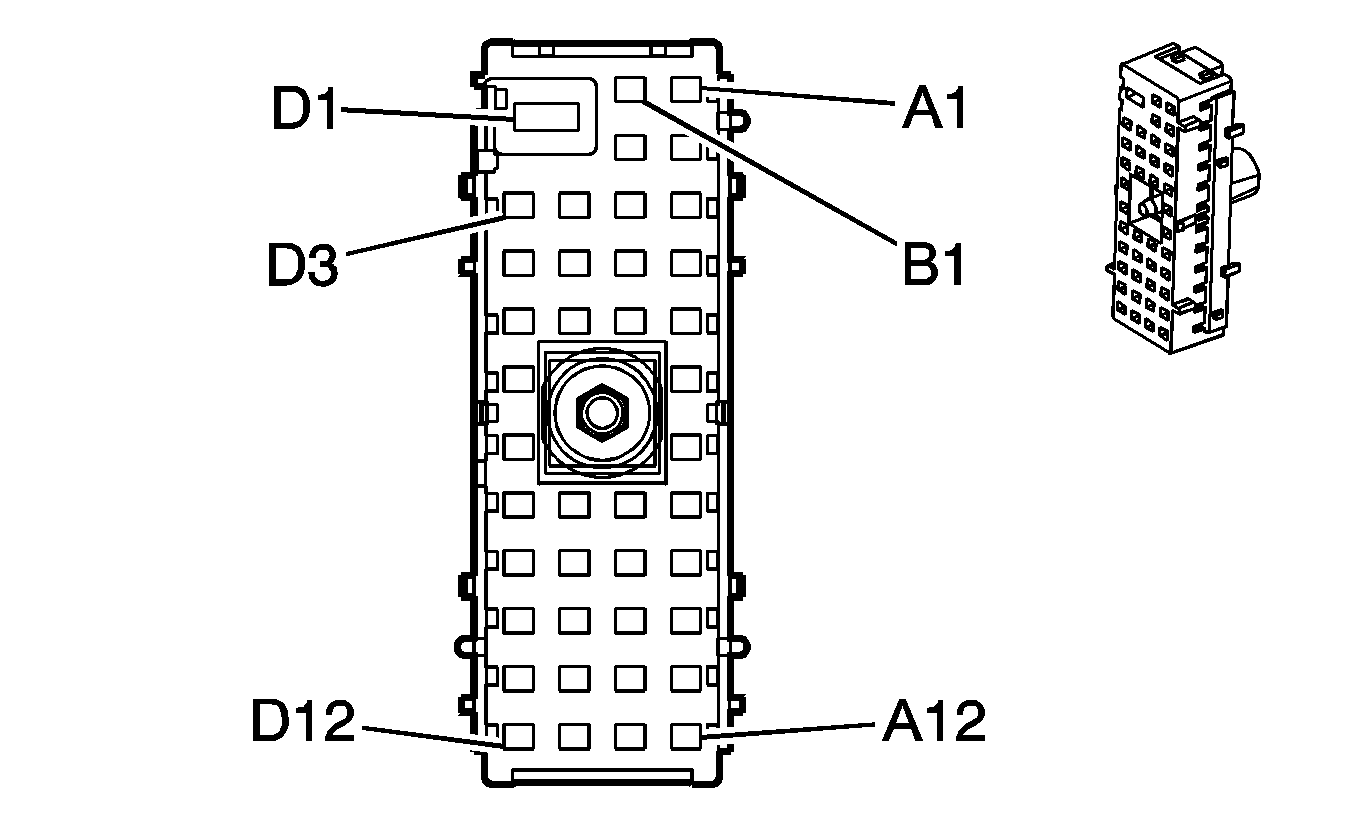

Body Control Module (BCM) X3
Courtesy of GENERAL MOTORS CORP. Body Control Module (BCM) X3
| Pin |
Wire |
Circuit |
Function |
| A1 |
0.5 TN |
294 |
Door Lock Actuator Unlock Control (AU3) |
| A2 |
0.5 TN |
294 |
Door Lock Actuator Unlock Control (AU3) (Sedan) |
| 0.5 TN |
294 |
Door Lock Actuator Unlock Control (AU3) (Sedan) |
| A3 |
0.5 D-BU/WH |
149 |
Courtesy Lamp Supply Voltage |
| A4 |
0.5 GY |
295 |
Door Lock Actuator Lock Control (AU3) (Driver) |
| 0.5 GY |
295 |
Door Lock Actuator Lock Control (AU3) (Passenger) |
| A5 |
0.5 GY |
295 |
Door Lock Actuator Lock Control (AU3) (Sedan) |
| 0.5 GY |
295 |
Door Lock Actuator Lock Control (AU3) (Sedan) |
| A6 |
- |
- |
Not Used |
| A7 |
0.35 BN |
9 |
Park Lamp Supply Voltage |
| A8 |
0.35 PK |
339 |
Run/Crank Ignition 1 Voltage (KA1) |
| A9 |
0.5 YE |
18 |
Left Rear Stop/Turn Lamp Supply Voltage |
| A10 |
0.5 GY |
157 |
Courtesy Lamp Control |
| A11 |
- |
- |
Not Used |
| A12 |
0.5 D-GN |
19 |
Right Rear Stop/Turn Lamp Supply Voltage |
| B1 |
0.5 TN |
694 |
Driver Door Lock Actuator Unlock Control |
| B2 |
- |
- |
Not Used |
| B3 |
0.35 RD/WH |
1240 |
Battery Positive Voltage (L61 or LE5) |
| 0.5 RD/WH |
1240 |
Battery Positive Voltage |
| B4 |
- |
- |
Not Used |
| B5 |
0.35 BN |
4 |
Accessory Voltage |
| 0.35 BN |
4 |
Accessory Voltage (MN5) |
| B6-B7 |
- |
- |
Not Available |
| B8-B11 |
- |
- |
Not Used |
| B12 |
0.35 GY |
8 |
Instrument Panel Lamp Supply Voltage (L61/LE5) |
| 0.35 GY |
8 |
Instrument Panel Lamp Supply Voltage (L61/LE5) |
| C1-C2 |
- |
- |
Not Available |
| C3 |
1 D-GN |
1301 |
Retained Accessory Power Fuse Supply Voltage |
| C4 |
- |
- |
Not Used |
| C5 |
3 D-GN |
801 |
Retained Accessory Power Fuse Supply Voltage |
| C6-C7 |
- |
- |
Not Available |
| C8-C11 |
- |
- |
Not Used |
| C12 |
0.35 OG |
228 |
Windshield Washer Pump Control |
| D1 |
5 RD/BK |
142 |
Battery Positive Voltage |
| D2 |
- |
- |
Not Available |
| D3 |
- |
- |
Not Used |
| D4 |
0.5 RD/WH |
840 |
Battery Positive Voltage |
| D5 |
3 D-GN |
801 |
Retained Accessory Power Fuse Supply Voltage |
| D6 |
3 PK |
739 |
Run/Crank Ignition 1 Voltage |
| D7 |
0.35 PK |
1339 |
Ignition 1 Voltage |
| 0.35 PK |
1339 |
Ignition 1 Voltage |
| D8-D9 |
- |
- |
Not Used |
| D10 |
3 RD/BK |
442 |
Battery Positive Voltage |
| D11 |
- |
- |
Not Used |
| D12 |
3 RD/WH |
242 |
Battery Positive Voltage |
Connector Part Information
- OEM: 15492675
- Service: 15404825
- Description: 41-Way F Metri-Pack 280, 800 Series (RD)
|
Terminal Part Information
- Terminal/Tray: See Terminal Repair Kit
- Core/Insulation Crimp: See Terminal Repair Kit
- Release Tool/Test Probe: See Terminal Repair Kit
|
