Blower Motor

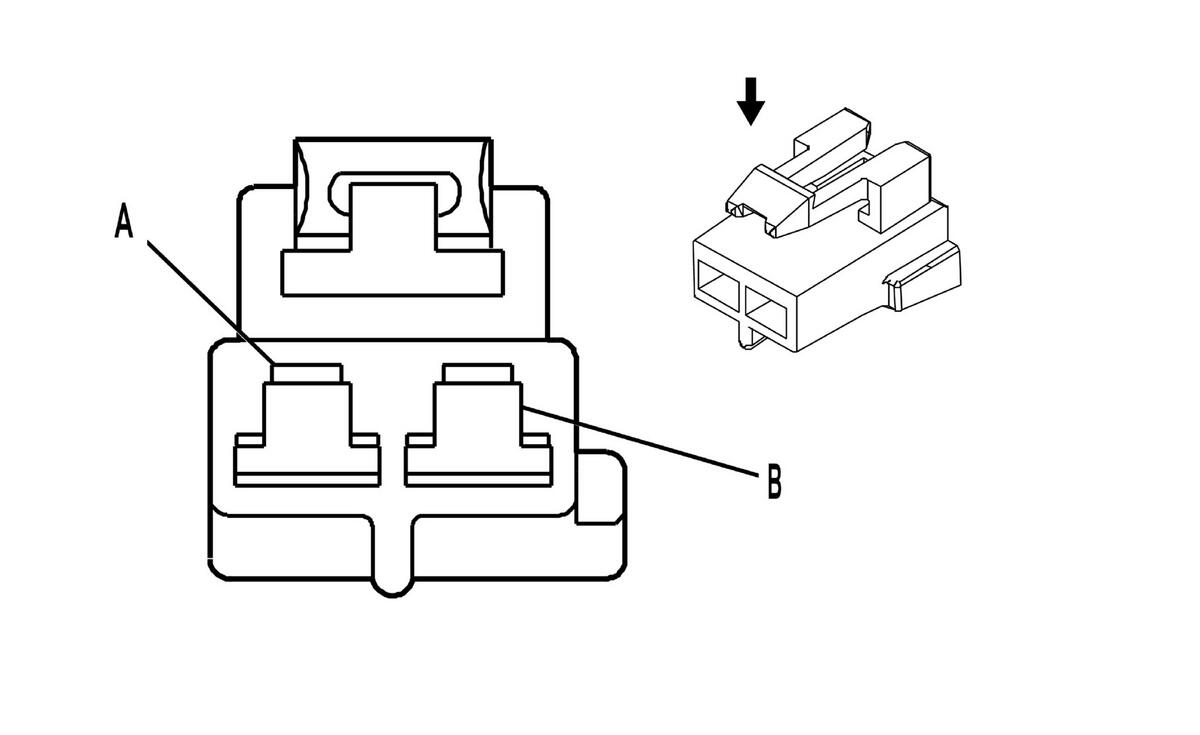

Fig 1: Blower Motor Connector End View
GM808706Courtesy of GENERAL MOTORS CORP.
Blower Motor

Pin Wire Circuit Function
A 3 OG 52 High Blower Motor Control
B 3 BN 141 Ignition 3 Voltage
Connector Part Information
  • OEM: 12064749
  • Service: 12101888
  • Description: 2-Way F Metri-Pack 480 Series (BK)
Terminal Part Information
  • Terminal/Tray: See Terminal Repair Kit
  • Core/Insulation Crimp: See Terminal Repair Kit
  • Release Tool/Test Probe: See Terminal Repair Kit
