Blower Motor Resistor

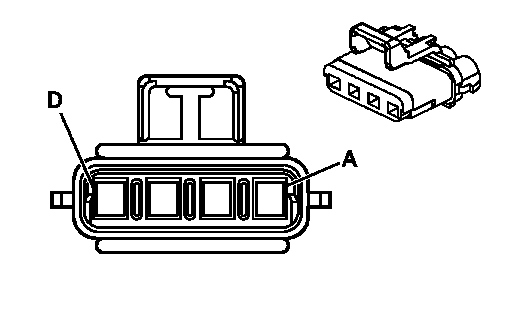

Fig 1: Blower Motor Resistor Assembly Connector End View
GM816184Courtesy of GENERAL MOTORS CORP.
Blower Motor Resistor

Pin Wire Circuit Function
A 2 TN 63 Blower Motor Medium 1 Control
B 2 L-BU 72 Medium 2 Blower Motor Control
C 3 OG 52 High Blower Motor Control
D 2 YE 60 Low Blower Motor Control
Connector Part Information
  • OEM: 12129566
  • Service: 15305940
  • Description: 4-Way F Metri-Pack 280 Series Sealed (GY)
Terminal Part Information
  • Terminal/Tray: See Terminal Repair Kit
  • Core/Insulation Crimp: See Terminal Repair Kit
  • Release Tool/Test Probe: See Terminal Repair Kit
