Automatic Transmission Input Shaft Speed (AT ISS) Sensor (MN5/MXO)

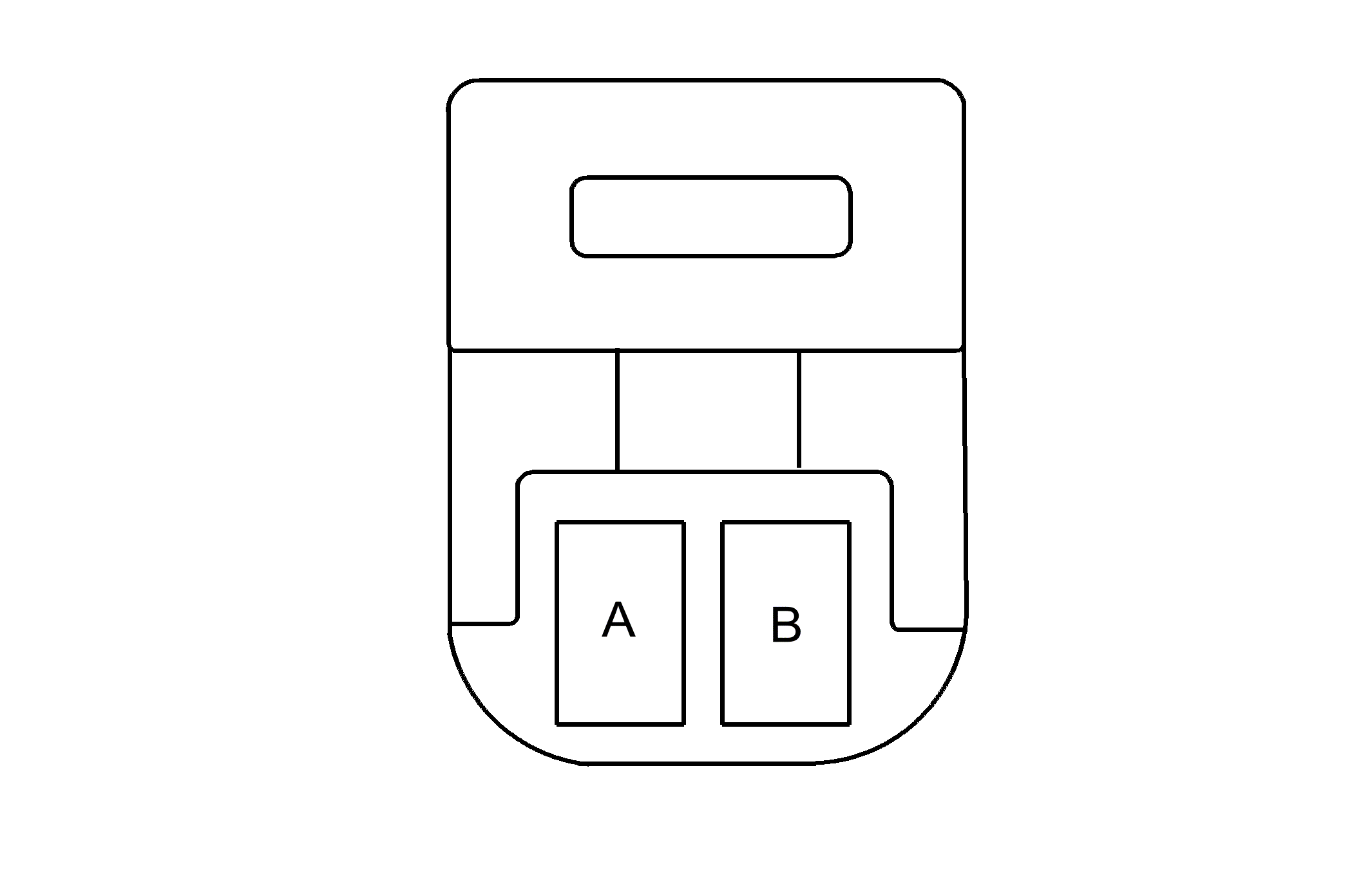

Courtesy of GENERAL MOTORS CORP. Automatic Transmission Input Shaft Speed (AT ISS) Sensor (MN5/MXO)
| Pin |
Wire |
Circuit |
Function |
| A |
0.5 BK |
1230 |
Input Speed Sensor (ISS) High Signal |
| B |
0.5 D-GN |
1231 |
ISS Low Signal |
Connector Part Information
- OEM: 15473843
- Service: Non-Serviceable
- Description: 2-Way F Metri-Pack 150.2 Series P2S (NA)
|
Terminal Part Information
- Terminal: Non-Serviceable
- Core/Insulation Crimp: Non-Serviceable
- Release Tool/Test Probe: Non-Serviceable
|
