Automatic Transmission Fluid Pressure (TFP) Manual Valve Position Switch (MN5/MXO)

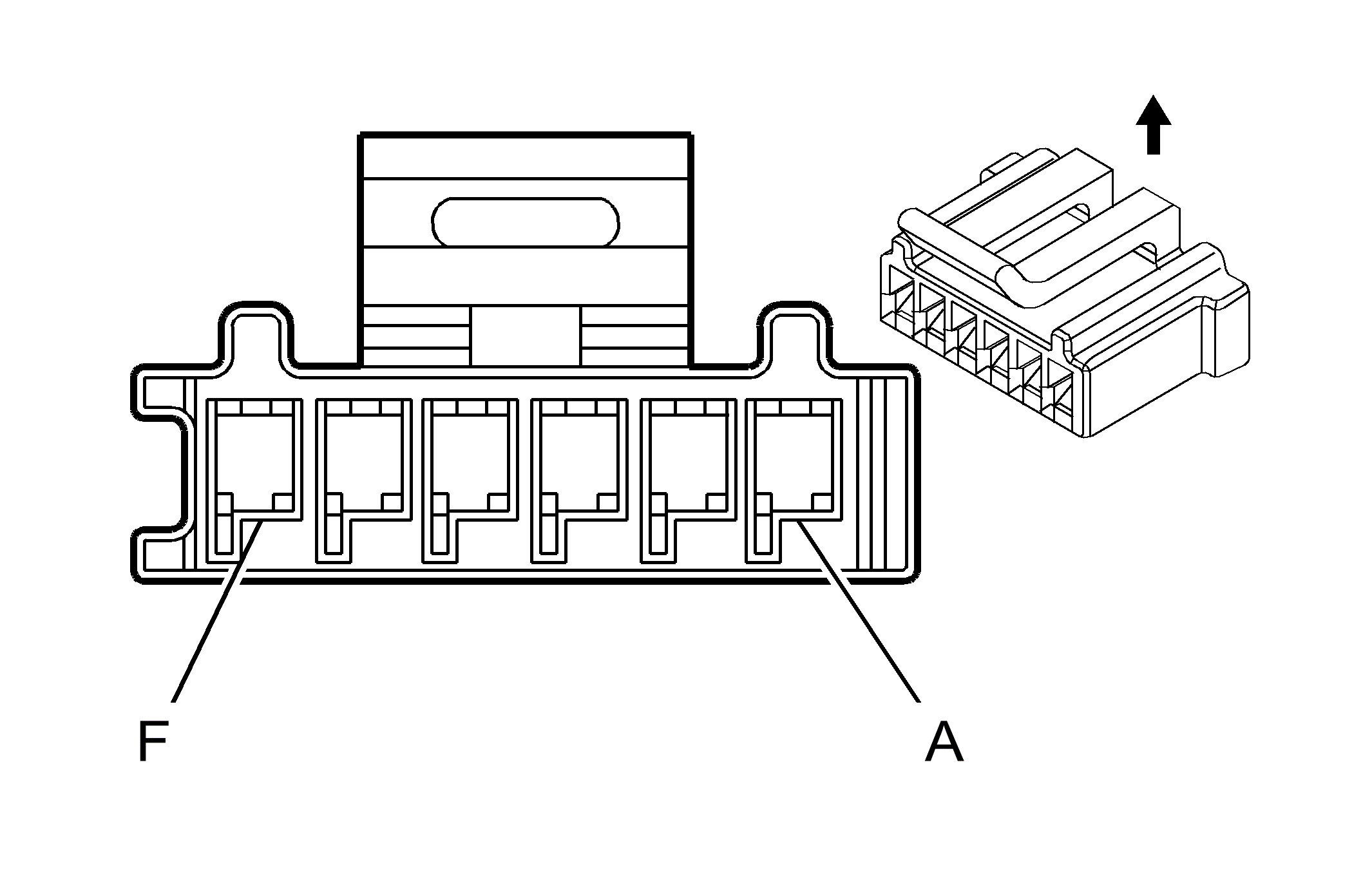

Fig 1: Automatic Transmission Fluid Pressure (TFP) Manual Valve Position Switch (MN5/MXO) Connector End View

Courtesy of GENERAL MOTORS CORP.

Automatic Transmission Fluid Pressure (TFP) Manual Valve Position Switch (MN5/MXO)

Pin	Wire	Circuit	Function
A	-	-	Not Used
B	0.35 D-BU	1225	TFP Switch Signal B
C	0.35 OG	1226	TFP Switch Signal C
D	0.35 WH	1804	Torque Converter Clutch Release Switch Signal
E	0.35 BN	1227	Transmission Fluid Temperature (TFT) Sensor Signal
F	0.35 GY	452	Low Reference

Connector Part Information  OEM: 15480749 Service: Non-Serviceable Description: 6-Way F Metri-Pack 150.2 Series P2S (GY)

Terminal Part Information  Terminal: Non-Serviceable Core/Insulation Crimp: Non-Serviceable Release Tool/Test Probe: Non-Serviceable
