Ambient Air Temperature Sensor

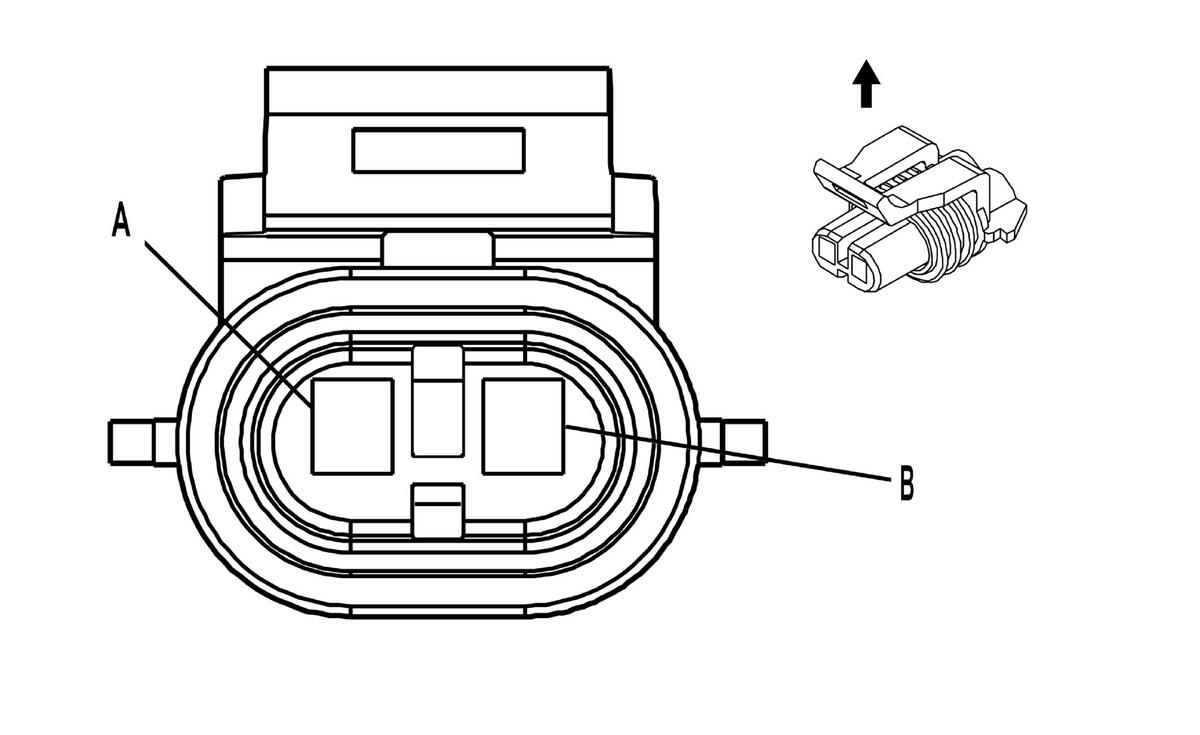

Fig 1: Ambient Air Temperature Sensor Connector End View
GM684793Courtesy of GENERAL MOTORS CORP.
Ambient Air Temperature Sensor

Pin Wire Circuit Function
A 0.35 D-GN/WH 636 Ambient Air Temperature Sensor Signal
B 0.35 YE/BK 61 Low Reference
Connector Part Information
  • OEM: 12052642
  • Service: 12101856
  • Description: 2-Way F Metri-Pack 150 Series Sealed (GN)
Terminal Part Information
  • Terminal/Tray: 12048074/2
  • Core/Insulation Crimp: E/1
  • Release Tool/Test Probe: 12094429/J-35616-2A (GY)
