Accelerator Pedal Position (APP) Sensor (LNF)

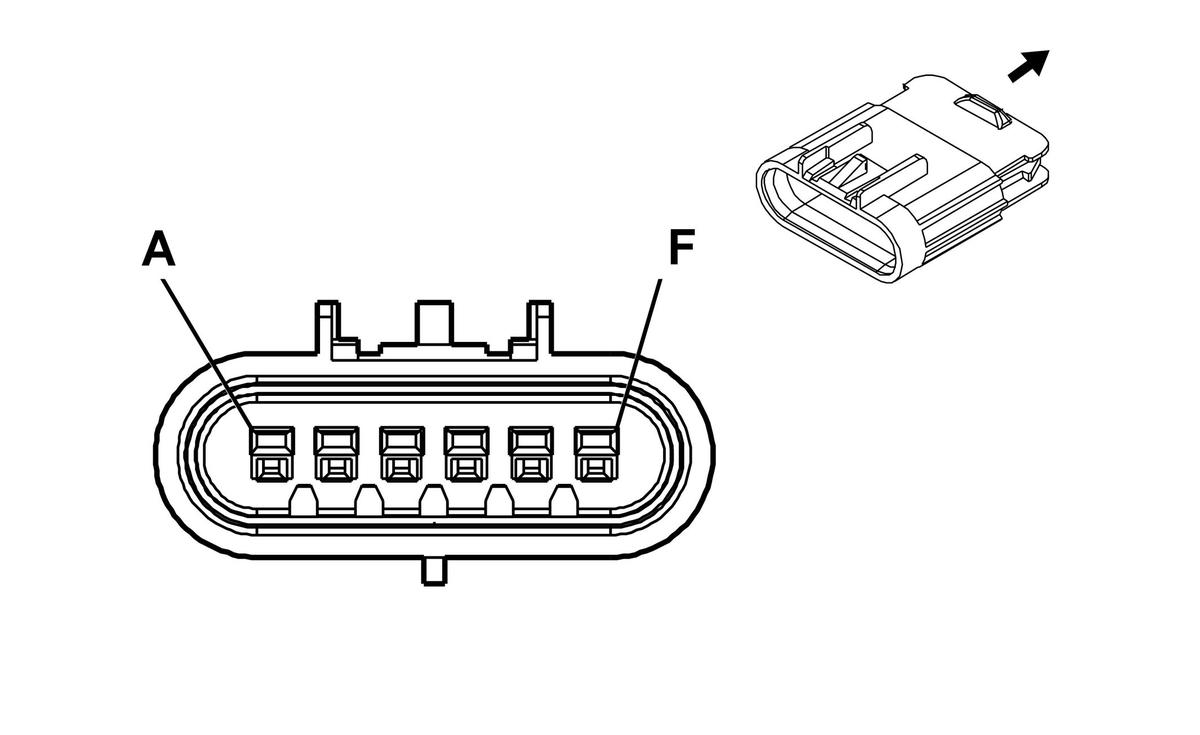

Courtesy of GENERAL MOTORS CORP. Accelerator Pedal Position (APP) Sensor (LNF)
| Pin |
Wire |
Circuit |
Function |
| A |
0.35 PU |
1272 |
5-Volt Reference - 2 |
| B |
0.35 L-BU |
1162 |
APP Sensor 2 Signal |
| C |
0.35 TN |
1274 |
Low Reference |
| D |
0.35 BN |
1271 |
Low Reference |
| E |
0.35 D-BU |
1161 |
APP Sensor 1 Signal |
| F |
0.35 WH/BK |
1164 |
5-Volt Reference - 1 |
Connector Part Information
- OEM: 15326833
- Service: See Catalog
- Description: 6-Way M GT 150 Series Sealed (BK)
|
Terminal Part Information
- Terminal/Tray: 15326269/19
- Core/Insulation Crimp: E/A
- Release Tool/Test Probe: 15315247/J-35616-3A (GY)
|
