Steering Wheel Secondary/Configurable Control Schematics

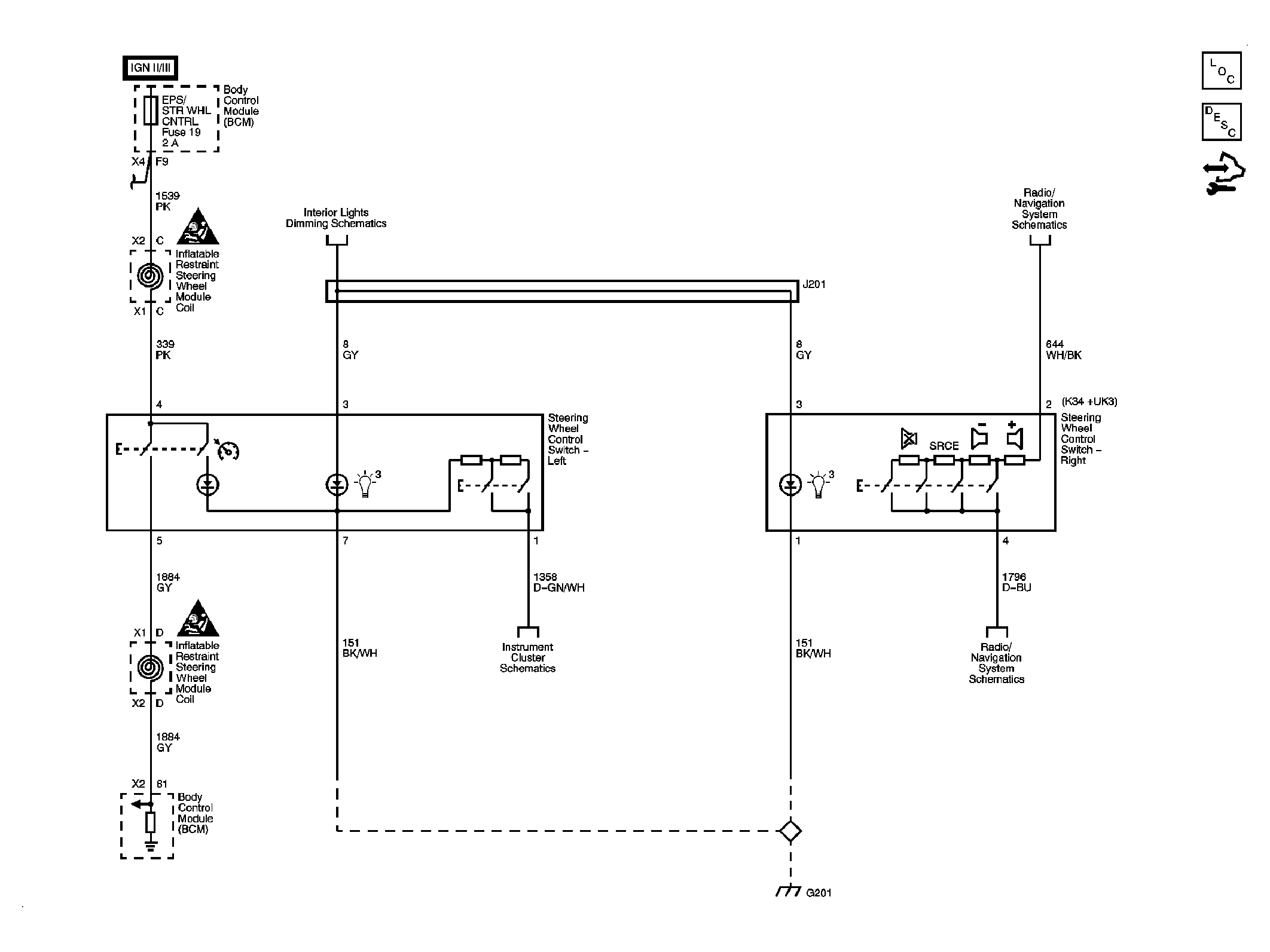

Fig 1: Steering Wheel Secondary/Configurable Control Circuit Schematic

GM1963500

Courtesy of GENERAL MOTORS CORP.
