Removal Procedure

    CAUTION: Refer to BATTERY DISCONNECT CAUTION .
  1. Disconnect the negative battery cable.
  2. Remove the knob.
  3. Remove the center instrument trim panel. Refer to Instrument Panel Center Trim Panel Replacement .
  4. Remove the instrument compartment. Refer to Instrument Panel Compartment Replacement .
  5. Remove the front floor console. Refer to Front Floor Console Trim Plate Replacement .

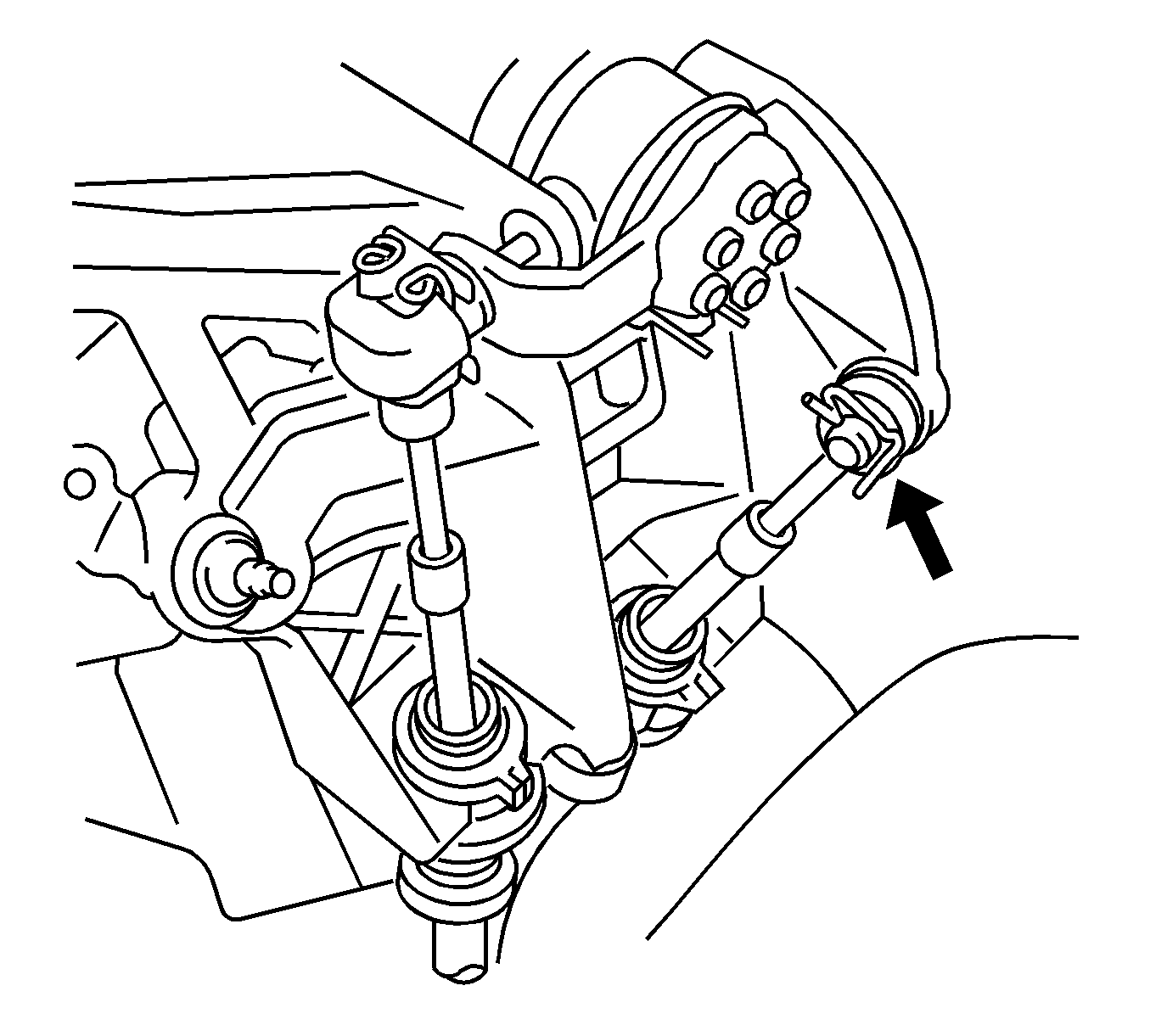

    6. Fig 1: Shift Lever Clip And Washer
    GM845218Courtesy of GENERAL MOTORS CORP.
  6. Remove the clip and washer, then disconnect the cable end from the shift lever assembly.

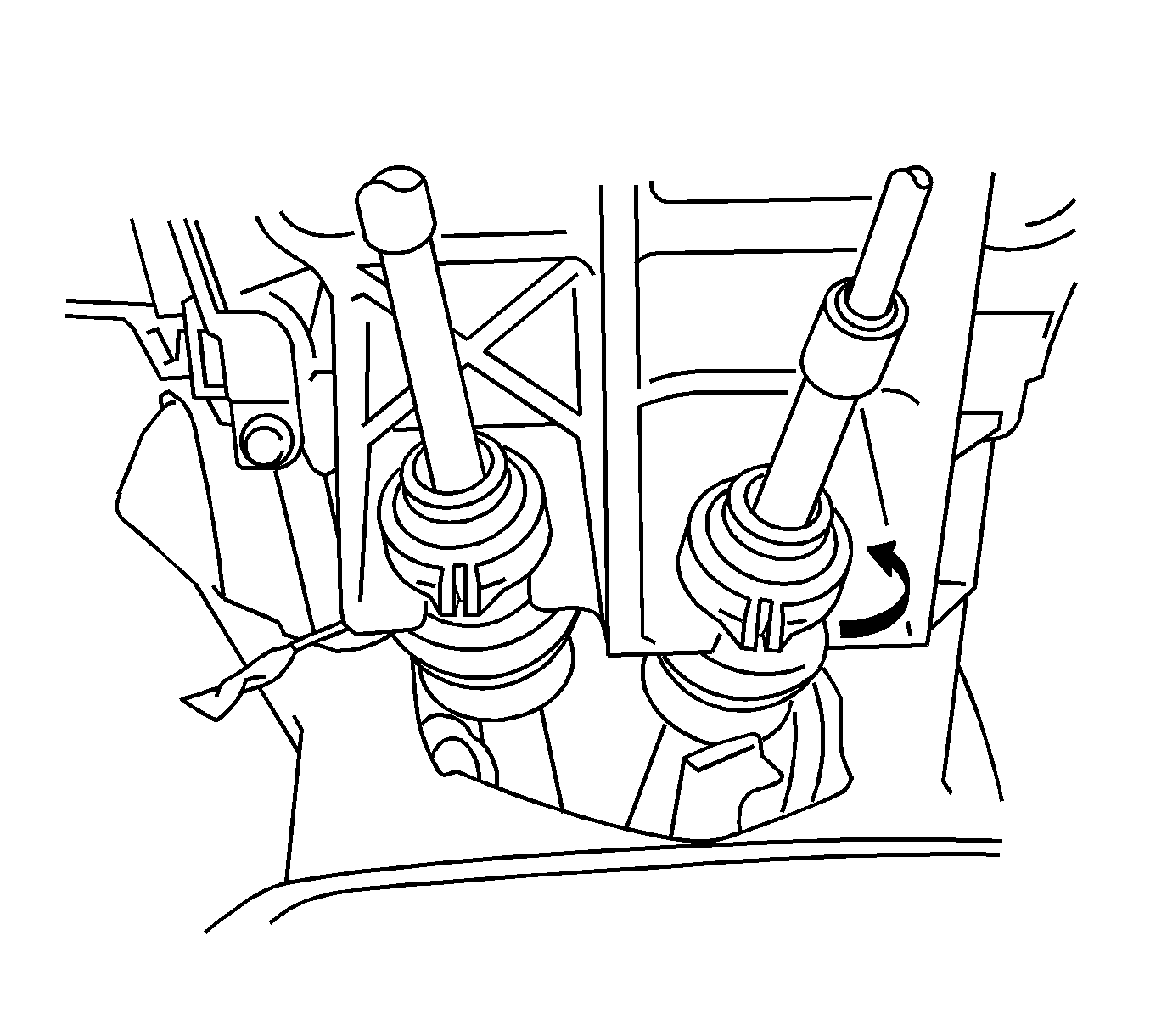

    7. Fig 2: Disconnect Shift Cable
    GM845220Courtesy of GENERAL MOTORS CORP.
  7. Turn the cable lock, then disconnect the shift cable from the shift lever assembly.
    8. Fig 3: Shift Lever Clip
    GM845223Courtesy of GENERAL MOTORS CORP.
  8. Remove the clip, then disconnect the cable end from the shift lever assembly.

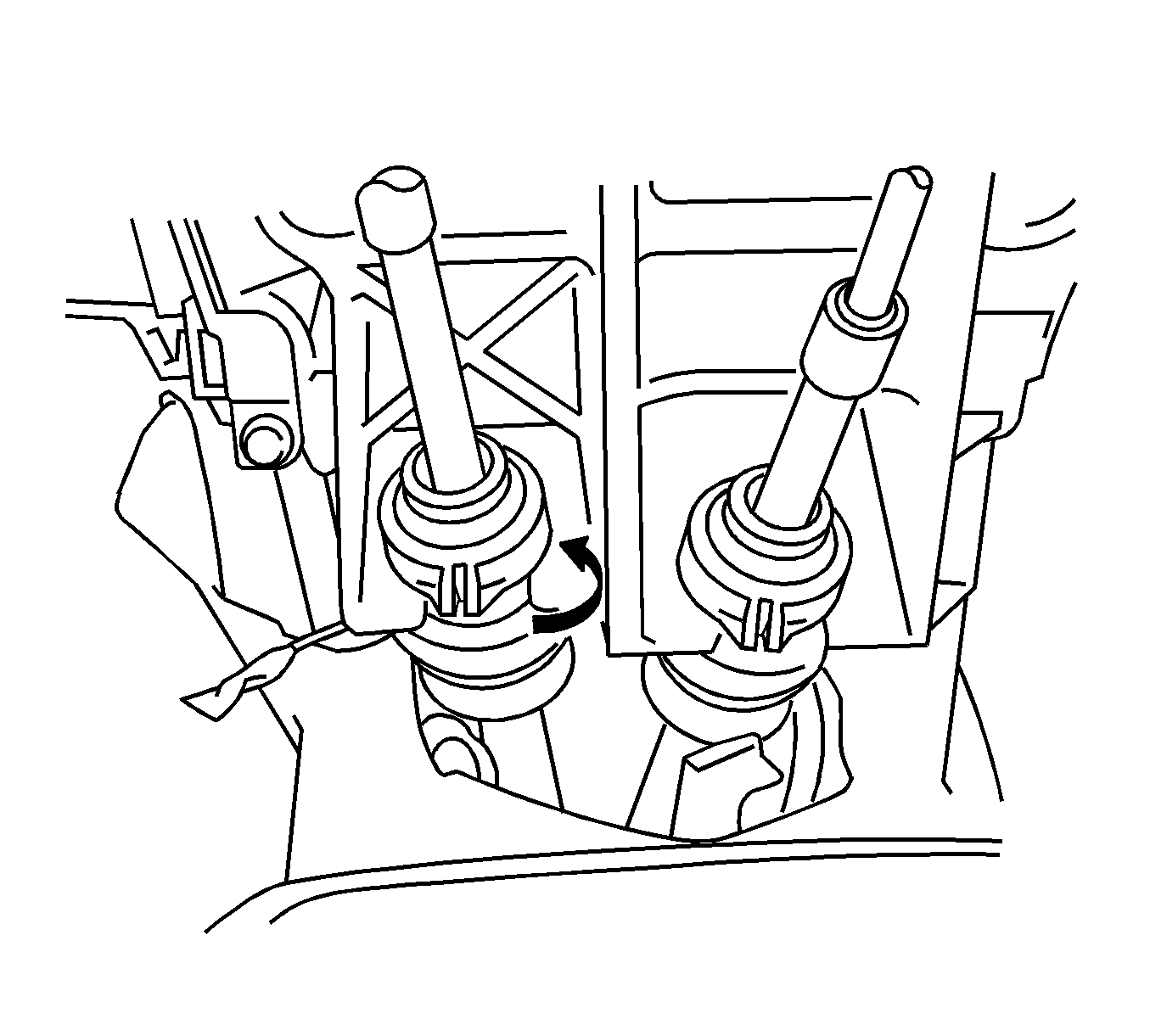

    9. Fig 4: Disconnect Select Cable
    GM845241Courtesy of GENERAL MOTORS CORP.
  9. Turn the lock, then disconnect the select cable from the shift lever assembly.
  10. Remove the 4 nuts, then the shift lever assembly.
