Removal Procedure

WARNING: This page is about a different car, the 2005 Pontiac Vibe. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the headliner. Refer to Headliner Replacement in Interior Trim.
    2. Fig 1: Disconnecting 2 Antenna Connectors
    GM1528403Courtesy of GENERAL MOTORS CORP.
  2. Disconnect 2 antenna connectors (1).
    3. Fig 2: Disconnecting 1 Antenna Connector
    GM1528404Courtesy of GENERAL MOTORS CORP.
  3. Disconnect 1 antenna connector (1).
    4. Fig 3: Removing Antenna Harness From Antenna Harness Retaining Clips
    GM1528406Courtesy of GENERAL MOTORS CORP.
  4. Remove the antenna harness from the antenna harness retaining clips (1).
    5. Fig 4: Removing Antenna Mounting Bracket Bolt And Mounting Bracket
    GM1528409Courtesy of GENERAL MOTORS CORP.
  5. Remove the antenna mounting bracket bolt and the mounting bracket.

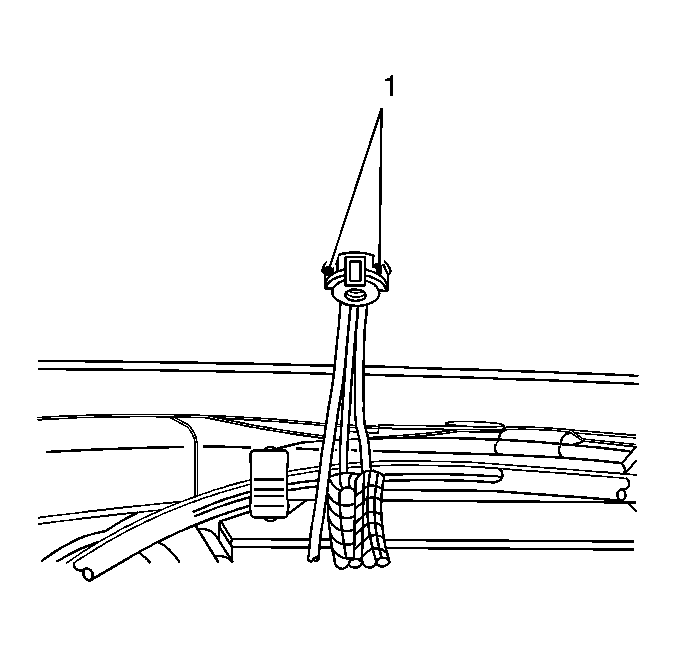

    6. Fig 5: Depressing Antenna Locking Tabs
    GM1528410Courtesy of GENERAL MOTORS CORP.
  6. Depress the antenna locking tabs (1) and remove the antenna.
