Installation Procedure

    Fig 1: Ignition Key Alarm Switch, Lock Cylinder, Ignition Switch, Cylinder Case, Case Clamp And Bolts
    GM820048Courtesy of GENERAL MOTORS CORP.
  1. Install the ignition lock cylinder case (6) and the case clamp (5) to the steering column.
  2. Install 2 NEW tapered head bolts (3,4). Tighten the bolts until the bolt heads break off.
  3. Install the ignition key alarm switch (1) to the case.
  4. Install the ignition switch. Refer to Ignition and Start Switch Replacement .
  5. Install the ignition lock cylinder. Refer to Ignition Lock Cylinder Replacement .

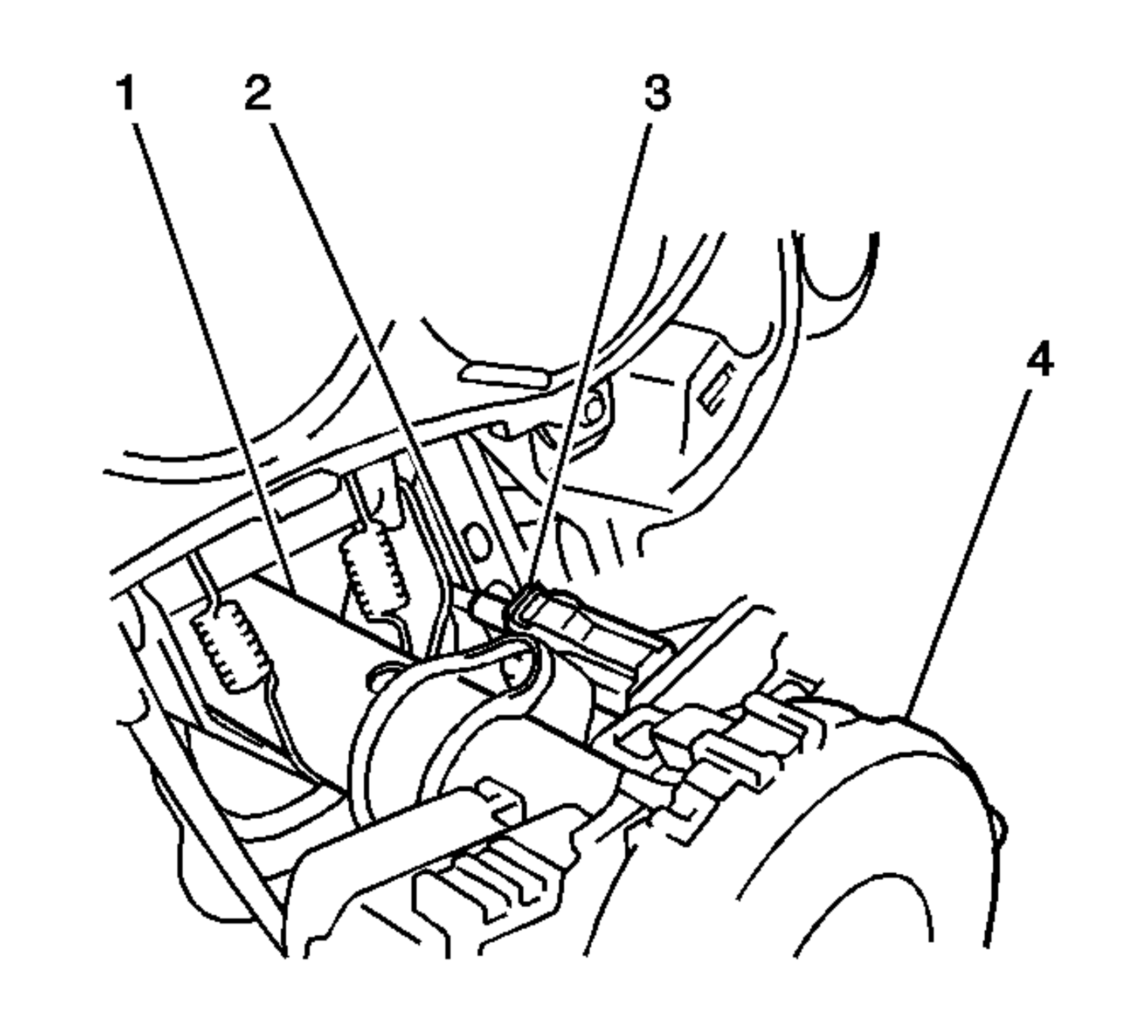

    6. Fig 2: Release Button And Park Lock Cable
    GM820160Courtesy of GENERAL MOTORS CORP.
  6. If the vehicle has an automatic transmission, complete the following steps:
    1. Insert the key into the cylinder.
    2. Turn the key to the ACC position.
    3. Insert the park lock cable (2). Verify the release button (3) engages.
    4. Verify the key will not rotate to the LOCK position unless the shifter is in the PARK position.
    5. Remove the key from the cylinder.
  7. Install the trim covers to the steering column. Refer to Steering Column Trim Covers Replacement .
  8. Enable the SIR system. Refer to SIR Disabling and Enabling .
